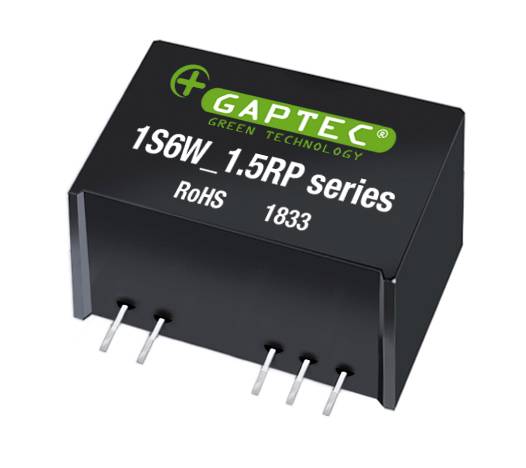

Image similar
Gaptec 1S6W_2412S1.5RP DC/DC converter 83 mA 1 W Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter
- Type
1S6W_1.5RP
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- Max. output current
83 mA
- Output current (max.) - rounded
83 mA
1 W
- Insulation voltage
1.5 kV
- Enclosure
SIP 6 (4-pin)
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 17.0 x 7.6 x 11.0 mm
- Height
11.0 mm
- Length
17.0 mm
- Width
7.6 mm
- RoHS-compliant
Yes
- Output voltage (max.)
12 V DC
- Weight
3.0 g
- Content
1 pc(s)
- Efficiency
80 %
- Max. operating temperature (derating)
85 °C
- Min. operating temperature (derating)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3353127 Gaptec 1S6W_2412S1.5RP DC/DC converter 83 mA 1 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3353127 Gaptec 1S6W_2412S1.5RP DC/DC converter 83 mA 1 W Content 1 pc(s)
Description
Isolated DC-DC converter module 1 output 12V 83mA 18V - 36V input
