Image similar

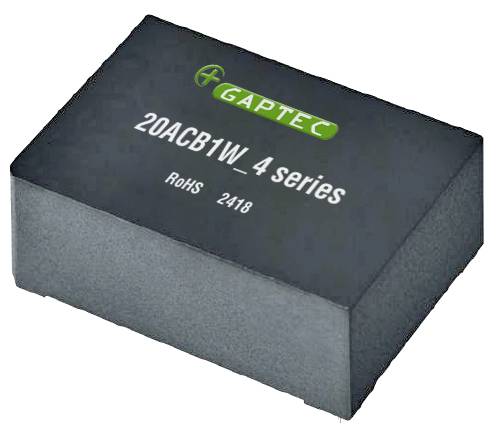

Gaptec 20ACB1W_12S4 AC/DC converter 12 V DC 1660 mA 20 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
AC/DC converter output: 12V 90-528Vac, 100-745Vdc
- Output 12 V DC / 1660 mA
- Power 20 W
Technical specifications
- Product type
AC/DC converter
- Input voltage (max.)
528 V AC
745 V DC
- Max. output current
1660 mA
- Output current (max.) - rounded
1.66 A
- Min. input voltage
90 V AC
100 V DC
- Dim
(L x W x H) 70.0 x 48.0 x 23.5 mm
- Output voltage (max.)
12 V DC
20 W
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-40 °C
- Weight
41 g
- Width
48.0 mm
- Height
23.5 mm
- Length
70.0 mm
- Type
20ACB1W_4
- Enclosure
DIP 8 (5-pin)
- Efficiency
83 %
- Insulation voltage
4 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3354337 Gaptec 20ACB1W_12S4 AC/DC converter 12 V DC 1660 mA 20 W
User & Safety Instructions
User & Safety Instructions 3354337 Gaptec 20ACB1W_12S4 AC/DC converter 12 V DC 1660 mA 20 W
Description
AC/DC converter output: 12V 90-528Vac, 100-745Vdc
