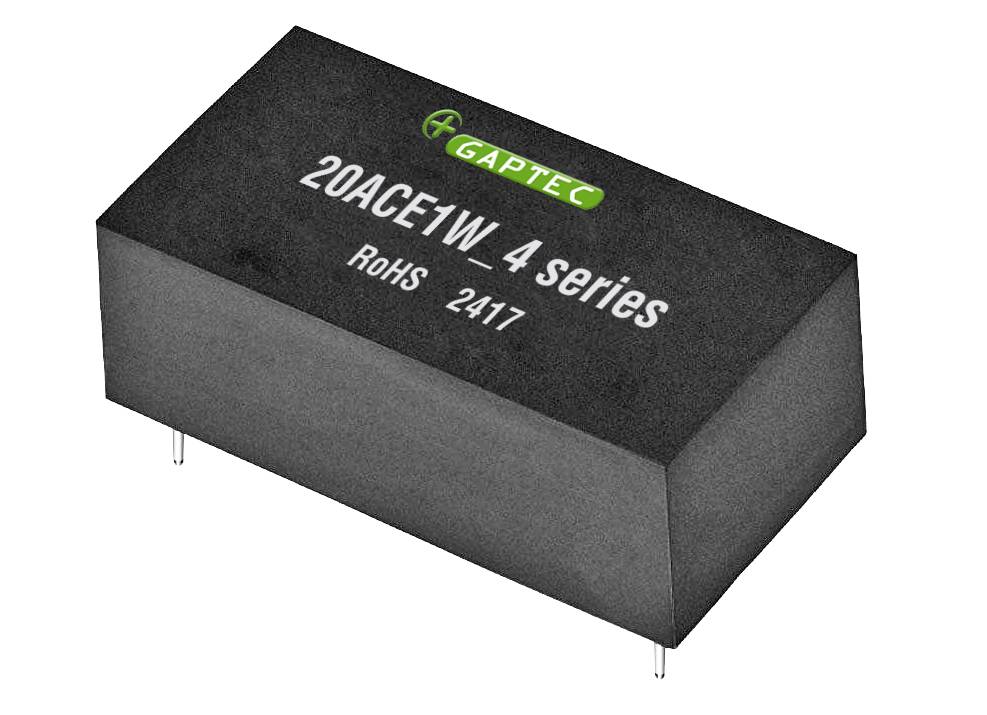

Image similar
Gaptec 20ACE1W_09S4 AC/DC converter 9 V DC 2222 mA 20 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
AC/DC converter output: 9V 85-305VAC, 120-430VDC
- Output 9 V DC / 2222 mA
- Power 20 W
Technical specifications
- Product type
AC/DC converter
- Input voltage (max.)
305 V AC
430 V DC
- Max. output current
2222 mA
- Output current (max.) - rounded
2.22 A
- Min. input voltage
85 V AC
120 V DC
- Dim
(L x W x H) 52.4 x 27.2 x 24.0 mm
- Output voltage (max.)
9 V DC
20 W
- Operating temperature (max.)
75 °C
- Operating temperature (min.)
-40 °C
- Weight
50 g
- Width
27.2 mm
- Height
24.0 mm
- Length
52.4 mm
- Type
20ACE1W_4
- Enclosure
DIP-6 (4-pin)
- Efficiency
84 %
- Insulation voltage
4 kV
Documents & Downloads
Datasheet
Datasheet 3354341 Gaptec 20ACE1W_09S4 AC/DC converter 9 V DC 2222 mA 20 W
User & Safety Instructions
User & Safety Instructions 3354341 Gaptec 20ACE1W_09S4 AC/DC converter 9 V DC 2222 mA 20 W
Description
AC/DC converter output: 9V 85-305VAC, 120-430VDC
