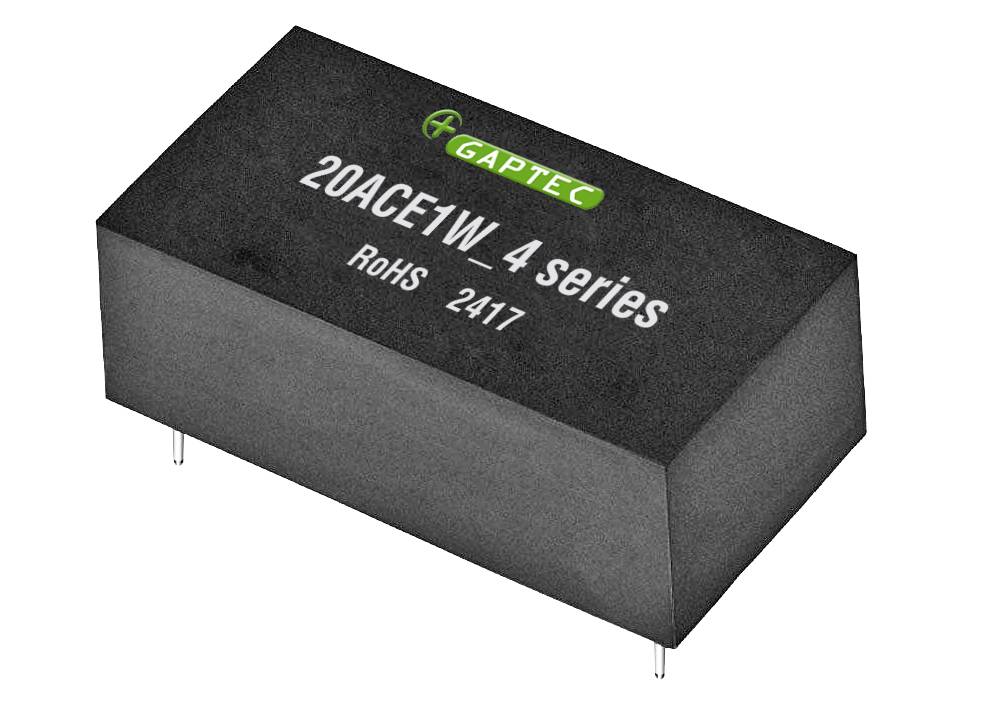

Image similar
Gaptec 20ACE1W_12S4 AC/DC converter 12 V DC 1666 mA 20 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
AC/DC converter output: 12V 85-305VAC, 120-430VDC
- Output 12 V DC / 1666 mA
- Power 20 W
Technical specifications
- Product type
AC/DC converter
- Input voltage (max.)
305 V AC
430 V DC
- Max. output current
1666 mA
- Output current (max.) - rounded
1.67 A
- Min. input voltage
85 V AC
120 V DC
- Dim
(L x W x H) 62.0 x 45.0 x 22.5 mm
- Output voltage (max.)
12 V DC
20 W
- Operating temperature (max.)
75 °C
- Operating temperature (min.)
-40 °C
- Weight
50 g
- Width
45.0 mm
- Height
22.5 mm
- Length
62.0 mm
- Type
20ACE1W_4
- Enclosure
DIP 8 (4-pin)
- Efficiency
86 %
- Insulation voltage
4 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3354342 Gaptec 20ACE1W_12S4 AC/DC converter 12 V DC 1666 mA 20 W
User & Safety Instructions
User & Safety Instructions 3354342 Gaptec 20ACE1W_12S4 AC/DC converter 12 V DC 1666 mA 20 W
Description
AC/DC converter output: 12V 85-305VAC, 120-430VDC
