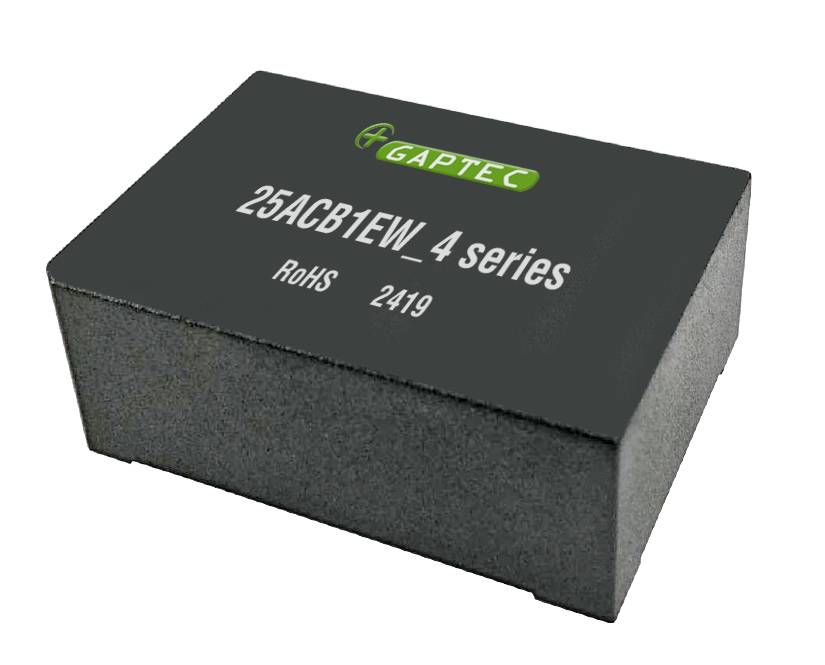

Image similar
Gaptec 25ACB1EW_05S4 AC/DC converter 5 V DC 4200 mA 25 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
AC/DC converter output: 5V 85-305VAC, 120-430VDC
- Output 5 V DC / 4200 mA
- Power 25 W
Technical specifications
- Product type
AC/DC converter
- Input voltage (max.)
305 V AC
430 V DC
- Max. output current
4200 mA
- Output current (max.) - rounded
4.2 A
- Min. input voltage
90 V AC
120 V DC
- Dim
(L x W x H) 70.0 x 48.0 x 23.5 mm
- Output voltage (max.)
5 V DC
25 W
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-40 °C
- Weight
128 g
- Width
48.0 mm
- Height
23.5 mm
- Length
70.0 mm
- Type
25ACB1EW_4
- Enclosure
DIP 9 (5-pin)
- Efficiency
78 %
- Insulation voltage
4 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3354396 Gaptec 25ACB1EW_05S4 AC/DC converter 5 V DC 4200 mA 25 W
User & Safety Instructions
User & Safety Instructions 3354396 Gaptec 25ACB1EW_05S4 AC/DC converter 5 V DC 4200 mA 25 W
Description
AC/DC converter output: 5V 85-305VAC, 120-430VDC
