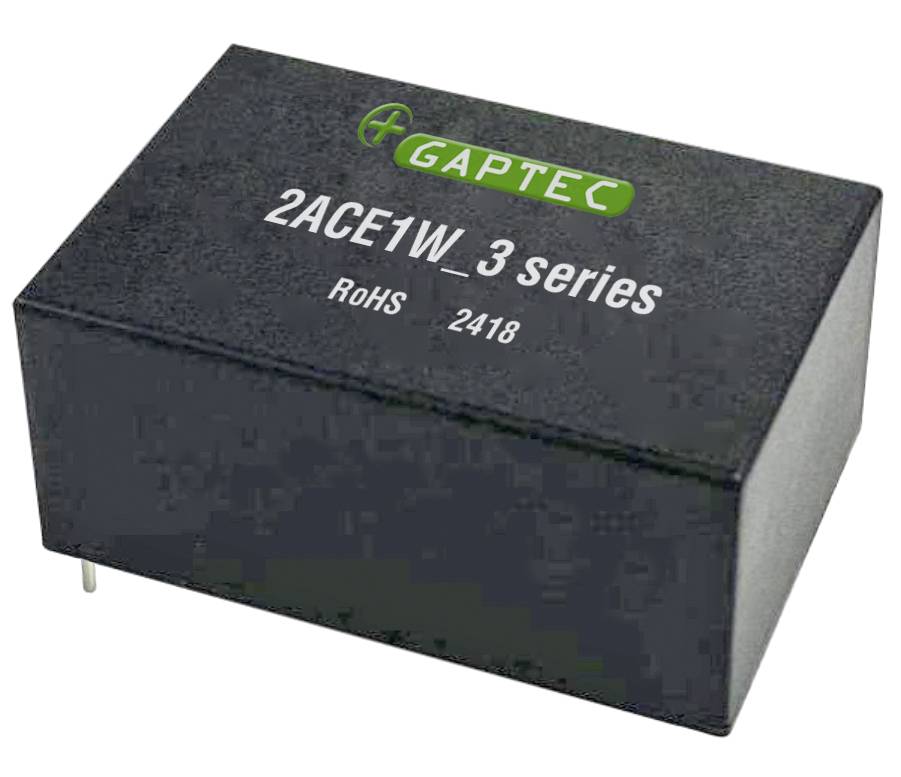

Image similar
Gaptec 2ACE1W_12S3 AC/DC converter 12 V DC 167 mA 2 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
AC/DC converter output: 12V 85-305VAC, 120-430VDC
- Output 12 V DC / 167 mA
- Power 2 W
Technical specifications
- Product type
AC/DC converter
- Input voltage (max.)
305 V AC
430 V DC
- Max. output current
167 mA
- Output current (max.) - rounded
167 mA
- Min. input voltage
85 V AC
120 V DC
- Dim
(L x W x H) 33.8 x 22.2 x 15.3 mm
- Output voltage (max.)
12 V DC
2 W
- Operating temperature (max.)
75 °C
- Operating temperature (min.)
-40 °C
- Weight
30 g
- Width
22.2 mm
- Height
15.3 mm
- Length
33.8 mm
- Type
2ACE1W_3
- Enclosure
DIP 4
- Efficiency
75 %
- Insulation voltage
3 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3354402 Gaptec 2ACE1W_12S3 AC/DC converter 12 V DC 167 mA 2 W
User & Safety Instructions
User & Safety Instructions 3354402 Gaptec 2ACE1W_12S3 AC/DC converter 12 V DC 167 mA 2 W
Description
AC/DC converter output: 12V 85-305VAC, 120-430VDC
