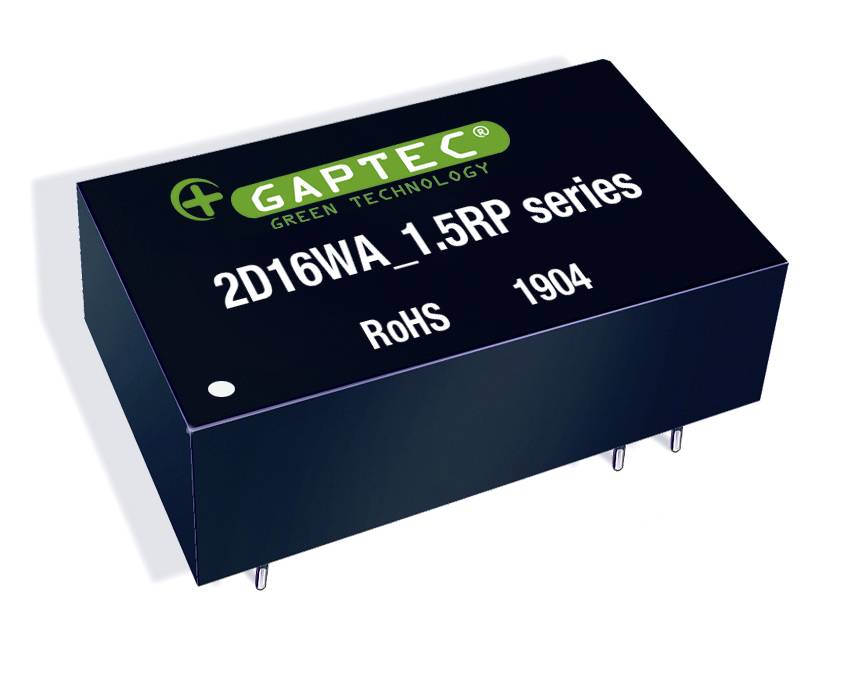

Image similar
Gaptec 2D16WA_1205D1.5RP DC/DC converter 200 mA 2 W Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter
- Type
2D16WA_1.5RP
- Min. input voltage
9 V DC
- Input voltage (max.)
18 V DC
- Max. output current
200 mA
- Output current (max.) - rounded
200 mA
2 W
- Insulation voltage
1.5 kV
- Enclosure
DIP 16 (6-pin)
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 24.1 x 14.4 x 8.3 mm
- Height
8.3 mm
- Length
24.1 mm
- Width
14.4 mm
- RoHS-compliant
Yes
- Output voltage (max.)
5 V DC
- Weight
5.2 g
- Content
1 pc(s)
- Efficiency
75 %
- Max. operating temperature (derating)
85 °C
- Min. operating temperature (derating)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3354414 Gaptec 2D16WA_1205D1.5RP DC/DC converter 200 mA 2 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3354414 Gaptec 2D16WA_1205D1.5RP DC/DC converter 200 mA 2 W Content 1 pc(s)
Description
Isolated DC-DC converter module 2 output 5V 200mA, 200mA 9V - 18V input
