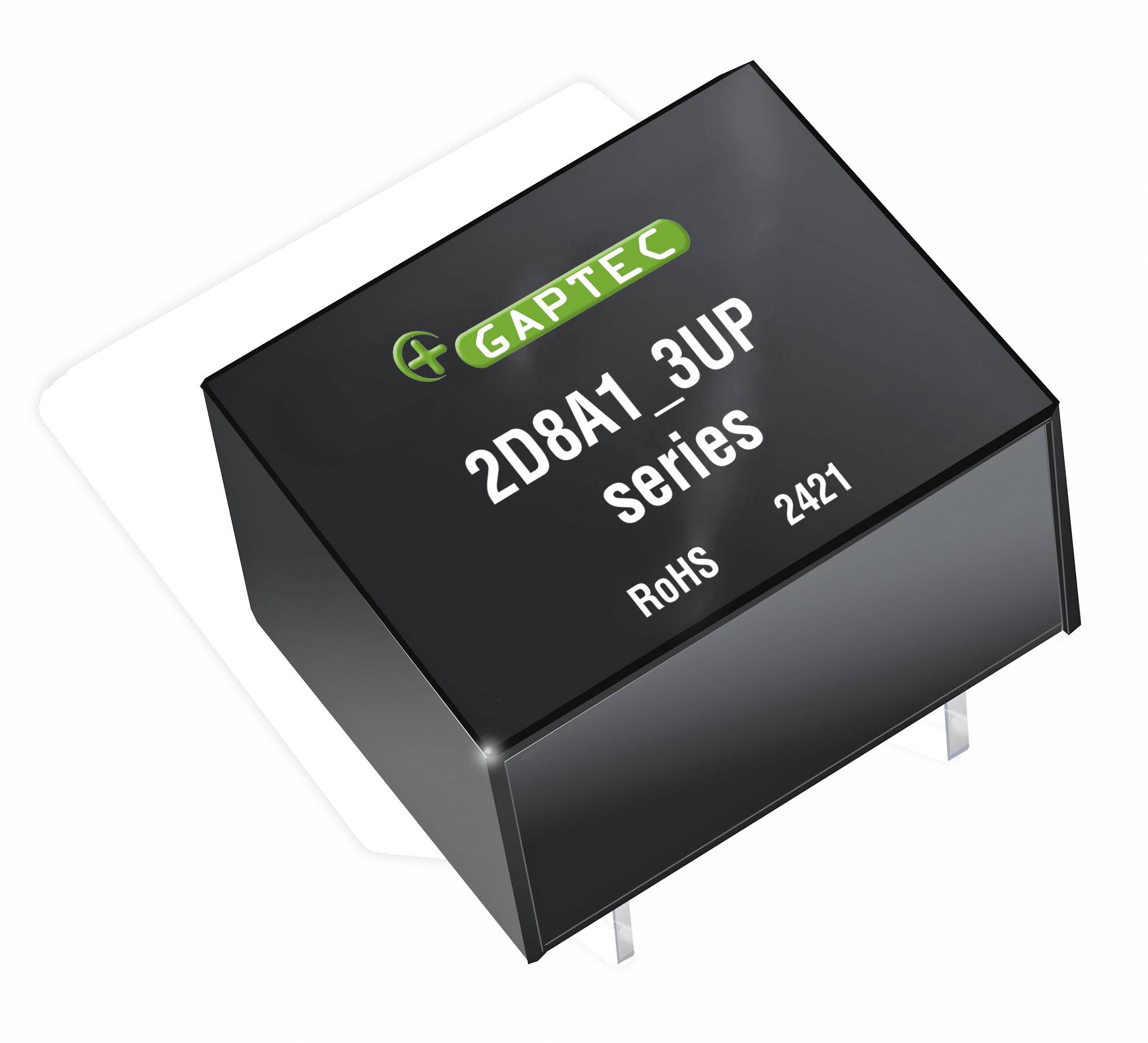

Gaptec 2D8A1_1505D3UP DC/DC converter 200 mA 2 W Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter
- Type
2D8A1_3UP
- Min. input voltage
13.5 V DC
- Input voltage (max.)
16.5 V DC
- Max. output current
200 mA
- Output current (max.) - rounded
200 mA
2 W
- Insulation voltage
3 kV
- Enclosure
DIP 8 (5-pin)
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
105 °C
- Dim
(L x W x H) 12.7 x 10.1 x 6.9 mm
- Height
6.9 mm
- Length
12.7 mm
- Width
10.1 mm
- RoHS-compliant
Yes
- Output voltage (max.)
5 V DC
- Weight
1.5 g
- Content
1 pc(s)
- Efficiency
82 %
- Max. operating temperature (derating)
105 °C
- Min. operating temperature (derating)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3354472 Gaptec 2D8A1_1505D3UP DC/DC converter 200 mA 2 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3354472 Gaptec 2D8A1_1505D3UP DC/DC converter 200 mA 2 W Content 1 pc(s)
Description
Industrial DC-DC converter
