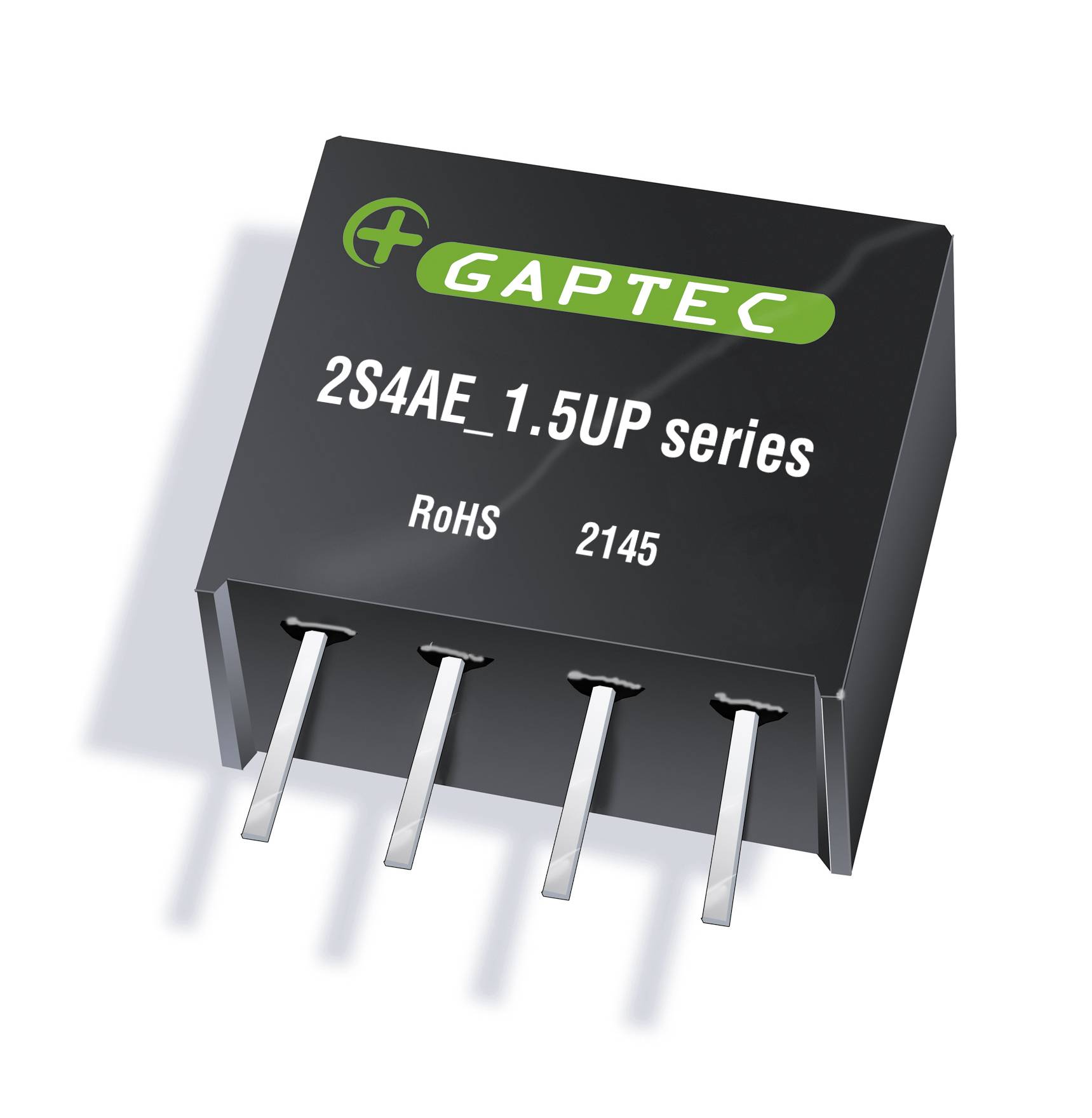

Gaptec 2S4AE_1203S1.5UP DC/DC converter 400 mA 2 W Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter
- Type
2S4AE_1.5UP
- Min. input voltage
10.8 V DC
- Input voltage (max.)
13.2 V DC
- Max. output current
400 mA
- Output current (max.) - rounded
400 mA
2 W
- Insulation voltage
1.5 kV
- Enclosure
SIP 4
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 11.6 x 7.6 x 10.2 mm
- Height
10.2 mm
- Length
11.6 mm
- Width
7.6 mm
- RoHS-compliant
Yes
- Output voltage (max.)
3.3 V DC
- Weight
1.6 g
- Content
1 pc(s)
- Efficiency
73 %
- Max. operating temperature (derating)
85 °C
- Min. operating temperature (derating)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3354546 Gaptec 2S4AE_1203S1.5UP DC/DC converter 400 mA 2 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3354546 Gaptec 2S4AE_1203S1.5UP DC/DC converter 400 mA 2 W Content 1 pc(s)
Description
Isolated DC-DC converter module 1 output 3.3V 400mA 10.8V - 13.2V input
