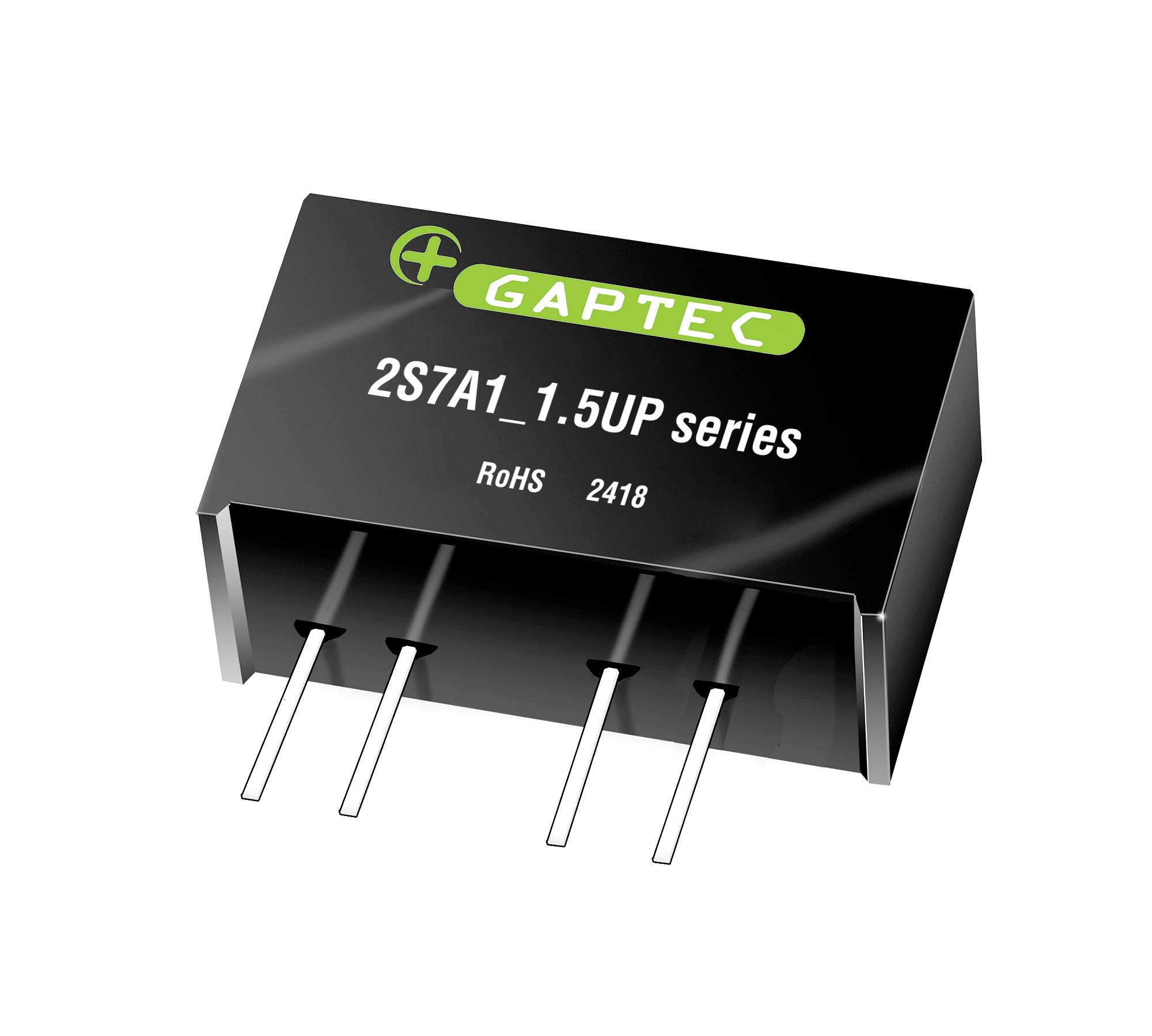

Image similar
Gaptec 2S7A1_1224S1.5UP DC/DC converter 84 mA 2 W Content 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter
- Type
2S7A1_1.5UP
- Min. input voltage
10.8 V DC
- Input voltage (max.)
13.2 V DC
- Max. output current
84 mA
- Output current (max.) - rounded
84 mA
2 W
- Insulation voltage
1.5 kV
- Enclosure
SIP 7 (4-pin)
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
105 °C
- Dim
(L x W x H) 19.5 x 6.0 x 10.0 mm
- Height
10.0 mm
- Length
19.5 mm
- Width
6.0 mm
- RoHS-compliant
Yes
- Output voltage (max.)
24 V DC
- Weight
2.1 g
- Content
1 pc(s)
- Efficiency
89 %
- Max. operating temperature (derating)
105 °C
- Min. operating temperature (derating)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3354640 Gaptec 2S7A1_1224S1.5UP DC/DC converter 84 mA 2 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3354640 Gaptec 2S7A1_1224S1.5UP DC/DC converter 84 mA 2 W Content 1 pc(s)
Description
Industrial DC-DC converter
