Gaptec 3S7B_0505D3U DC/DC converter 300 mA 3 W Content 1 pc(s)

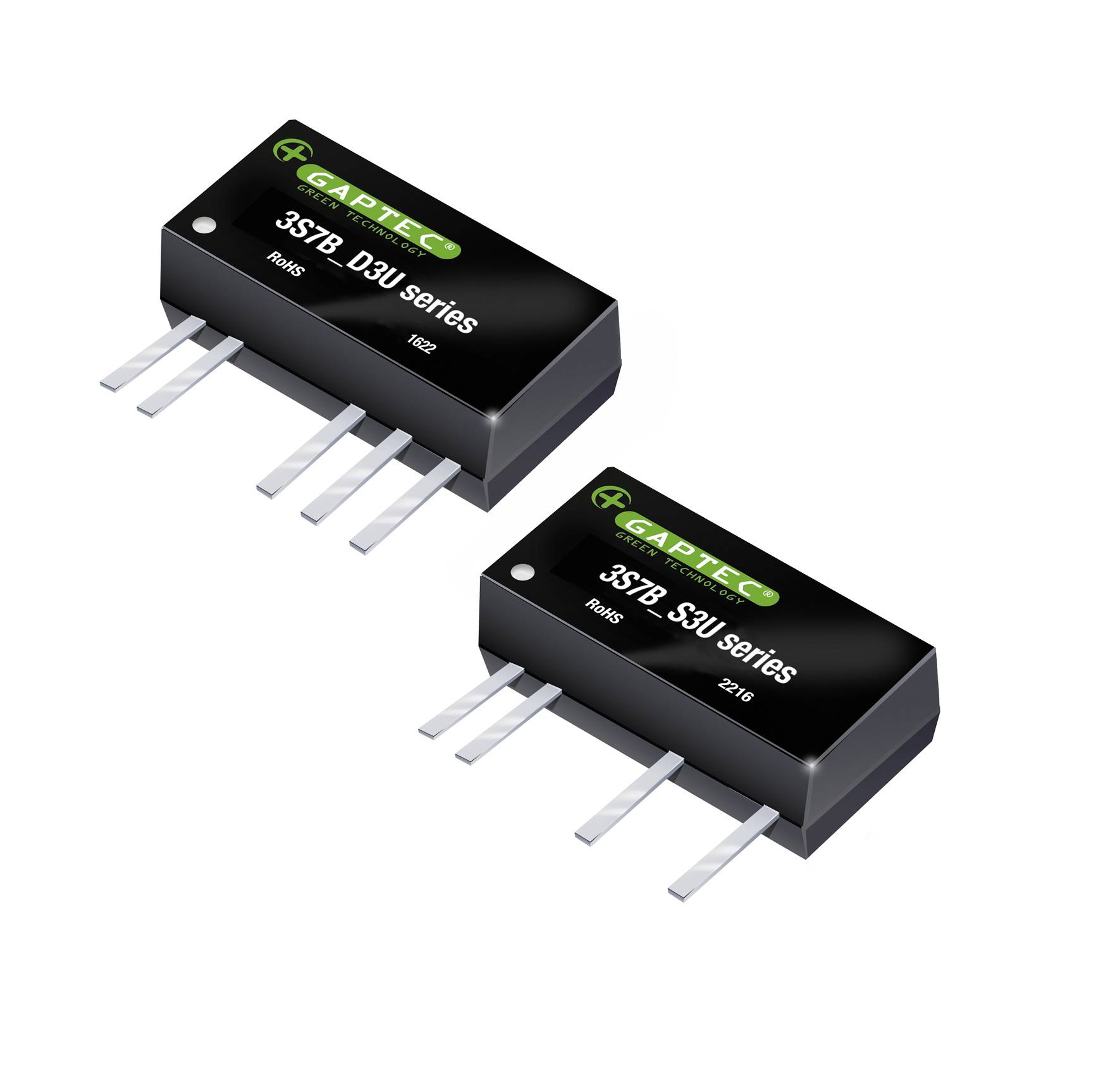

Two electronic components with the inscription 'GABTEC'. Both have multiple connections and are labelled as '3578 D30 series' and '3578 S30 series'.

Two electronic components with the inscription 'GABTEC'. Both have multiple connections and are labelled as '3578 D30 series' and '3578 S30 series'.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: DC/DC converter

Type: 3S7B_3U

Min. input voltage: 4.5 V DC

Input voltage (max.): 5.5 V DC

Max. output current: 300 mA

Output current (max.) - rounded: 300 mA

: 3 W

Insulation voltage: 3 kV

Enclosure: SIP 7 (5-pin)

Operating temperature (min.): -40 °C

Operating temperature (max.): 85 °C

Dim: (L x W x H) 19.6 x 7.0 x 10.0 mm

Height: 10.0 mm

Length: 19.6 mm

Width: 7.0 mm

RoHS-compliant: Yes

Output voltage (max.): 5 V DC

Weight: 2.8 g

Content: 1 pc(s)

Efficiency: 81 %

Documents & Downloads

Datasheet

Datasheet 3355513 Gaptec 3S7B_0505D3U DC/DC converter 300 mA 3 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3355513 Gaptec 3S7B_0505D3U DC/DC converter 300 mA 3 W Content 1 pc(s)

Description

Insulated DC/DC converter module 2 output 5V 300mA, 4.5V - 5.5V input

This text is machine translated.

Description

Insulated DC/DC converter module 2 output 5V 300mA, 4.5V - 5.5V input

This text is machine translated.
