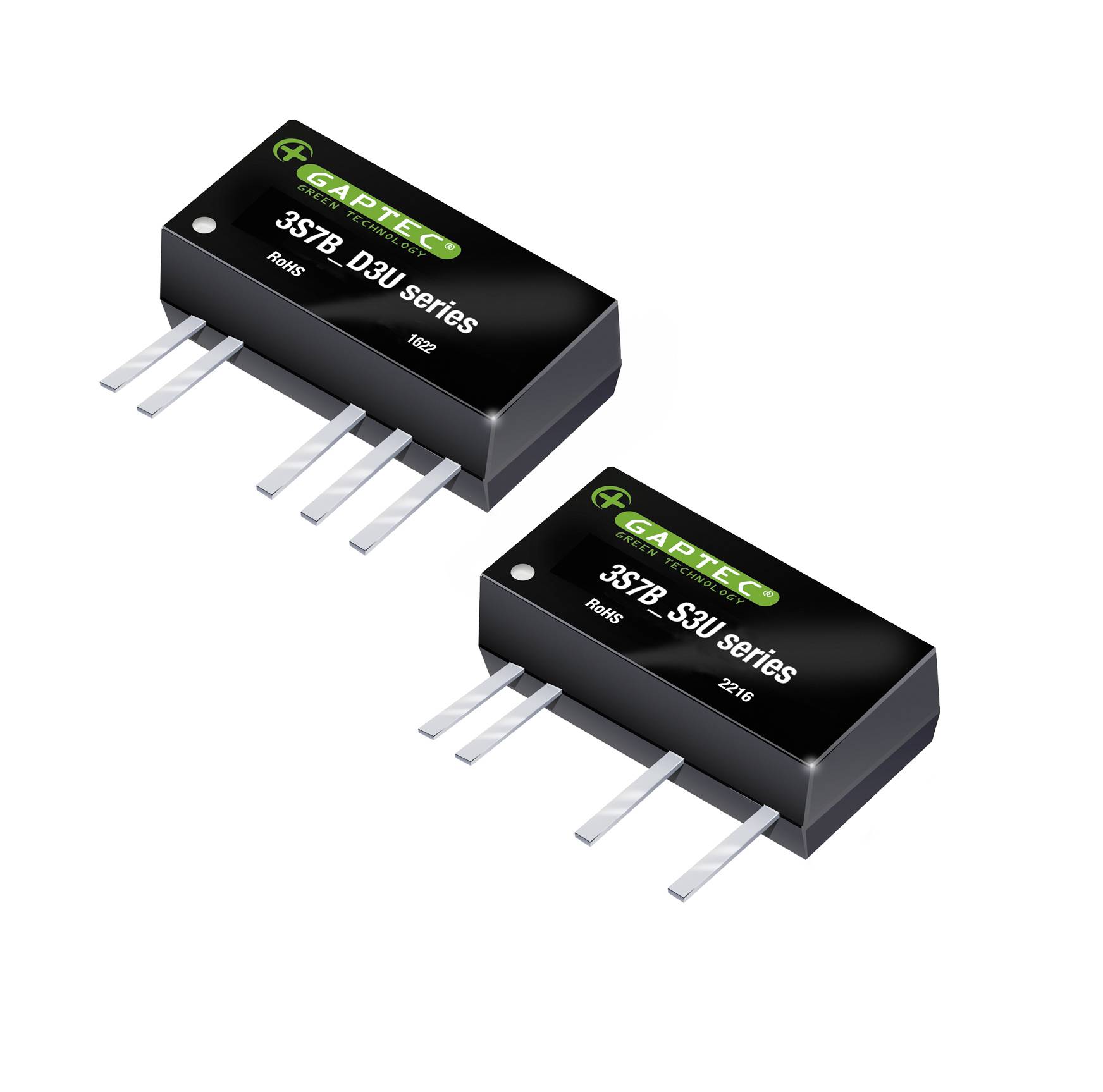

Image similar
Gaptec 3S7B_0515D3U DC/DC converter 100 mA 3 W Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter
- Type
3S7B_3U
- Min. input voltage
4.5 V DC
- Input voltage (max.)
5.5 V DC
- Max. output current
100 mA
- Output current (max.) - rounded
100 mA
3 W
- Insulation voltage
3 kV
- Enclosure
SIP 7 (5-pin)
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 19.6 x 7.0 x 10.0 mm
- Height
10.0 mm
- Length
19.6 mm
- Width
7.0 mm
- RoHS-compliant
Yes
- Output voltage (max.)
15 V DC
- Weight
2.8 g
- Content
1 pc(s)
- Efficiency
84 %
Documents & Downloads
Datasheet
Datasheet 3355525 Gaptec 3S7B_0515D3U DC/DC converter 100 mA 3 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3355525 Gaptec 3S7B_0515D3U DC/DC converter 100 mA 3 W Content 1 pc(s)
Description
Isolated DC-DC converter module 2 output 15V 100mA, 100mA 4.5V - 5.5V input
