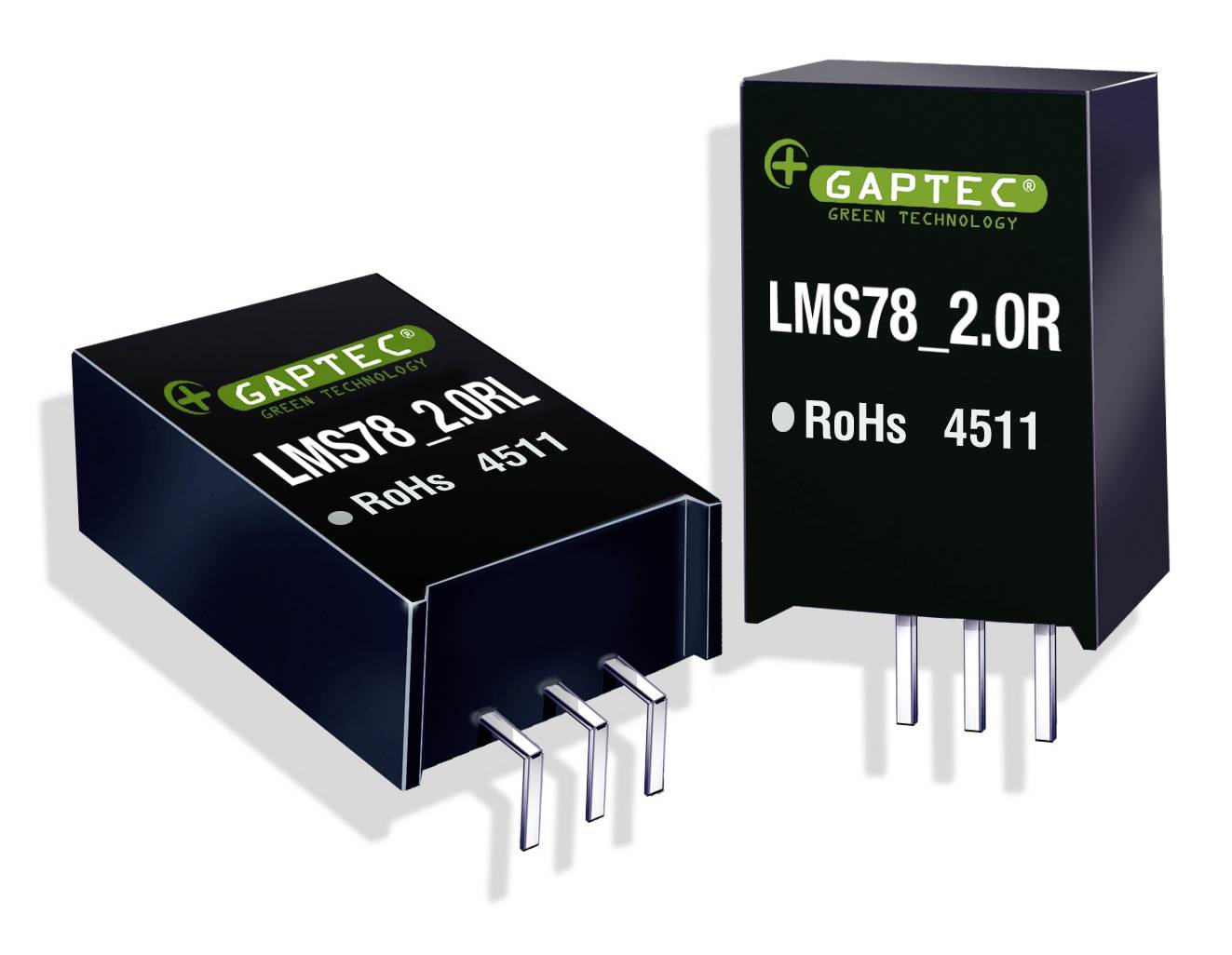

Gaptec LMS78_05-2.0RL DC/DC converter 2 A Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter
- Type
LMS78_2.0R
- Min. input voltage
8 V DC
- Input voltage (max.)
36 V DC
- Max. output current
2 A
- Output current (max.) - rounded
2 A
- Enclosure
SIP 3
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 11.5 x 9.0 x 17.5 mm
- Height
17.5 mm
- Length
11.5 mm
- Width
9.0 mm
- RoHS-compliant
Yes
- Output voltage (max.)
5 V DC
- Weight
2.3 g
- Content
1 pc(s)
- Efficiency
92 %
- Max. operating temperature (derating)
85 °C
- Min. operating temperature (derating)
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3356319 Gaptec LMS78_05-2.0RL DC/DC converter 2 A Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3356319 Gaptec LMS78_05-2.0RL DC/DC converter 2 A Content 1 pc(s)
Description
Non-isolated DC-DC converter pole-module 1 output 5V 2A 8V - 36V input
