Gedore 2 13X14 2 Double-ended box wrench Spanner size (metric) 13 mm

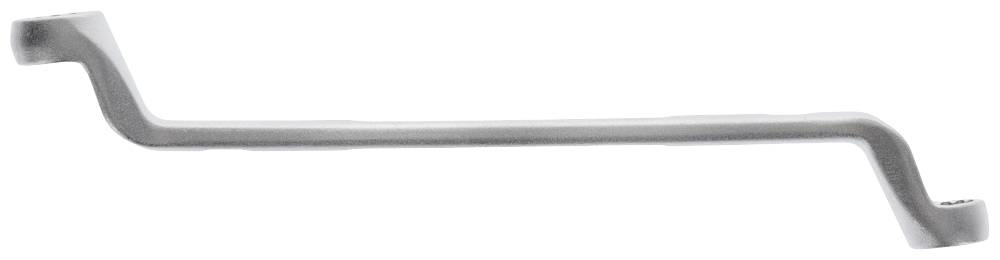

A silver, metallic spanner in a slightly curved shape.

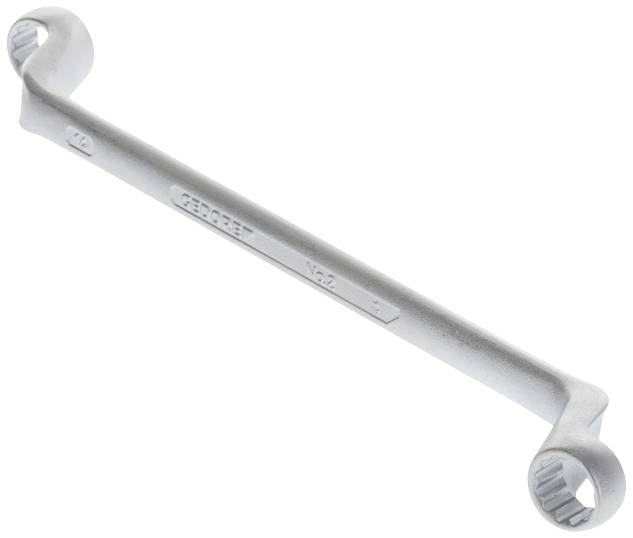

A double-ended ring spanner made of metal, showing two differently sized ends for tightening or loosening screws and nuts.

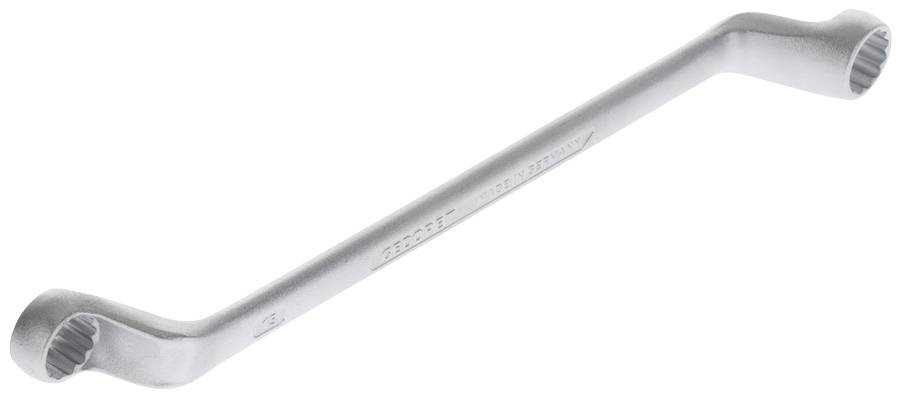

A silver double ring spanner with two differently sized ends.

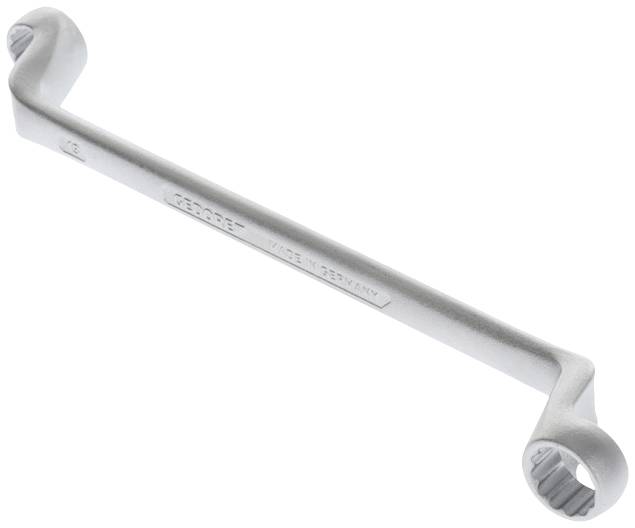

A silver double ring spanner with different sizes at each end, set against a white background.

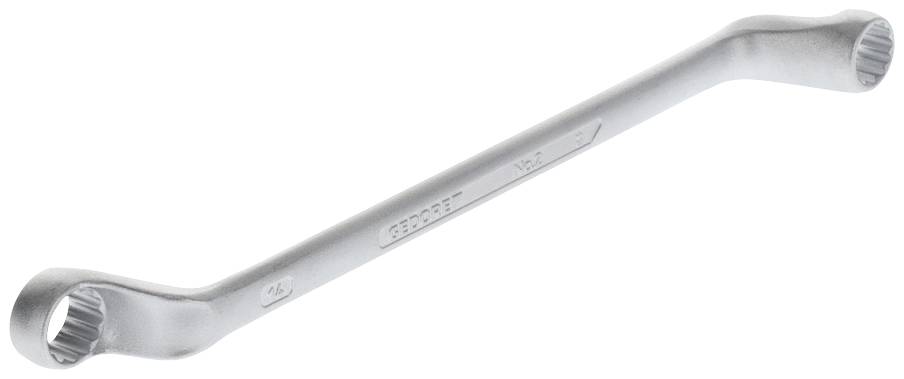

A silver ring spanner with two differently sized hexagonal openings at the ends, for screws and nuts.
1/5
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Double ring spanner, UD profile, 13x14 mm

  • Design according to DIN 838, ISO 3318, ISO 1085, ISO 10104
  • Deep offset, with thin-walled rings
  • Vanadium steel 31CrV3, chrome plated.

Technical specifications

  • Deep offset, with thin-walled rings
  • DIN 838; ISO 3310; ISO 1085; ISO 10104
  • Width across: 13x14
  • Head width 1:20.1 mm
  • Head height 1:10.3 mm
  • Head width 2:21.6 mm
  • Head height 2:10.6 mm
  • Height 1: 26.1 mm
  • Ring rate 5°
Product type

Double-ended box wrench

Spanner size

13 mm

Size

13

Length

225 mm

Material

Chromium-vanadium steel

Material properties

chrome plated

DIN standard

DIN 838

Height

32 mm

Width

22 mm

Weight

0.156 kg

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3220576 Gedore 2 13X14 2 Double-ended box wrench Spanner size (metric) 13 mm

Description

Design according to DIN 838, ISO 3318, ISO 1085, ISO 10104. Deep offset, with thin-walled rings. Vanadium steel 31CrV3, chrome plated. Anti-glare matt surface. Carefully forged and professionally processed: Ring: Thin-walled, deep cranked and angled at 5°, with UD-profile - for gentle power transfer. High bending strength - does not break or splinter due to overload and thus minimizes the risk of injury. Overloading is indicated by deformation. For extremely low-lying or countersunk nuts High-quality industrial grade for hard continuous use

This text is machine translated.

Features

  • Anti-glare matt surface
  • Carefully forged and professionally processed: Ring: Thin-walled, deep cranked and angled at 5°, with UD-profile - for gentle power transfer
  • High bending strength - does not break or splinter due to overload and thus minimizes the risk of injury
  • Overloading is indicated by deformation
  • For extremely low or
  • Countersunk nuts
  • High-quality industrial grade for hard continuous use

Scope of delivery

  • Double ring spanner, UD profile, 13x14 mm
