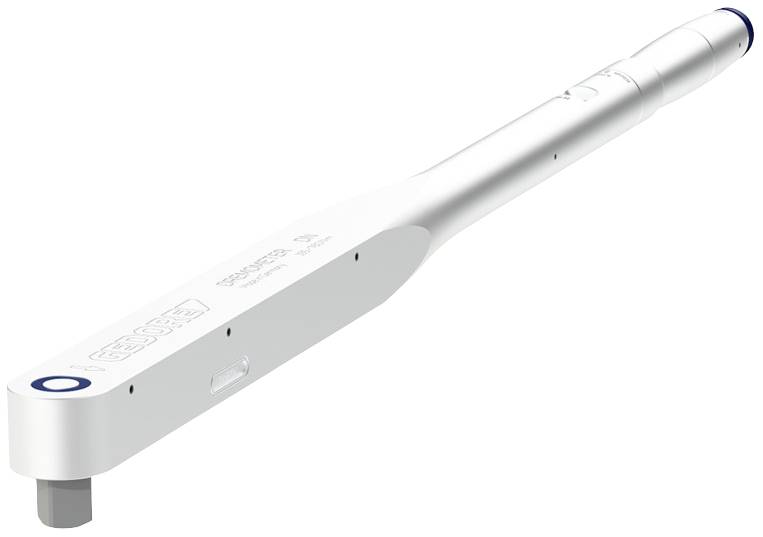

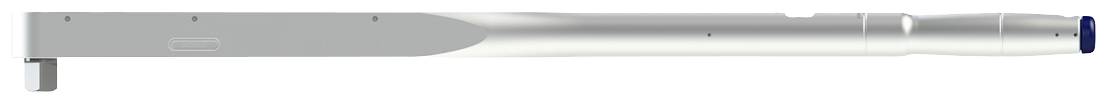

Gedore 8563-N-05 Torque wrench Ratcheting 3/4" (20 mm) 155 - 760 Nm
EAN:
Part number:
Item no:
Highlights & Details
DREAM DNR set 3/4" 155-760 Nm

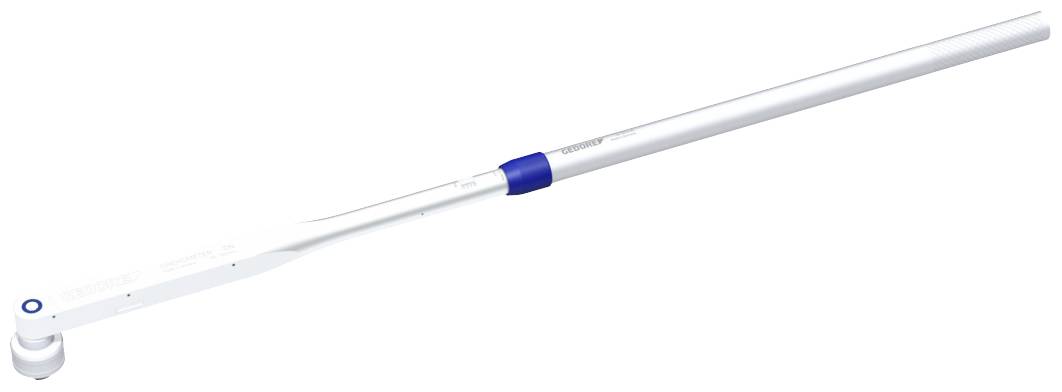

- Torque wrench in the tightening range 155-760 Nm with test certificate; with extension tube
- Controlled suit; output 3/4"; plus
- 3/4" right-handed ratchet handle.
Technical specifications
- DIN EN ISO 6789-2:2017
- Product type
Torque wrench
- Features
Ratcheting
- Downforce
3/4" (20 mm)
- Torque (min.)
155 Nm
- Torque (max.)
760 Nm
- Trigger accuracy
3 %
- Graduation
1.0 Nm
- DIN standard
DIN EN ISO 6789-2:2017
- Weight
3.005 kg
Manufacturer's standards (with certificate)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220595 Gedore 8563-N-05 Torque wrench Ratcheting 3/4" (20 mm) 155 - 760 Nm
Description
Torque wrench in the tightening range 155-760 Nm with test certificate; with extension tube. Controlled, reverse; 3/4" drive; 3/4" right-handed ratchet handle. Classified according to DIN EN ISO 6789-2:2017; Adjusted to a maximum permissible deviation of +/-3% and therefore more precise than the required +/-4% in the standard. Vernier scale - resolution 1.0 Nm. Made in Germany
This text is machine translated.
This text is machine translated.
Features
- Classified according to DIN EN ISO 6789-2:2017; Adjusted to a maximum permissible deviation of +/-3% and therefore more precise than the required +/-4% in the standard
- Vernier scale - resolution 1.0 Nm
- Made in Germany
Scope of delivery
- Rotary thermometer DN 3/4" with vernier 155-760 Nm No. 8563-N-00
- Clip-on pipe DR/DX ALU No. 8571-80
- Ratchet handle No. 754-04.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
