Name: Gedore ETCP-SE200 ETCP-SE200 Torque wrench 14 x 18 mm 20 - 200 Nm
Brand: Gedore
SKU: 3720796

A digital torque wrench with a blue handle, black digital display, and silver metallic shaft, used for precise torque measurements in mechanics.

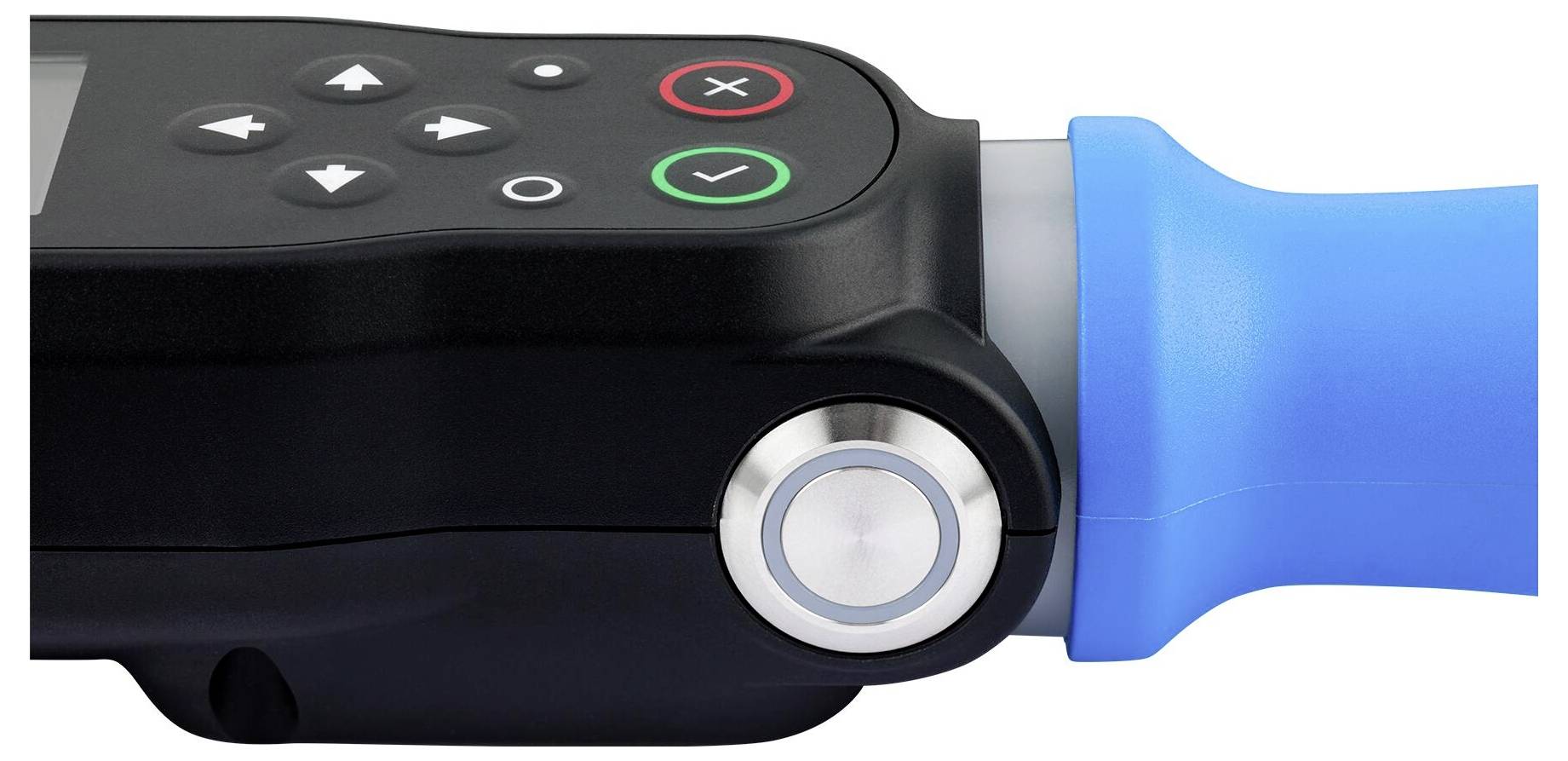

A close-up view of a handheld electronic device with a blue handle and buttons for navigation and confirmation.

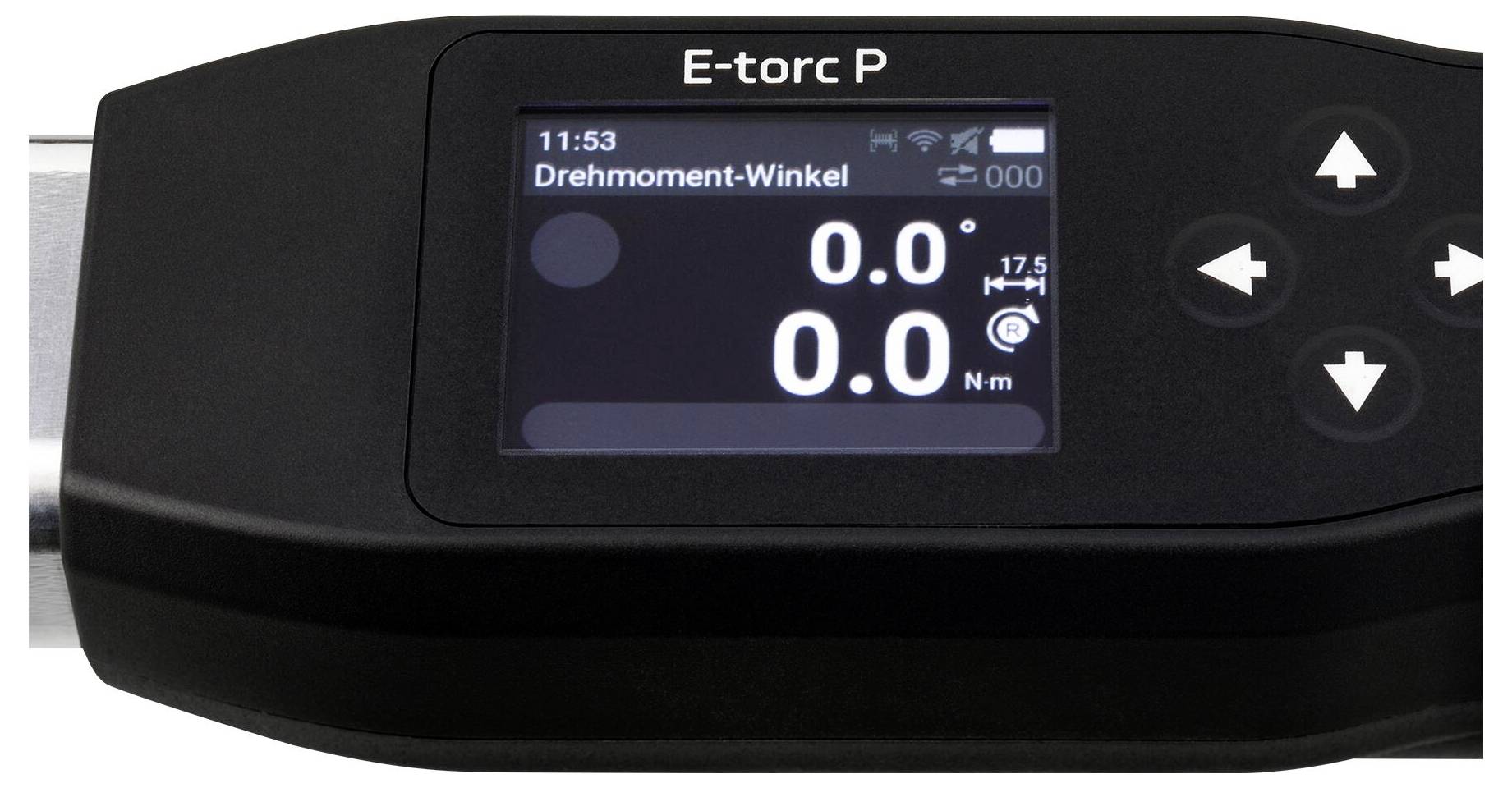

A digital torque wrench display showing '0.0°' and '0.0 Nm' with navigation buttons beside the screen. Top label reads 'E-torc P'.

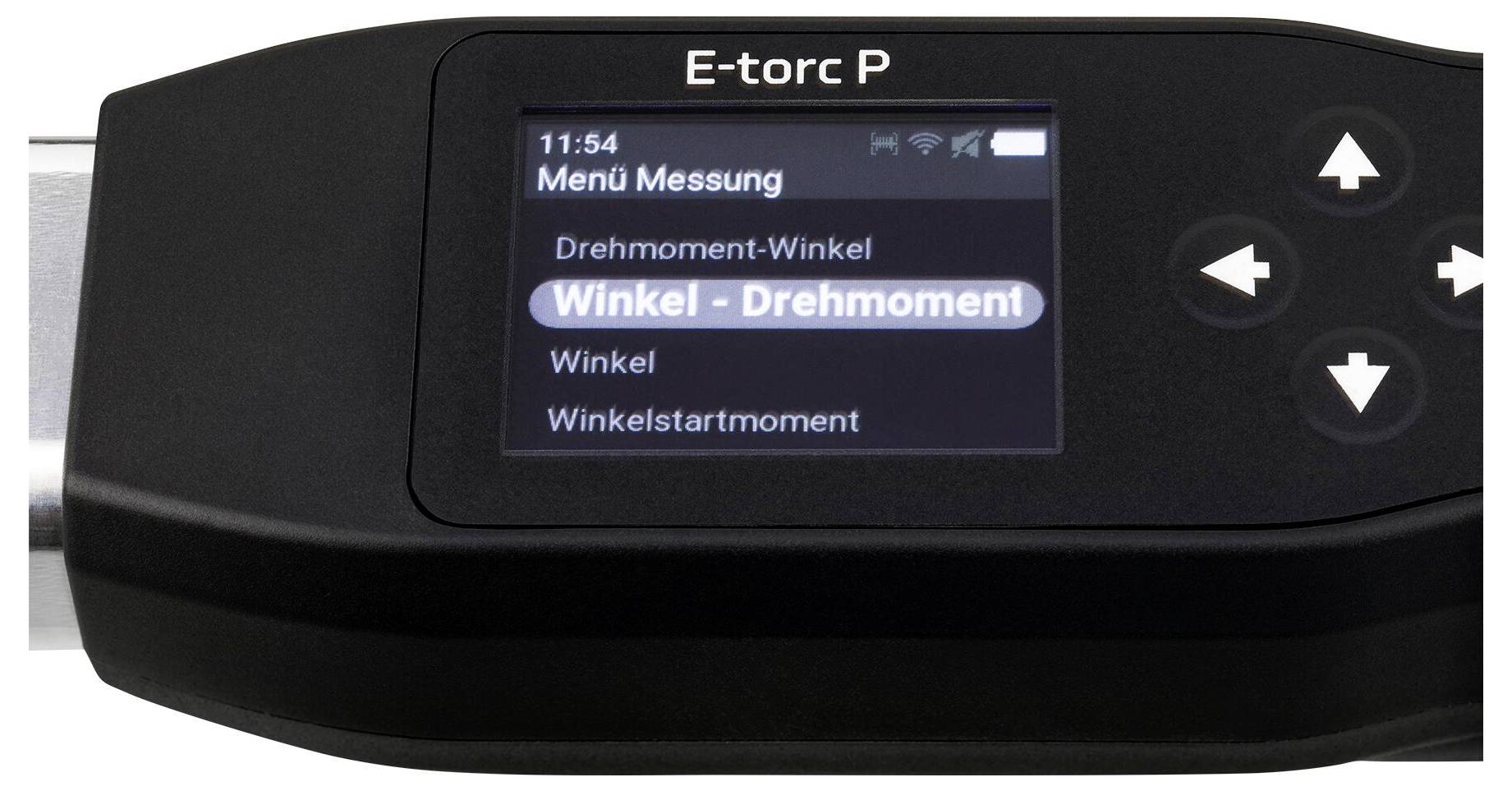

Digital torque wrench display showing options: 'Drehmoment-Winkel', 'Winkel-Drehmoment', 'Winkel', and 'Winkelstartmoment'.

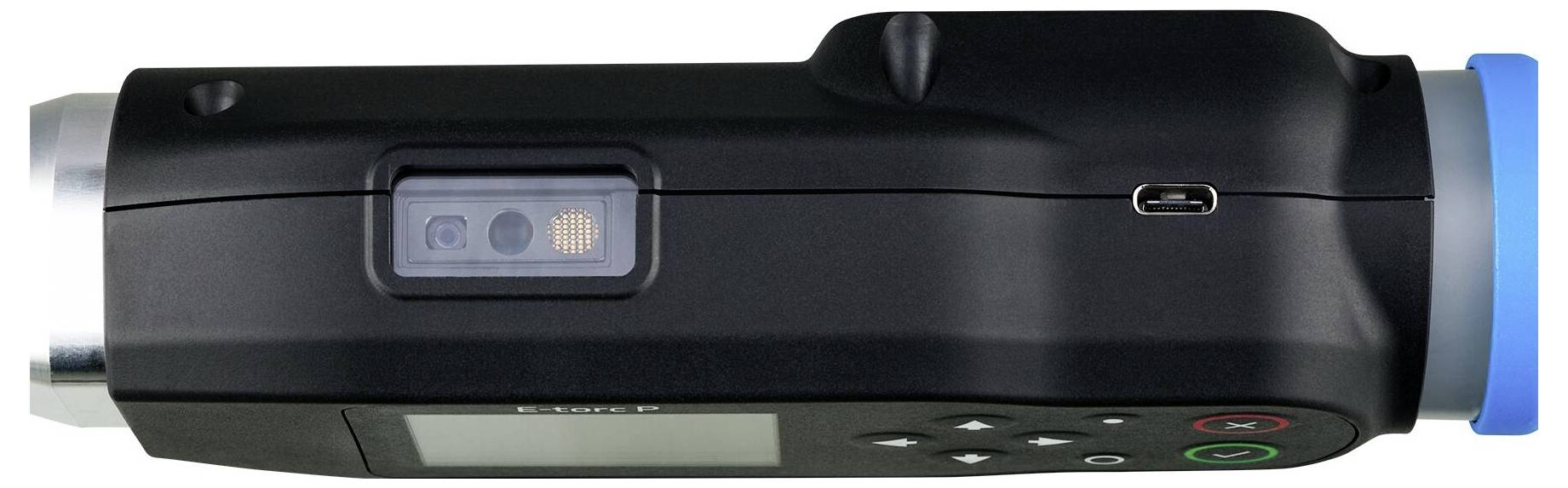

A handheld black device with a small display and control buttons, used for digital measurements or inspections.

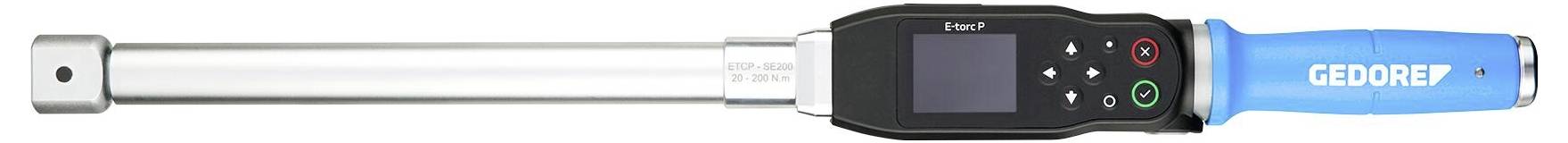

A digital torque wrench with an LCD display and a blue handle, featuring buttons for setting adjustments, used for precise torque measurements.

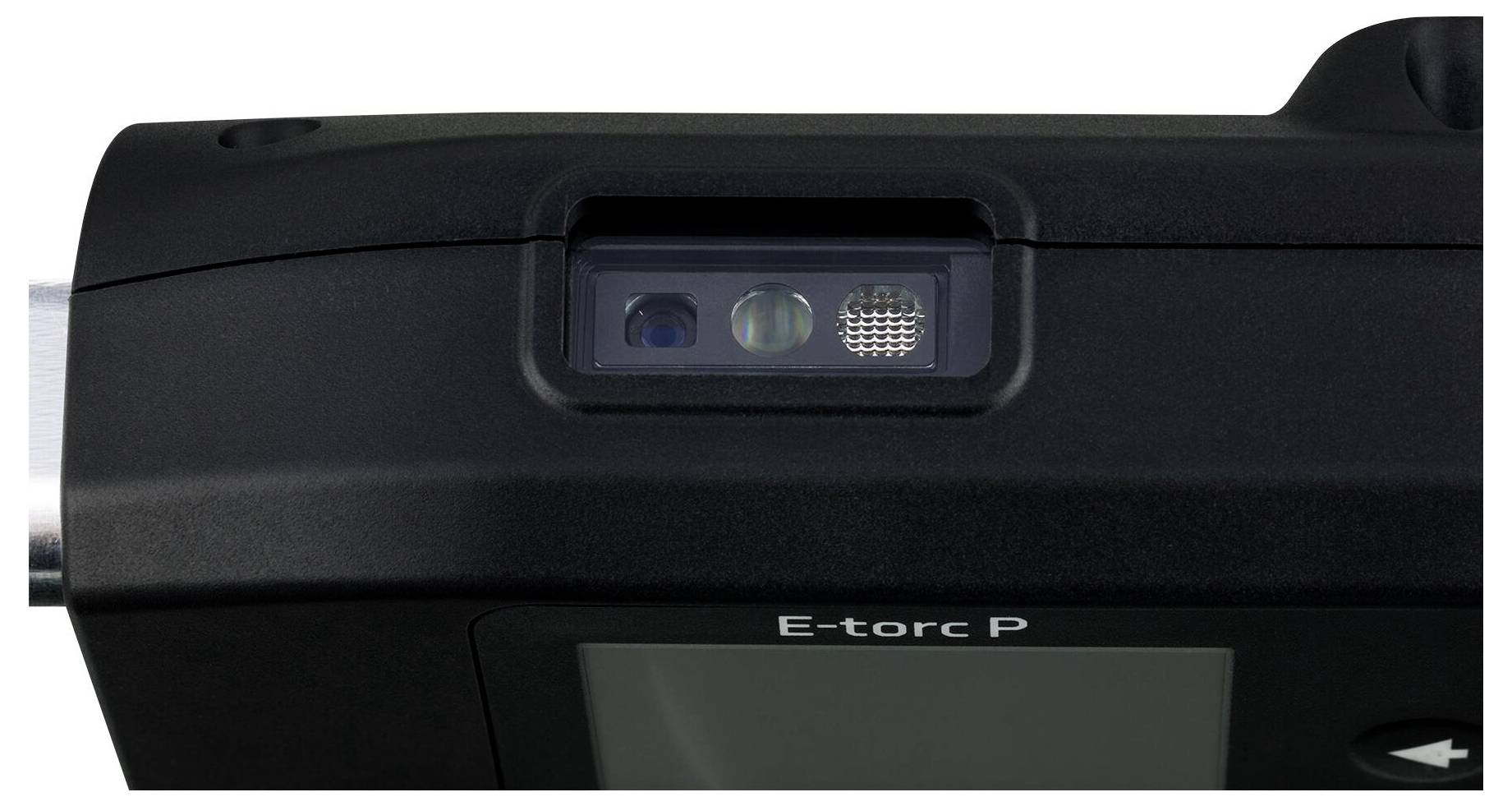

A close-up of a digital tool displaying sensors and a small screen titled 'E-torc P'.

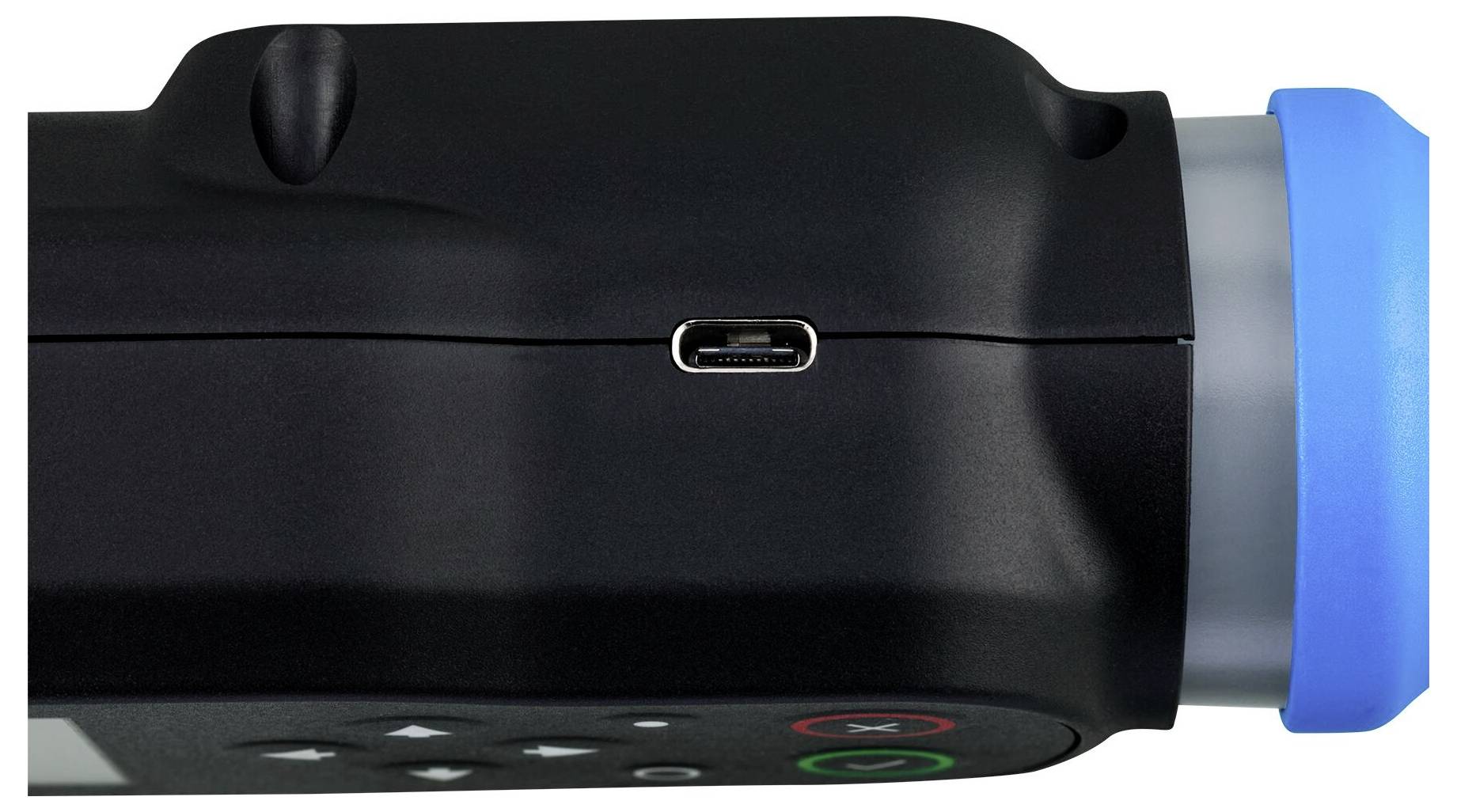

A close-up side view of a black electronic device with a USB-C port and control buttons, featuring a blue-capped end.

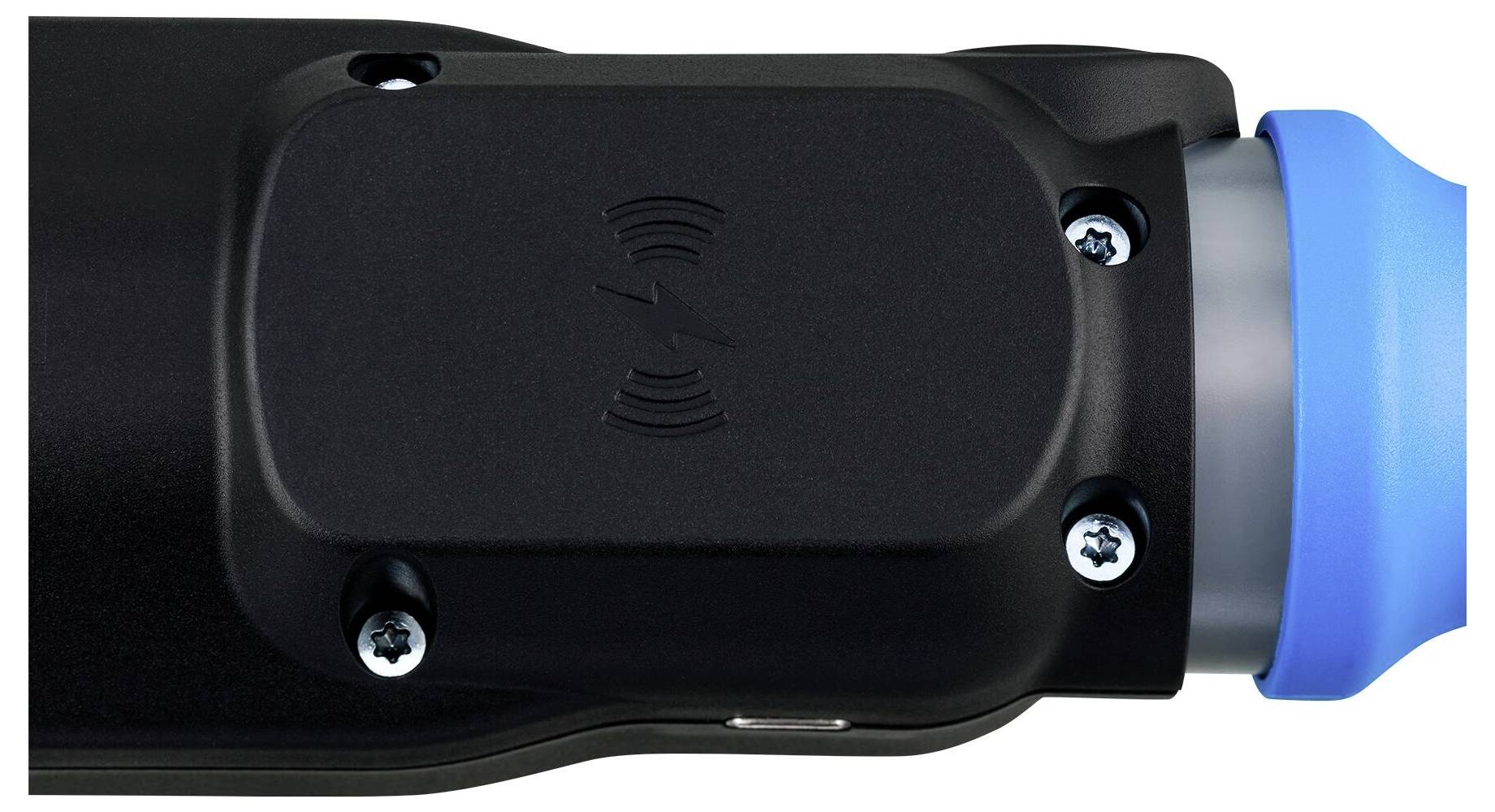

A close-up of a black charging connector with a blue cap and wireless charging symbol, secured by screws.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Connection dimension 1: 14x18 mm
Accuracy according to ISO 6789: 0.01
Tightening torque 20-200 Nm
Insulated: No.
Protective insulation 1000 V: No.
With scale: Yes
VDE tested: No.
Electronic: Yes
With signal tone: Yes
Suitable for extension: No.
With extension: No.
Screwdriver model: No.

Product type: Torque wrench

Downforce: 14 x 18 mm

Torque (min.): 20 Nm

Torque (max.): 200 Nm

Length: 619 mm

Weight: 1488 g

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3720796 Gedore ETCP-SE200 ETCP-SE200 Torque wrench 14 x 18 mm 20 - 200 Nm

User & Safety Instructions

User & Safety Instructions 3720796 Gedore ETCP-SE200 ETCP-SE200 Torque wrench 14 x 18 mm 20 - 200 Nm

Description

Electronic torque & rotation angle wrench for the application range in production/assembly, enables proper and safe/controllable (assembly) screwing process and traceability/proof of documented screw connections, controlled screw tightening in the range from 20 - 200 N.·M, With extreme precision - measurement accuracy +/- 1% (torque & angle of rotation) - the highest industrial requirements are also fulfilled. In addition to the torque/angle of rotation, there is an integrated floating-value display (track), peak value measurement (peak) as well as the possibility to call presets and workflows. Up to 9,999 measurement data and curves can be recorded in the large internal memory, Data can be transferred wirelessly via WLAN, Zigbee (optional) or USB cable. A bi-directional communication enables the cordless loading of workplans on the key as well as the transfer of measurement data, workplans can be started via the menu or via the integrated 2-D scanner, As standard, the E-Torc P can be connected to existing production management systems (MES) via an open-protocol, a high-contrast 2" IPS display enables excellent readability even in bright working environments, the 360° visible LED ring allows the installation process to be controlled even under difficult conditions (e.g. working overhead), the signal is visually (display, LED ring), haptic (vibration) and acoustic (signal tone), the light and handy design as well as the lateral confirmation button enable an ergonomic and fatigue-free working, a powerful lithium-ion battery enables a long life as well as life span (no memory effect), the inductive charging station (optionally available) allows wireless charging and provides for a safe storage both lying and hanging by means of wall mounting, factory-fitted with factory calibration certificate according to Gedore House standard GTWN001, traceable to national normal, angle calibration according to VDI/VDE 2648-2, calibration according to DKD-R 3-7 class 1 including calibration certificate with accreditation symbol (optional), different dimensions for insertion tools programmable, Free evaluation PC-software included in the delivery

This text is machine translated.
