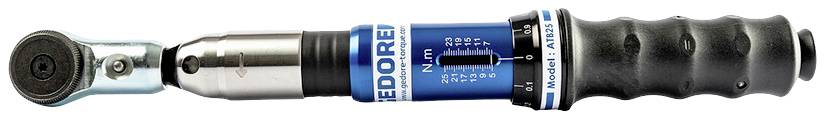

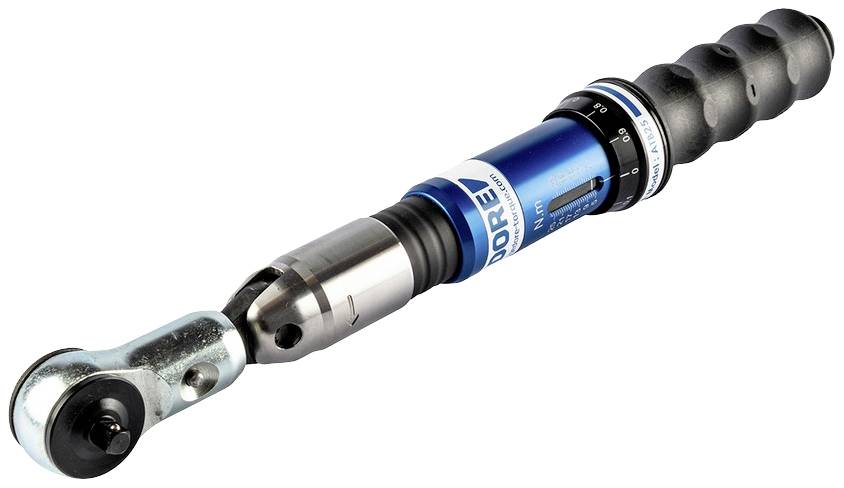

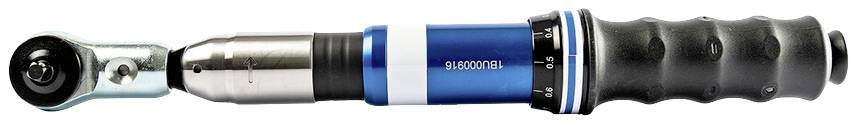

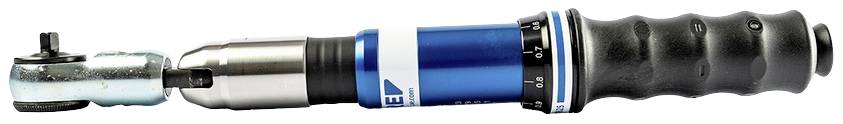

Gedore GEDORE ATB 25 D Torque Wrench ATB 25 D Torque wrench Calibrated to (ISO standards) Slipping 5 - 25 Nm
EAN:
Part number:
Item no:
Highlights & Details
Kink torque wrench With scale 5-25 Nm
- Type ATB 2.5 to ATB 10 with 8 mm hook-on pin
- Type ATB 25 to ATB 100 with 16 mm pin attachment Incl. Ratchet
- With micrometer scale that allows the desired value to be set easily and safely.
Technical specifications
- 16 mm pin
- Product type
Torque wrench
- Features
Slipping
- Torque (min.)
5 Nm
- Torque (max.)
25 Nm
- Trigger accuracy
4 %
- Length
345 mm
- DIN standard
DIN EN ISO 6789
- Weight
1.11 kg
ISO standards
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220617 Gedore GEDORE ATB 25 D Torque Wrench ATB 25 D Torque wrench Calibrated to (ISO standards) Slipping 5 - 25 Nm
Description
Type ATB 2.5 to ATB 10 with 8 mm hook-on pin. Type ATB 25 to ATB 100 with 16 mm push-on pin including hook-in ratchet. With micrometer scale that allows the desired value to be set easily and safely. With adjustment lock to prevent unintended adjustment of the torque value. Trigger accuracy: +/- 4% tolerance of set value (ATB 2.5; ATB 5; ATB 10 +/- 6% tolerance). If the hand grip does not bend down to 20° when the torque value is reached, this makes it unlikely that it will be over. Classified according to DIN EN ISO 6789 Type II Class A
This text is machine translated.
This text is machine translated.
Features
- With adjustment lock to prevent unintended adjustment of the torque value
- Trigger accuracy: +/- 4% tolerance of set value (ATB 2.5; ATB 5; ATB 10 +/- 6% tolerance)
- If the hand grip does not bend down to 20° when the torque value is reached, this makes it unlikely that it will be over
- Classified according to DIN EN ISO 6789 Type II Class A
Scope of delivery
- Kink torque wrench With scale 5-25 Nm
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
