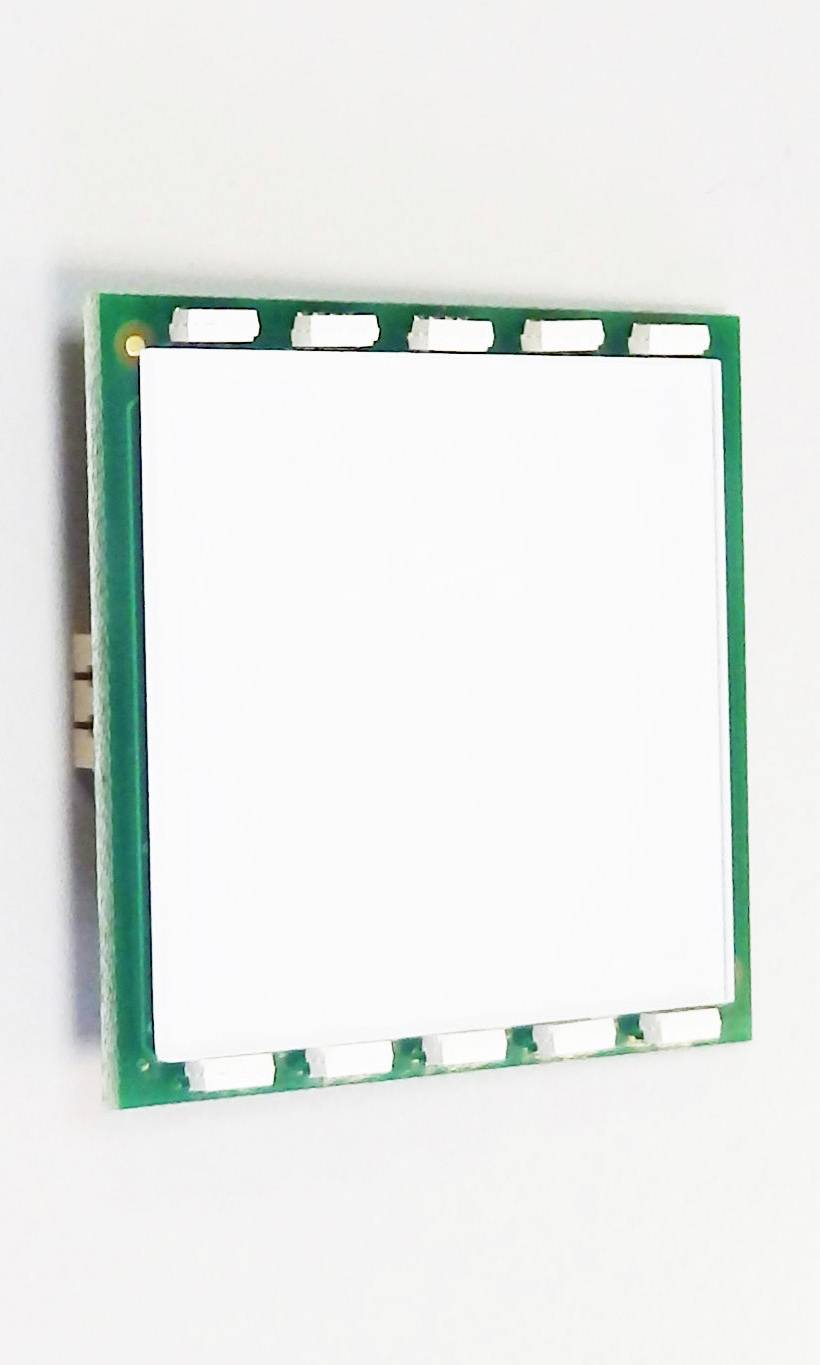

GETT KR29000 TKR-Smart-001-PCB-NO-PF-RGB-001 Button 42 V 100 mA momentary RGB (L x W x H) 40 x 40 x 9 mm 1 pc(s)
Product type
Button
Lighting type
LED
Connection
Jack connector
Switching voltage
42 V
Switching current (max.)
100 mA
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Capacitive button
- Available as an illuminated or non-illuminated versionOnly light touch is required for operationButton without moving parts, therefore wear-freeFunction control using the integrated microcontrollerSwitching behavior can be configured via firmwareMaximum front glass thickness 6 mm for glass and 3 mm for plasticOutput configured as potential free contactFlat design
Technical specifications
- Product type
Button
- Switch/button features
capacitive
+ LED
- Functions
momentary
- Lighting type
LED
- Colour
RGB
- Connection
Jack connector
- Switching voltage
42 V
- Switching current (max.)
100 mA
- Min. temperature
0 °C
- Max. temperature
+70 °C
- Length
40 mm
- Width
40 mm
- Height
9 mm
- Content
1 pc(s)
- Dim
(L x W x H) 40 x 40 x 9 mm
- RoHS-compliant
Yes
- Type
TKR-Smart-001-PCB-NO-PF-RGB-001
Documents & Downloads
Datasheet
Datasheet 2705599 GETT KR29000 TKR-Smart-001-PCB-NO-PF-RGB-001 Button 42 V 100 mA momentary RGB (L x W x H) 40 x 40 x 9 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2705599 GETT KR29000 TKR-Smart-001-PCB-NO-PF-RGB-001 Button 42 V 100 mA momentary RGB (L x W x H) 40 x 40 x 9 mm 1 pc(s)
Description

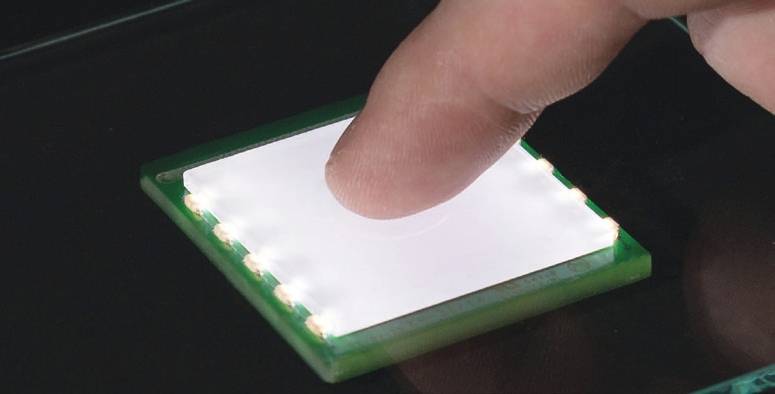

Simply TOUCH a running systemA switch. One presses it, feels a mechanical process, which is finally confirmed with a "click". In times of Smartphone and Co. Has this idea of a sensor almost something nostalgic. Long-established in the field of operating technology, various touch technologies such as capacitive, resistive or projected resistive operation have developed. The advantages of this type of operation are clearly obvious – they are mechanically wear-free and hygienic in use. The latter, in particular, has gained immense importance since the pandemic. With the capacitive button from GETT we meet this requirement and make our contribution to a safe and intuitive human-machine relationship.
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
System requirements
- Windows XP until Windows 10
