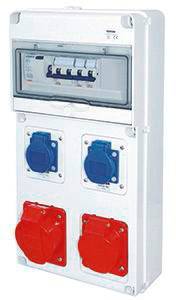

Gewiss CEE power distributor AS05071 AS05071 400 V
EAN:
Part number:
Item no:
Technical specifications
- 1 FI 40/0.03 A Type A 4pol
- 2 MT100C16A 1pol
- 1 MT100 C16 3-pin
- Product type
CEE power distributor
- No. of CEE connectors
2
- Type A
Screw terminals
- Type B
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector
- No. of PG sockets
2
- Nominal input voltage
400 V
IP44
- Dim
(W x H) 220 mm x 435 mm
- Width
220 mm
- Height
435 mm
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
PG connector
CEE connector (5-pin, 32 A)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- UKCA
yes
Description
IEC socket combination wired ready for connection. The in-line installation devices are mounted under a transparent beta-release flap. The beta-release flap can be re-tested by a safety lock. The upper part is designed as a hinge on both sides by using spherical-head screws. The housing can be mounted either on the inside or on the outside with wall brackets (accessories). A change-over with carrying handle or stand frame is possible by means of appropriate accessories. Each with 2 holes at the top and bottom. Includes 1 M32 cable gland and 3 M32 screw plugs. Ground fault circuit breaker 40/0.03A 4-pin type A, circuit breaker C characteristic / switching capabilities 10kA. In the case of miniature circuit breakers in compact design, 6kA switching modes.
