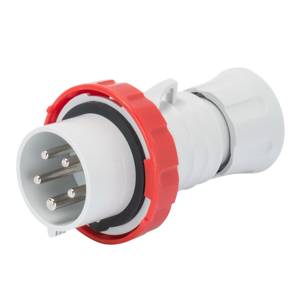

Gewiss GW60042H GW60042H CEE plug 32 A 415 V AC 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
CEE plug
- Nominal voltage
415 V AC
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Type A
Screw terminals
IP67
- Content
1 pc(s)
- Number of pins
5
Gland nut
5
Plastic
Nickel-plated
32 A
Screwed terminal
Straight
FALSE
Other
IP67
FALSE
6 h
Red
380-415 V (50+60 Hz) red
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3120745 Gewiss GW60042H GW60042H CEE plug 32 A 415 V AC 1 pc(s)
Description
Connector for industrial applications according to IEC 60 309-(EN 60 309) Series IEC 309 HP with locking system SAFE-LOCK, nickel-plated contacts, metal parts made of stainless steel, plastic parts halogen-free in accordance with EN 50 267-2-2, cable entry as cable gland with integrated strain relief, connection technology: Screw terminal, connection cross-section 2.5 - 6 mm² fine-wired/2.5 - 10 mm² single or multi-wired, UV-resistant, IK09 impact strength
