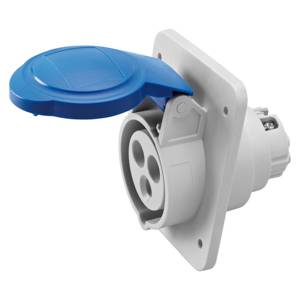

Image similar
Gewiss GW62205H GW62205H CEE add-on socket 16 A 230 V AC 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
CEE add-on socket
- Nominal voltage
230 V AC
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
IP44
- Content
1 pc(s)
- Number of pins
3
Other
3
50-60 Hz
Plastic
Nickel-plated
16 A
Screwed terminal
Angled
200-250 V
Other
IP44
FALSE
6 h
Blue
230 V (50+60 Hz) blue
60 mm
60 mm
85 mm
75 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3120756 Gewiss GW62205H GW62205H CEE add-on socket 16 A 230 V AC 1 pc(s)
Description
Add-on socket for industrial applications according to IEC 60 309 (EN 60 309) Inclination 10° nickel-plated contacts, metal parts made of stainless steel, plastic parts halogen-free according to EN 1-2-2, connection technology: Screw terminal, connection cross-section 50 267 - 2.5 mm² fine-wired / 1.5 - 4 mm² single or multi-wired, UV-resistant, shock resistance IK09
