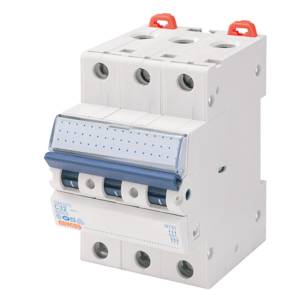

Image similar
Gewiss GW92570 GW92570 Circuit breaker 25 A 400 V
Product type
Circuit breaker
Number of pins
3
Release characteristics
B
Nominal current - rounded value
25 A
Nominal current
25 A
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
3
- Release characteristics
B
- Nominal current - rounded value
25 A
- Nominal current
25 A
- Content
1 pc(s)
- Nominal voltage
400 V
IP20
AC
72 mm
25 A
400 V
50-60 Hz
B
500 V
3
3
3
3
FALSE
IP20
3
FALSE
35-35 mm²
35-35 mm²
-25-60 °C
FALSE
TRUE
3
10 kA
10 kA
25 kA
15 kA
4 kV
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3120794 Gewiss GW92570 GW92570 Circuit breaker 25 A 400 V
Description
Circuit breaker (MCB) according to EN60898-1, with time-delayed thermal overload release and electromagnetic short-circuit release. Alternatively, a RESTART restart device RM TOP, a RESTART remote drive CM or two auxiliary devices can be installed on the left-hand side. With inscription window on the device. Connection (max): 35qmm with insulated lower-plug protection. The connection screws can be fitted with a sealable cover (accessory separate order). The shift lever can be sealed off and on or locked with a lever lock for padlock. The shift lever can be sealed off and on or locked with a lever lock for padlock.
