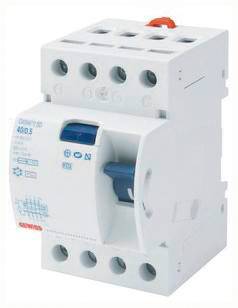

Gewiss GW94869 GW94869 RCCB A 4-pin 25 A 0.3 A 400 V, 415 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
A
Differential current rating
0.3 A
Nominal current - rounded value
25 A
Datasheet (PDF)
Technical specifications
- Product type
RCCB
- Number of pins
4
- Release characteristics
A
- Differential current rating
0.3 A
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Dim
(W x H x D) 54 x 90 x 65 mm
- Content
1 pc(s)
- Nominal voltage
400 V
415 V
- Width
54 mm
- Height
90 mm
- Depth
65 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2149983 Gewiss GW94869 GW94869 RCCB A 4-pin 25 A 0.3 A 400 V, 415 V
User & Safety Instructions
User & Safety Instructions 2149983 Gewiss GW94869 GW94869 RCCB A 4-pin 25 A 0.3 A 400 V, 415 V
Description
Compact FI-circuit breaker as mains voltage independant residual current-circuit breaker (RCCB) according to EN61008-1. Suitable for subsequent mounting of 1 additional device or modules for automatic restart (restart). Mounting depth 64mm, connection (max.): 25qmm. The 4-pole residual current operated circuit breaker only has a space requirement of 3 division units
