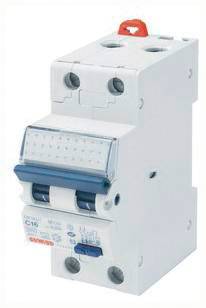

Gewiss GW95327 RCBO 1-phase 2-pin 16 A 0.03 A 230 V
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
2
Release characteristics
B
Differential current rating
0.03 A
Nominal current - rounded value
16 A
Datasheet (PDF)
Technical specifications
- Nominal voltage (details)
230 V
- Product type
RCBO
- Number of pins
2
- Release characteristics
B
- Differential current rating
0.03 A
- Dim
(W x H x D) 36 x 85 x 72 mm
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Model
1-phase
- Operating voltage
230 V
- Nominal voltage
230 V
- Width
36 mm
- Height
85 mm
- Depth
72 mm
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2149986 Gewiss GW95327 RCBO 1-phase 2-pin 16 A 0.03 A 230 V
User & Safety Instructions
User & Safety Instructions 2149986 Gewiss GW95327 RCBO 1-phase 2-pin 16 A 0.03 A 230 V
Description
Residual current circuit breaker with built-in overcurrent protection (RCBO) according to EN61009-1. Suitable for subsequent mounting of 2 additional devices and/or combinations with modules for automatic restart (restart). The shift lever can be sealed when switched off and on or locked with a lever lock (order additional separate) for pre-lock. With integrated fault current display and folding labeling plate. Connection (max): 35qmm with insulated under-plug protection. The connection screws can be provided with a sealable cover (order accessories separately).
