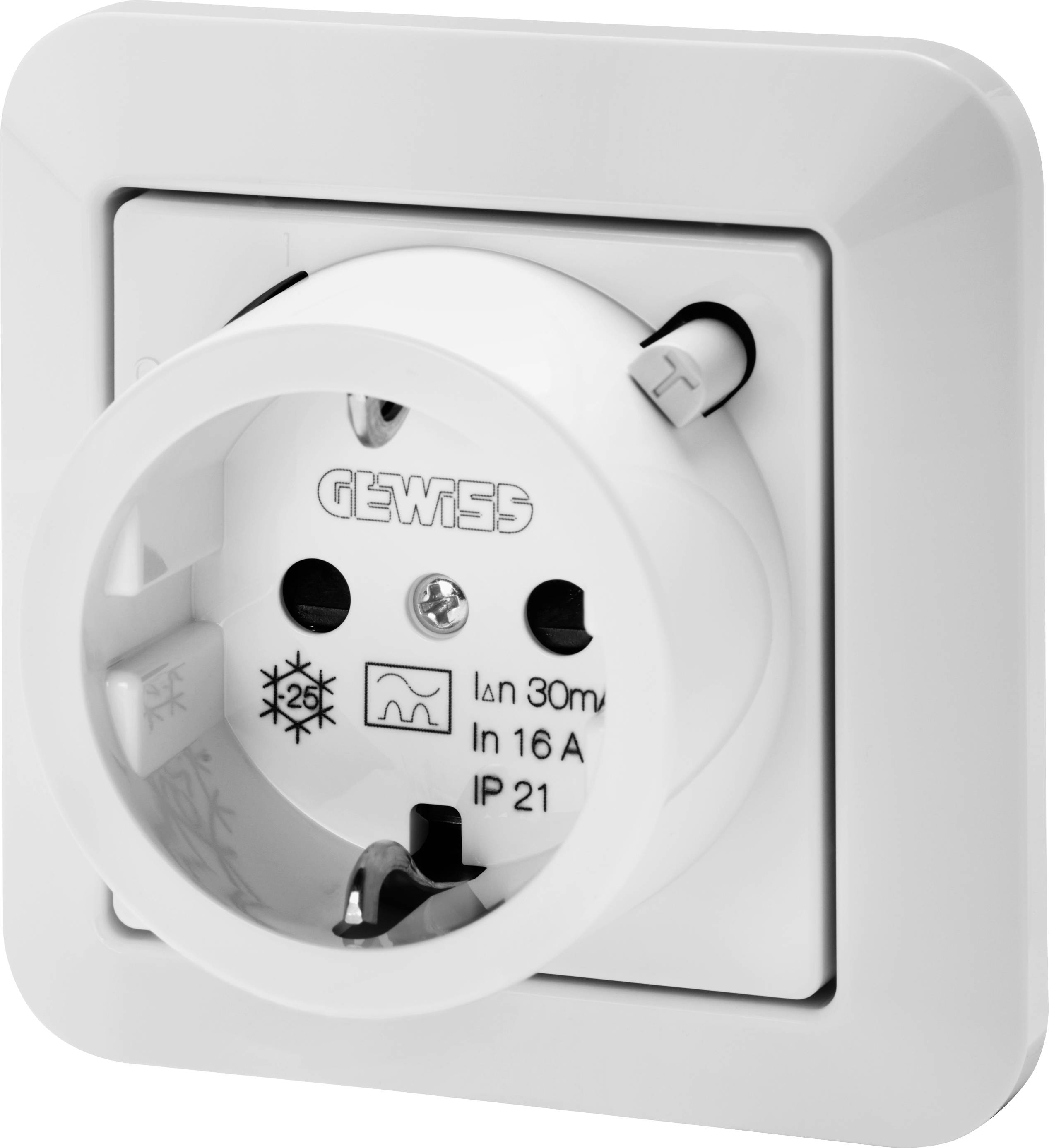

Gewiss GW95522 Flush-mount FI safety socket Child safety, incl. RCBO IP21 Polar white
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
WHITE RCD SOCKET A 16A 30MA IP21 WHITE
- With increased protection against accidental contact
- With connection for another FI-protected circuit line
- With frame and central plate 55 x 55 mm
- Suitable in the 55 series programs of many manufacturers
- Min Depth of the device socket 32 mm
Technical specifications
- Product type
Flush-mount FI safety socket
- Light bulb features
Child safety
incl. RCBO
- Outlets
1
- Nominal voltage
230 V
- Nominal current
16 A
- Mounting type
Flush mount
- Differential current rating
0.03 A
- Factory colour
Polar white
IP21
- Dim
(W x H x D) 81 x 81 x 67 mm
- Width
81 mm
- Height
81 mm
- Depth
67 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3350595 Gewiss GW95522 Flush-mount FI safety socket Child safety, incl. RCBO IP21 Polar white
User & Safety Instructions
User & Safety Instructions 3350595 Gewiss GW95522 Flush-mount FI safety socket Child safety, incl. RCBO IP21 Polar white
Description
Safety socket with integrated residual-current circuit-breaker for flush-mounting in a device socket with a mounting aperture 60 mm. The mounting can be done alternatively with the integrated fixing claws or screws (not included) in the device box. The socket is delivered with a full cover and increased contact protection. Connection with screwless terminals 2.5 qmm on the input and output sides.
