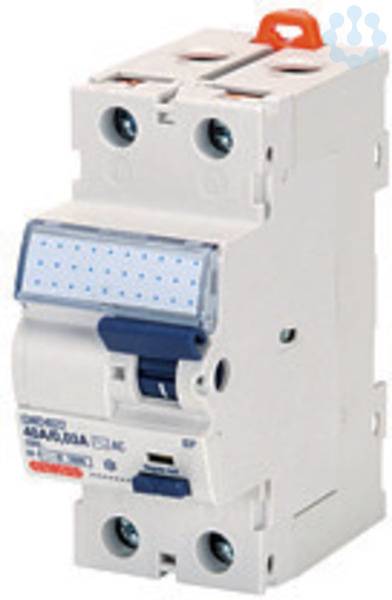

Gewiss GWD4032 GWD4032 RCCB 1-phase A 2-pin 40 A 0.03 A 230 V
Product type
RCCB
Number of pins
2
Release characteristics
A
Differential current rating
0.03 A
Nominal current - rounded value
40 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
RCCB
- Number of pins
2
- Release characteristics
A
- Differential current rating
0.03 A
- Nominal current
40 A
- Nominal current - rounded value
40 A
- Dim
(W x H x D) 36 x 85 x 72 mm
- Model
1-phase
- Size
2 TE
- Content
1 pc(s)
- Nominal voltage
230 V
- Width
36 mm
- Height
85 mm
- Depth
72 mm
- Weight
0
DIN rail
AC
72 mm
40 A
230 V
500 V
2
0.03 A
2
2
FALSE
7.8 W
IP20
35-35 mm²
35-35 mm²
-25-40 °C
TRUE
4
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2150053 Gewiss GWD4032 GWD4032 RCCB 1-phase A 2-pin 40 A 0.03 A 230 V
Description
Ground fault circuit breaker as mains voltage independant residual current circuit breaker (RCCB) EN61008-1. Suitable for subsequent mounting of 2 additional devices and/or combinations with modules for automatic restart (restart). The shift lever can be sealed when switched off and on or locked with a lever lock (order additional separate) for a pre-lock. With integrated fault current display and folding labeling plate. Connection (max): 35qmm with insulated under-plug protection. The connection screws can be provided with a sealable cover (order accessories separately).
