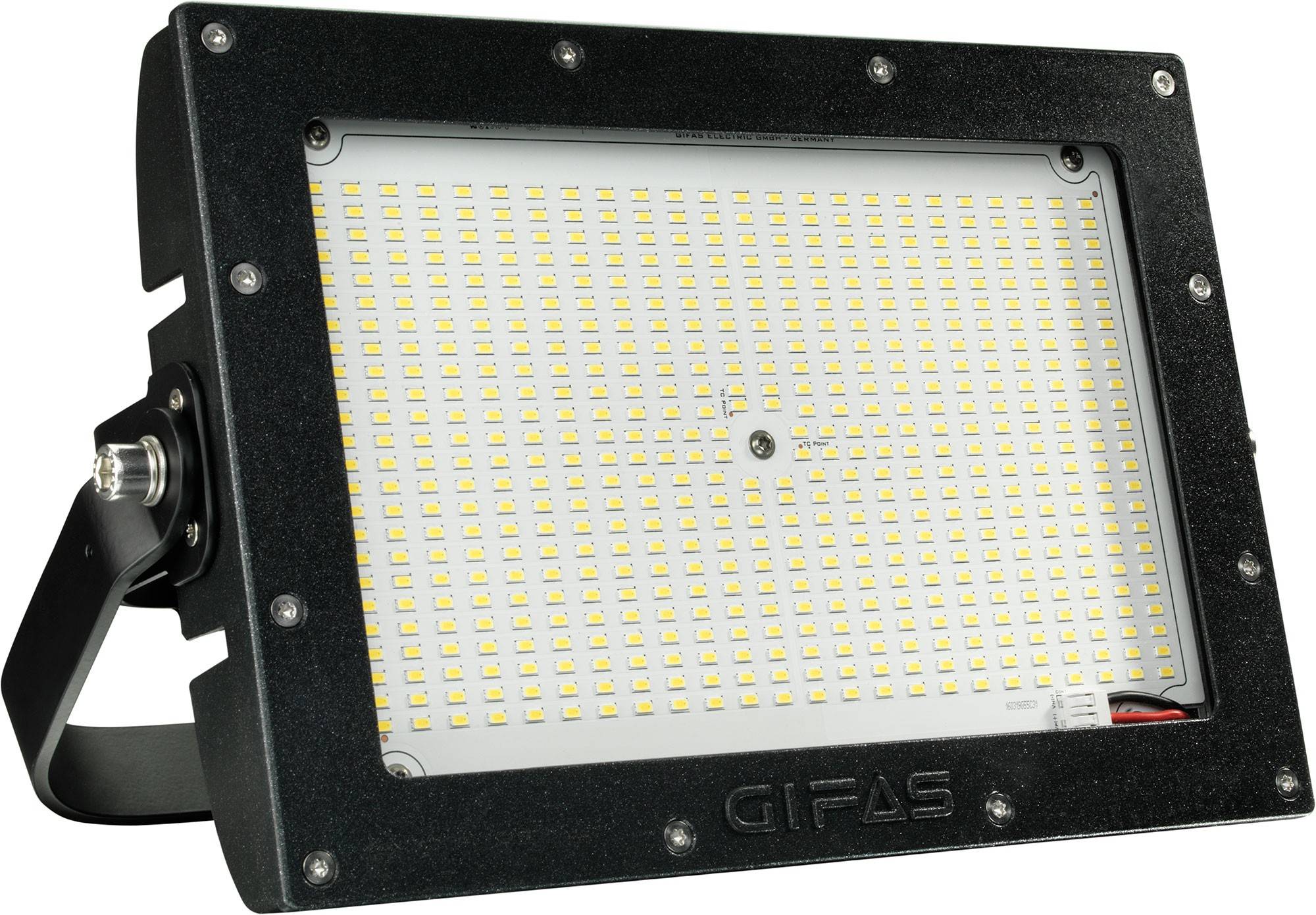

Gifas Electric 290320 290320 LED floodlight 128 W Colours (LEDs): White
EAN:
Part number:
Item no:
Highlights & Details
Gifas Electric LED floodlight LUXX/W120V230/-/RF AlphaLUXX 120
- Power= 128 W
- Total luminous flux= 18636 lm
- Colour temperature= 5000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Bulb: LED not replaceable
- With bulb: Yes
- Material of housing: Aluminium
- Nominal voltage 100..240 V
- Protection class (IP) IP65
- Protection class: I
- Max. System power 128 W
- Light color: White
- Colour temperature: 5000 K
- Luminous flux: 18636 lm
- Width 252 mm
- Height/depth 176 mm
- Length: 389 mm
- Product type
LED floodlight
- Operating voltage
230 V
- Bulb type
LED (monochrome)
Built-in LED
128 W
5000 K
- Colour
White
- Total luminous flux
18636 lm
- Radiation angle
120°
- Protection class
I
IP65
- Material
Aluminium
- Weight
7.0 kg
- Dim
(L x W x H) 389.00 x 252.00 x 176.00 mm
n.rel.
- Colour rendering index
Ra >80
- Light bulb included
Yes
- Width
252.00 mm
- Height
176.00 mm
- Length
389.00 mm
- Depth
176 mm
- Colour temperature (max.)
5000 K
- Colour temperature (min.)
5000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3163479 Gifas Electric 290320 290320 LED floodlight 128 W Colours (LEDs): White
Description
Floodlight: AlphaLUXX 120"
Special design - vibration proof - Operating voltage: 100-240 VACLight current: 18,636 lmLED-efficiency: 158 lm/WSystem-power: 128 WSystem-efficiency >: 146 lm/WLED-manufacturer: Seoul Semiconductor angle: 120 °CRI-index: Ra 80LED-life: L70,B10 / 80.000hColour temperature: 5000 KHousing material: Aluminium die-cast, 230Dalloy Body surface: Brass coated, cable gland: Type: Type: Type: Type: Type: I655mm Surface temperature: 90°C (suitable for use in fire-prone operating sites)Operating temperature: -30°C to +50°C Storage temperature: -35°C to +70°Cmax rel Humidity: 90% at +25°C linear decreasing up to 50% at +50°C Weight: Approx. 7.0 kg Dimensions: 389 x 252 x 176 mm Features of the design:- All screws are secured with LOCTITE® 243 (nuts are already self-locking)- The ballast is mounted vibration-insulated
This text is machine translated.
Special design - vibration proof - Operating voltage: 100-240 VACLight current: 18,636 lmLED-efficiency: 158 lm/WSystem-power: 128 WSystem-efficiency >: 146 lm/WLED-manufacturer: Seoul Semiconductor angle: 120 °CRI-index: Ra 80LED-life: L70,B10 / 80.000hColour temperature: 5000 KHousing material: Aluminium die-cast, 230Dalloy Body surface: Brass coated, cable gland: Type: Type: Type: Type: Type: I655mm Surface temperature: 90°C (suitable for use in fire-prone operating sites)Operating temperature: -30°C to +50°C Storage temperature: -35°C to +70°Cmax rel Humidity: 90% at +25°C linear decreasing up to 50% at +50°C Weight: Approx. 7.0 kg Dimensions: 389 x 252 x 176 mm Features of the design:- All screws are secured with LOCTITE® 243 (nuts are already self-locking)- The ballast is mounted vibration-insulated
This text is machine translated.
