Gifas Electric CEE power distributor 209167
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 2x16A5p400V
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Protection: LS-switch
- Handling: Portable
- Type of mains connection: CEE 32 A.
- Product type
CEE power distributor
- No. of PG sockets
3
IP54
- Cable length
3 m
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3859005 Gifas Electric CEE power distributor 209167
Description

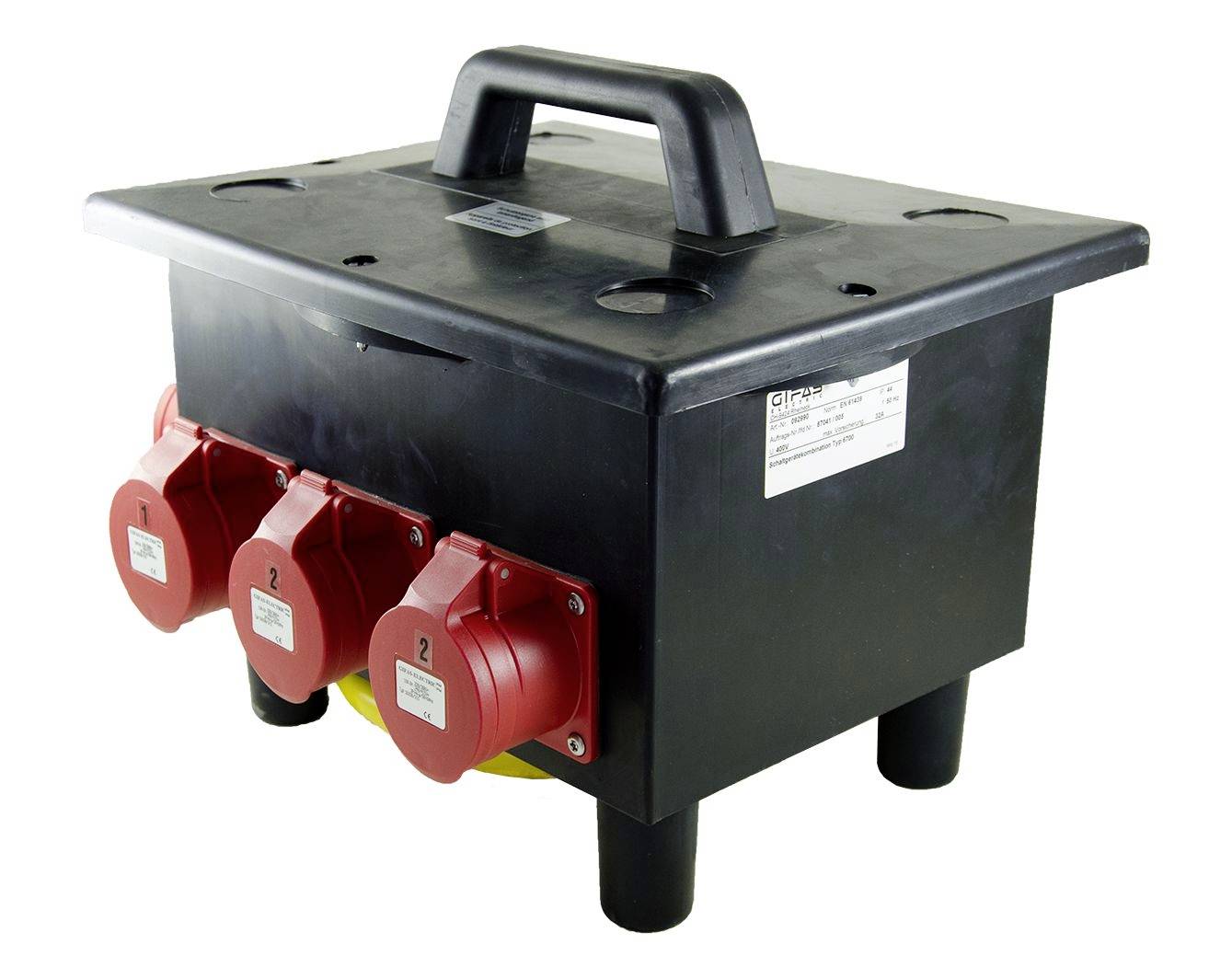

GIFAS solid rubber distributor type 6700 Input:3 m GIFAS-PROFLEXX-07 line 5 x 16 qmm with CEE plug 5 x 32 A/400 Voutput:1 CEE-socket 5 x 32 A/400 V without safety2 CEE-sockets 5 x 6 A/400 V secured via Neozed-fuses 16 A3 safety sockets protected via Neozed-fuses 16 Aexecution:- protective devices inside under the lid (via 3 quick-locking screws to be loosened) Dimensions: H x B x T = 305 x 350 x 280 mm Protection type: IP 54Gl factor: 0.4 Weight: approx. 14 kg properties:- Housing made of impact-resistant solid rubber with high mechanical strength- resistant to acids and bases- very good weather, UV and ozone resistance, high electrical insulation power outlets and other components can be replaced individually and VDE tested- Compliance with all applicable electrical safety regulations of the VDE
