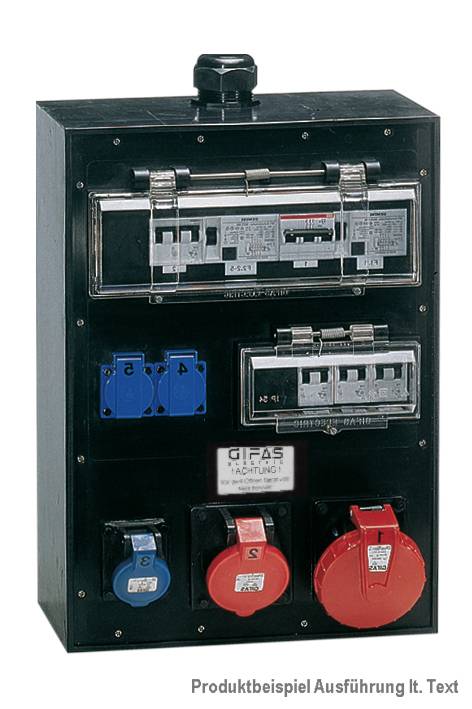

Gifas Electric CEE power distributor 294399
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: Without
- CEE-socket - 32 A: 4x32A5p400V
- CEE socket - 63 A: 1x63A5p400V
- CEE socket - 125A: Without
- Protection: LS-switch
- Diameter of cable entry M50
- Handling: Wall-mounting
- Product type
CEE power distributor
IP54
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3859280 Gifas Electric CEE power distributor 294399
Description
GIFAS solid rubber distributor type 7900 Input: 2 cable glands M 50 from below (outside of the feed line 24-38 mm)1 terminal block 10 pin, 50 qmm for placing and looping the supply line 5 x 63 qmm Output: 1 CEE-mounted socket 5 x 63 A/400 V secured via 1 LS-switch 50 A, 3-pin in C characteristic 4 CEE-built in sockets 5 x 32 A/400 V secured via 4 LS-switch 32 A, 3-pin in C-characteristic Design:- Protection organs behind 1 transparent protective flap arranged - distributor with LMC-profile rails equipped for wall mounting Dimensions: H x W x D = 54 x 360 x 173 mm Protection class: IP 500 Gl-Factor: 0.65 Weight: approx. 25 kg
