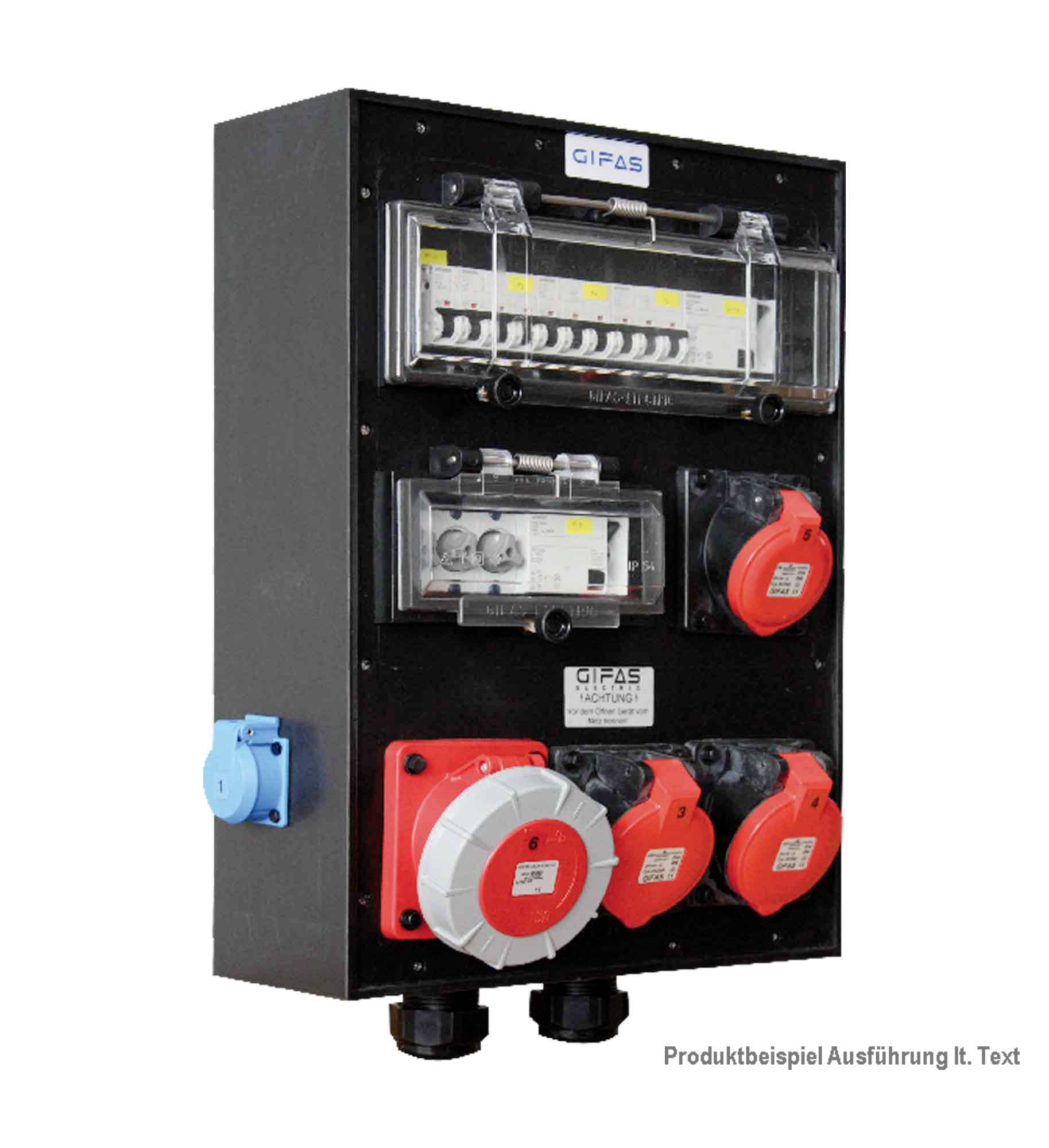

Gifas Electric CEE power distributor 294635
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: > 4x16A3P230V
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Protection: LS-switch
- Residual current type A
- Diameter of cable entry: M32
- Handling: Wall-mounting
- Product type
CEE power distributor
IP54
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3859281 Gifas Electric CEE power distributor 294635
Description
GIFAS solid-rubber distributor 7800 Dimensions: H x B x T = 500 x 360 x 133 mmProtection type: IP 65Gl factor: 0.5 Weight: Approx. 25 kg Input: 1 cable gland M 32 from the bottom (outer diameter of the feed line 14-25 mm) and 1 terminal block 5-pin, 16 mm2 for attaching the feed cable output: 1 CEE-Receptacle plug 5 x 32 A/400 V, IP 67 protected via 1 circuit breakers 32 A, 3 pin in C-Characteristic 5 CEE-Mounting sockets 3 x 16 A/230 V, IP 67 secured via 5 circuit breakers 16 A, 1 pin in C-Characteristic 1 Residual current circuit breaker 40/0.03 A, 4 pin for all Socket design: Protective systems behind 1 Transparent protective flap mounted distributor with LMC-profile rail for wall mounting
