Image similar

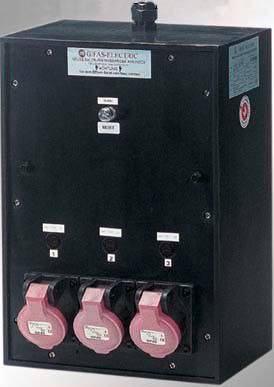

Gifas Electric CEE power distributor 39T10001112P #211250 211250
EAN:
Part number:
Item no:
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
3
- Nominal output voltage
42 V
IP54
- Weight
18 kg
- Dim
(W x H x D) 250 x 360 x 173 mm
- Width
250 mm
- Height
360 mm
- Outputs (CEE power distributors)
CEE connector (3-pin, 16 A)
- Content
1 pc(s)
- Depth
173 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2755078 Gifas Electric CEE power distributor 39T10001112P #211250 211250
Description
Solid rubber distribution 3900 with isolating transformer 1000 VA 230/42 V, 50 Hz, according to VDE 0570 Dimensions: H x B x T = 360 x 250 x 173 mm Protection type: IP 54 GL factor: 0.47 Weight: Approx. 18 kg Input: 1 cable gland M 20 from the top (external diameter d. Feed line 7-14 mm) Output: 3 CEE-solid rubber sockets 2 x 16 A/42 V secured via fine fuses 16 A Integrated: 1 thermal overcurrent protection switch 5 A on the primary side
