Gifas Electric CEE power distributor 39T200001ETAESBPO4 211245
EAN:
Part number:
Item no:
Technical specifications
- Product type
CEE power distributor
- No. of PG sockets
1
- Nominal output voltage
230 V
IP54
- Weight
24 kg
- Dim
(W x H x D) 250 x 360 x 173 mm
- Width
250 mm
- Height
360 mm
- Outputs (CEE power distributors)
PG connector
- Content
1 pc(s)
- Depth
173 mm
- UKCA
not relevant
Description

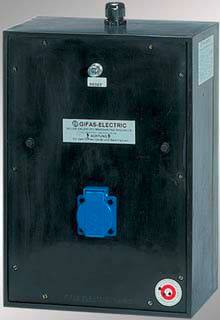

Solid rubber distribution 3900 with isolating transformer 2000 VA 230/230 V, 50 Hz, according to VDE 0570 Dimensions: H x B x T = 360 x 250 x 173 mm Protection type: IP 54 Weight: Approx. 24 kg Input: 1 cable gland M 20 from the top (external diameter d. Supply line 7-14 mm) Output: 1 safety socket without protection Installation: 1 ETA-switch 10.0 A, as thermal overload protection on the primary side 1 inrush current limiter 230 V, 50 Hz Design: Distributor with LMC-profile rails equipped for the wall mounting with sign: Caution! Protective isolation transformer, only connect 1 consumer to each socket.
