Gifas Electric CEE power distributor 39T250001ETAESB11 236690
EAN:
Part number:
Item no:
Technical specifications
- Product type
CEE power distributor
- No. of PG sockets
1
- Nominal output voltage
230 V/50 Hz
IP54
- Cable length
3 m
- Weight
27 kg
- Dim
(W x H x D) 250 x 360 x 173 mm
- Width
250 mm
- Height
360 mm
- Outputs (CEE power distributors)
PG connector
- Content
1 pc(s)
- Depth
173 mm
- UKCA
not relevant
Description

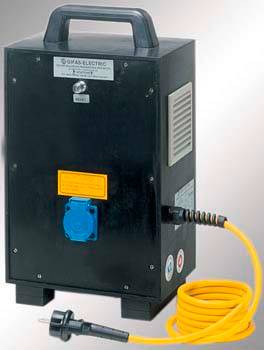

Solid rubber distribution 3900 with isolating transformer 2500 VA primary : 230 V/ 50 Hz secondary: 230 V/ 50 Hz Galvanically separated windings, according to VDE 0570 Dimensions: H x B x T = 360 x 250 x 173 mm Protection class: IP 54 Weight: Approx. 27 kg Input: 3 m GIFAS-Proflex-07 Cable 2 x 1.5 qmm with contour plug Output: 1 safety socket without secondary side protection Mounting: 1 ETA-switch 12.0 A, as thermal overload protection on the primary side 1 inrush current limiter 230 V, 50 Hz Design: Distributor with 1 rubber transport handle above and adjustable feet as well as with ventilation grilles equipped distributor with indicator: Attention! Protective isolation transformer, only connect 1 consumer to each socket.
