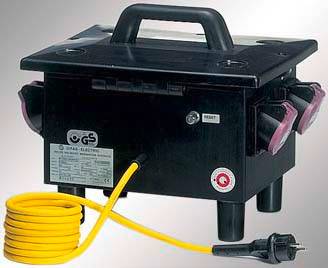

Gifas Electric CEE power distributor 67T10004X12P #208897 208897
EAN:
Part number:
Item no:
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
4
- Nominal output voltage
42 V
IP54
- Cable length
3 m
- Weight
19 kg
- Dim
(L x W x H) 350 x 350 x 305 mm
- Length
350 mm
- Width
350 mm
- Height
305 mm
- Content
1 pc(s)
- Depth
280 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2755051 Gifas Electric CEE power distributor 67T10004X12P #208897 208897
Description
Solid rubber distribution 6700 with safety transformer 1000 VA, 230/42 V according to VDE 0570 Dimensions: H x B x T = 305 x 350 x 280 mm Protection class: IP 54 GL factor: 0.5 Weight: Approx. 19 kg Input: 3 m GIFAS-Proflex-07 line 2 x 1.5 qmm with contour plug Output: 4 CEE sockets 2 x 16 A/42 V pair-wise secured via fine fuses 16 A built-in: 1 thermal overload switch 5 A on the primary side, with GS symbol 99234
