Gifas Electric CEE power distributor 79T20006X12P #211255 211255
EAN:
Part number:
Item no:
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
6
- Nominal output voltage
42 V
IP54
- Weight
28 kg
- Dim
(L x W x H) 500 x 500 x 360 mm
- Length
500 mm
- Width
500 mm
- Height
360 mm
- Content
1 pc(s)
- Depth
173 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2755129 Gifas Electric CEE power distributor 79T20006X12P #211255 211255
Description

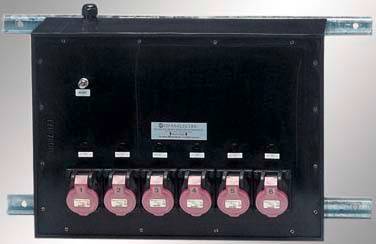

Solid rubber distribution 7900 with safety transformer 2000 VA 230/42 V, 50 Hz, according to VDE 0570 Dimensions: H x B x T = 360 x 500 x 173 mm Protection class: IP 54 Weight: Approx. 28 kg Input: 1 cable gland M 20 from above (external diameter d. Supply line 7-14 mm) Output: 6 CEE-Mounting sockets 2 x 16 A/42 V secured via fine fuses 16 A Mountings: 1 thermal overcurrent protection switch 10 A on the primary side 1 switch-on current limiter 230 V, 50 Hz Design: Distributor equipped with LMC-profile rails for the wall mounting
