Name: Gigabyte B550 X EAGLE AM4 4xDDR4 HDMI Motherboard Form factor (details) ATX
Brand: Gigabyte
SKU: 3813100

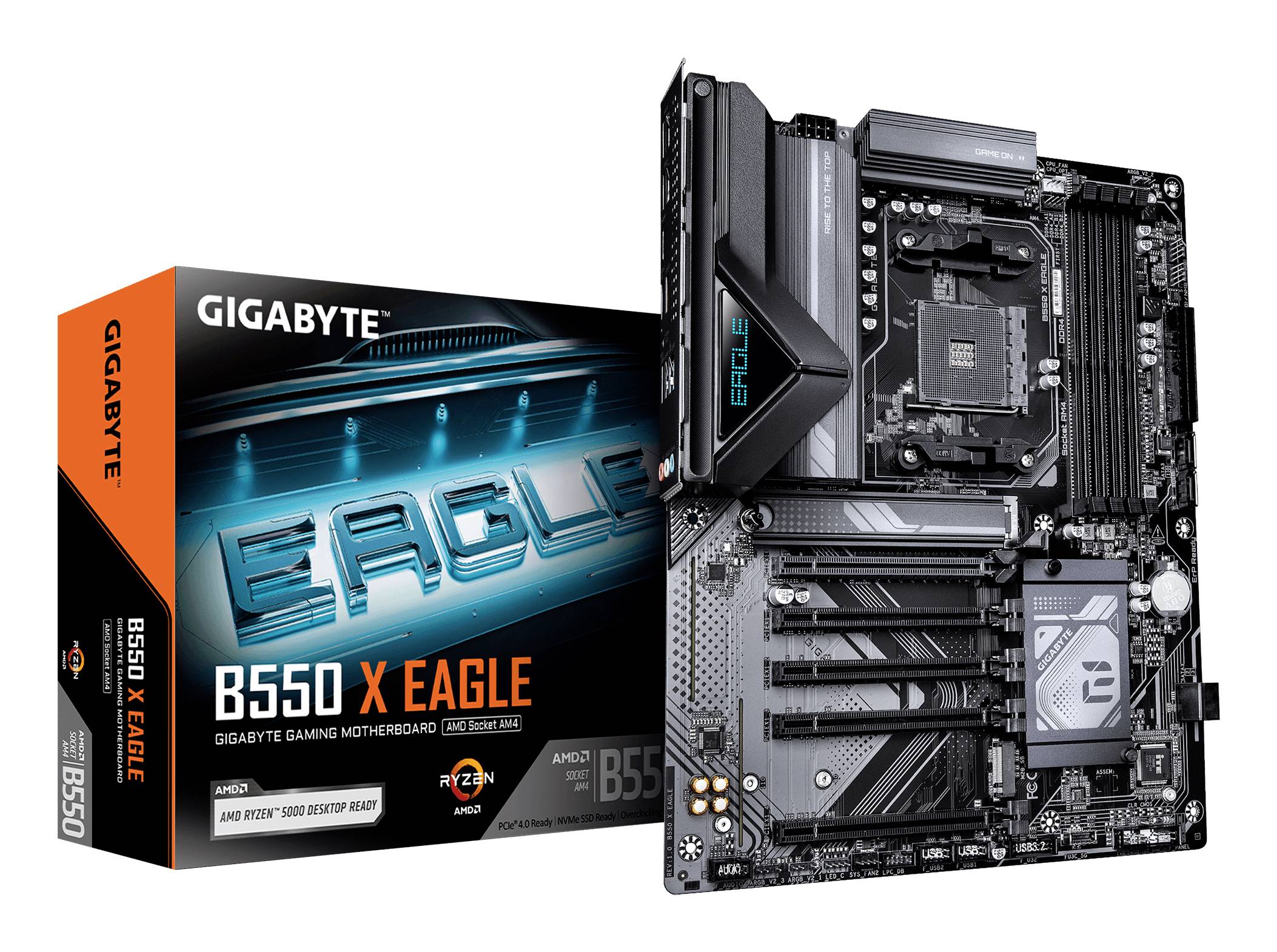

Gigabyte B550 X EAGLE AMD gaming motherboard shown with retail box and board front view.<br>

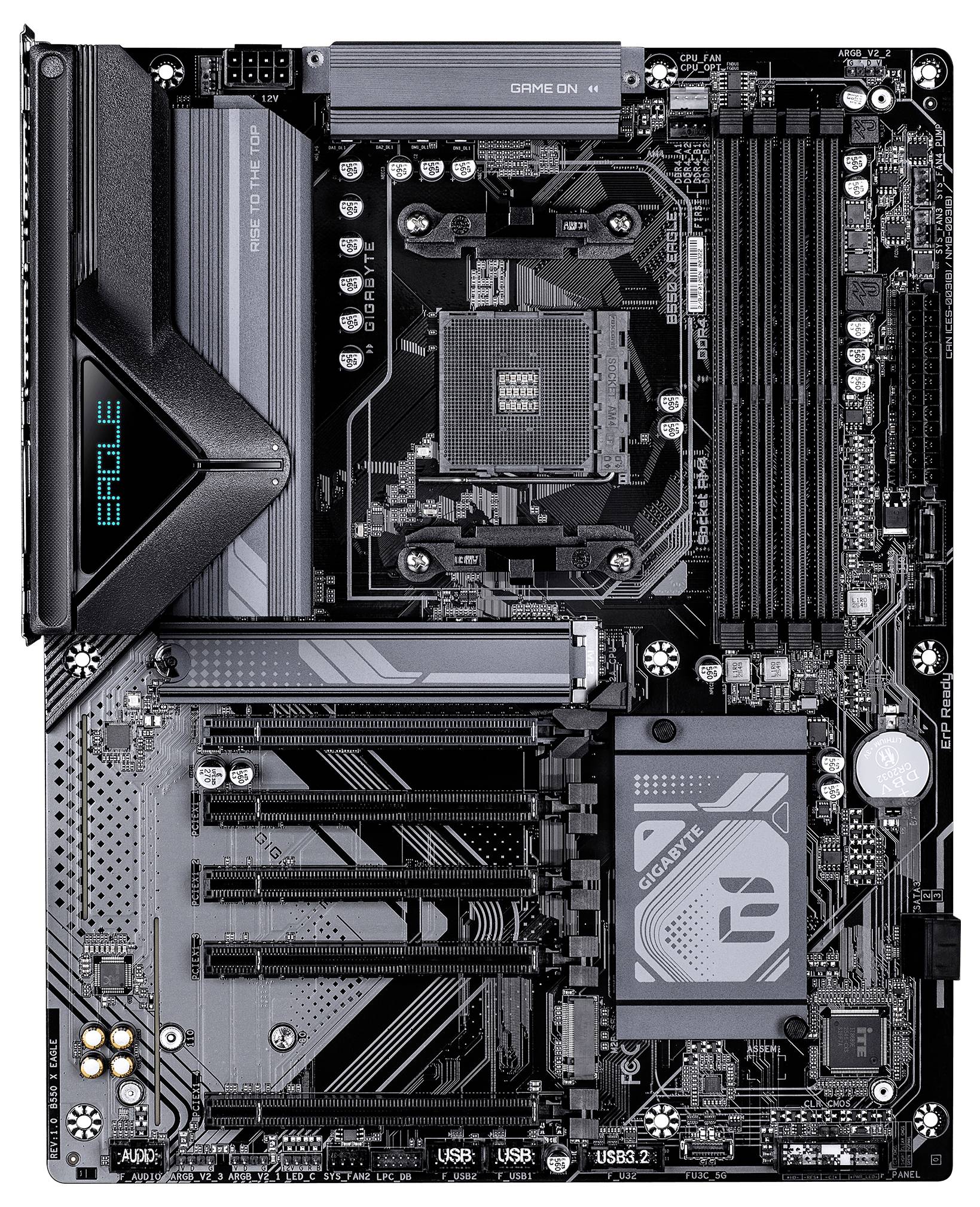

Top view of a Gigabyte EAGLE motherboard with CPU socket, RAM slots, PCIe slots, heatsinks, and power connectors visible.

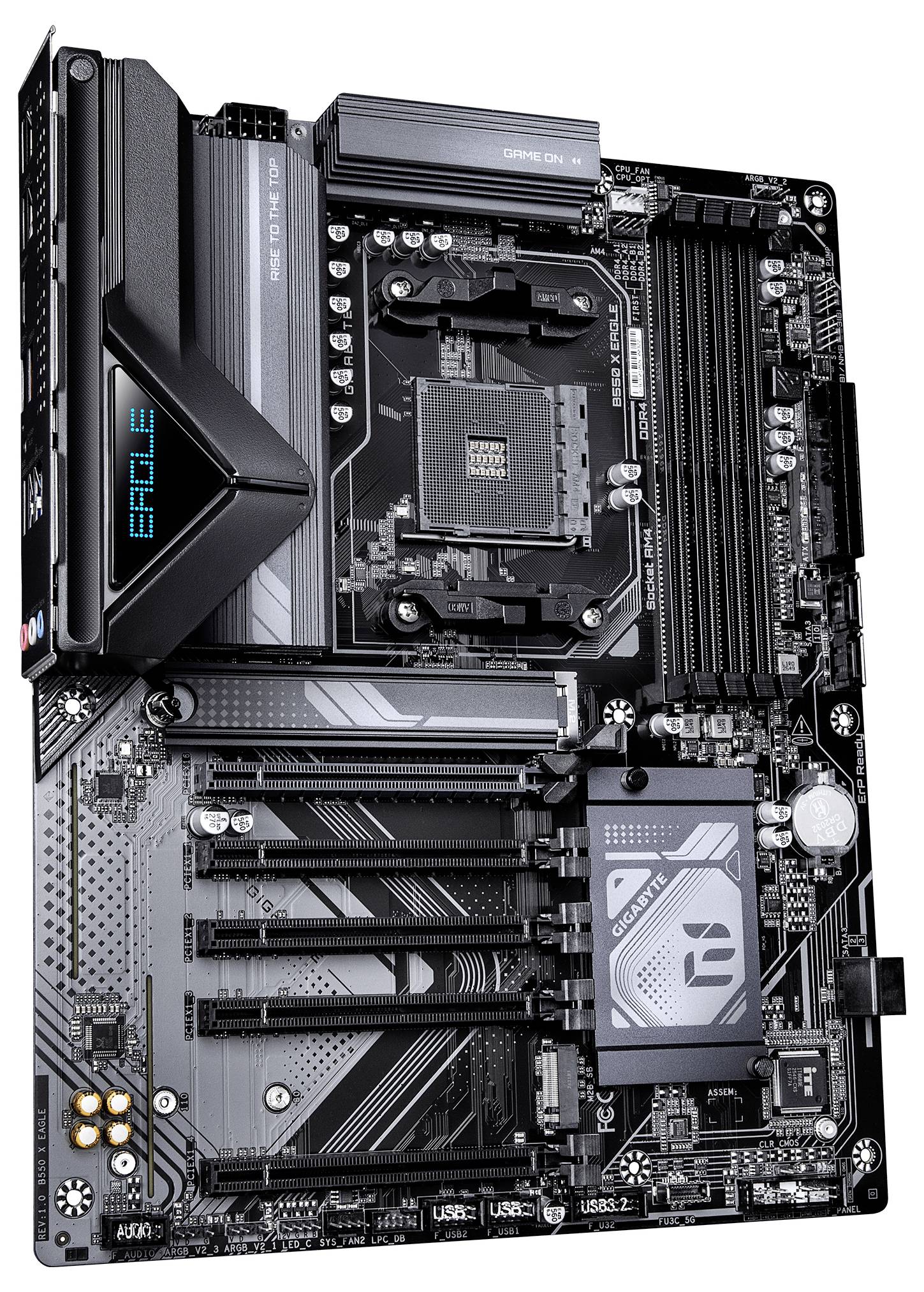

A computer motherboard with CPU socket, RAM slots, PCIe slots, storage connectors, and a large CPU cooler assembly on the left.

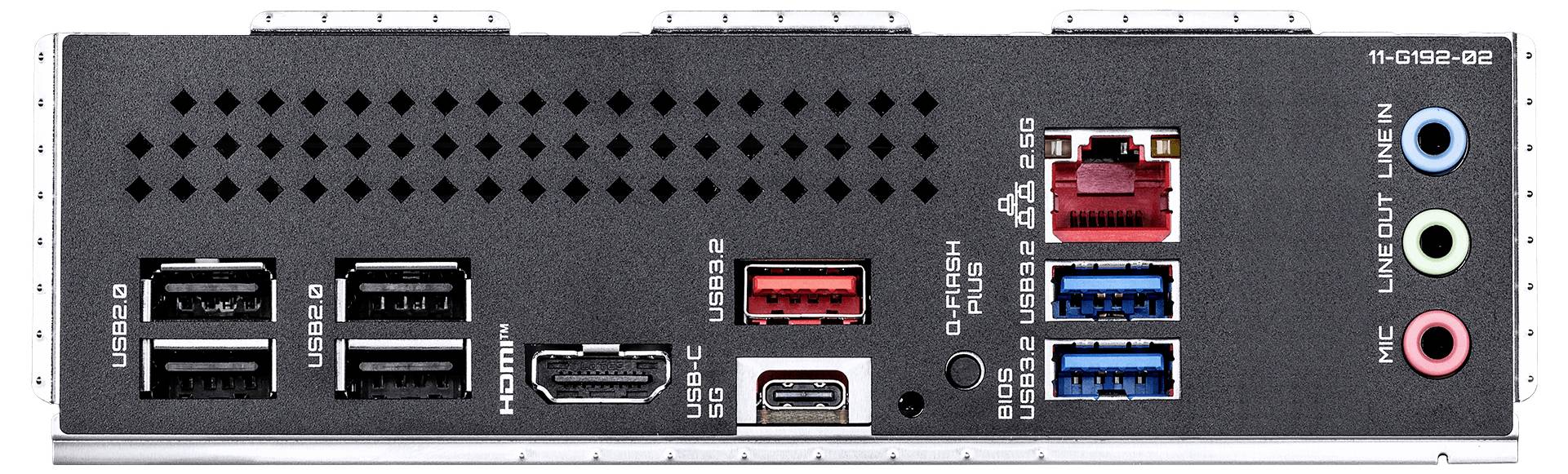

Rear motherboard I/O panel with USB ports, HDMI, Ethernet, audio jacks, and a display output port.

1/4

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Gigabyte B550 X EAGLE AM4 4xDDR4 HDMI Motherboard

AMD socket AM4 AMD Ryzen 5000 series, AMD Ryzen 3000 series, AMD Ryzen 4000 series
PC ATX AMD B550 Realtek ALC897 7.1 channels
DDR4 SDRAM 4 DIMM RAM maximum: 128 GB
HDD & SSD M.2, NVMe, PCI Express 3.0, PCI Express 4.0, SATA RAID-support Number of supported storage drives: 6
BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
2.5 Gigabit Ethernet

Technical specifications

Socket AM4
Supported processor slots: Socket AM4
HDMI Version 2.1
AMD B550 motherboard chipset
Product color: Dark brown
Battery technology: Lithium-manganese dioxide (LiMnO2)

Product type: Motherboard

Form factor: ATX

RAM type: DIMM

RAM / Max. upgrade: 128 GB

No. of PCIe 3.0 x16: 4 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of SATA III ports: 4 x

Depth: 244 mm

Height: 35 mm

Width: 305 mm

Display resolution: 4096 x 2160 Pixel

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 4 x

No. of USB type A 3.1 / 3.2 1st Gen: 2 x

No of. USB type A 3.1 /3.2 2nd gen: 1 x

Christmas lighting features: 12.0

Cooling: Passive

HDCP: Yes

Battery capacity: 220 mAh

10/100/1000 Mbps ports: 1 x

Software included: Norton® Internet Security (OEM version)

Range of use: PC

Weight: 1.33 kg

Wi-Fi: No

UKCA: yes

BIOS memory size: 128 Mbit

Screws included: yes

Line-in: yes

Ethernet LAN: yes

Number of memory slots: 4

Number of M.2 (M) slots: 2

Products per shipping (inner) case: 1 Stück(e)

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Headphone outputs: 1

Front panel connector: yes

12V power connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

RGB LED pin header: yes

Supported memory clock speed (max): 3200 MHz

Lithium weight per battery: 0.07 g

: 4

: 2

: 2

: 1

: 32 GB

Battery weight: 3 g

Batteries included: yes

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 2.76 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Unbuffered memory: yes

Clear CMOS jumper: yes

Number of storage drives supported: 6

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3813100 Gigabyte B550 X EAGLE AM4 4xDDR4 HDMI Motherboard Form factor (details) ATX

Description

Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With innovative Design and most modern functions, these boards impress with their excellent performance and reliability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and guarantee excellent quality and the latest technologies.
