Gigabyte B550M GAMING X WIFI6 Motherboard PC base AMD AM4 Form factor (details) Micro-ATX Motherboard chipset AMD® B550
EAN:
Part number:
Item no:
Highlights & Details

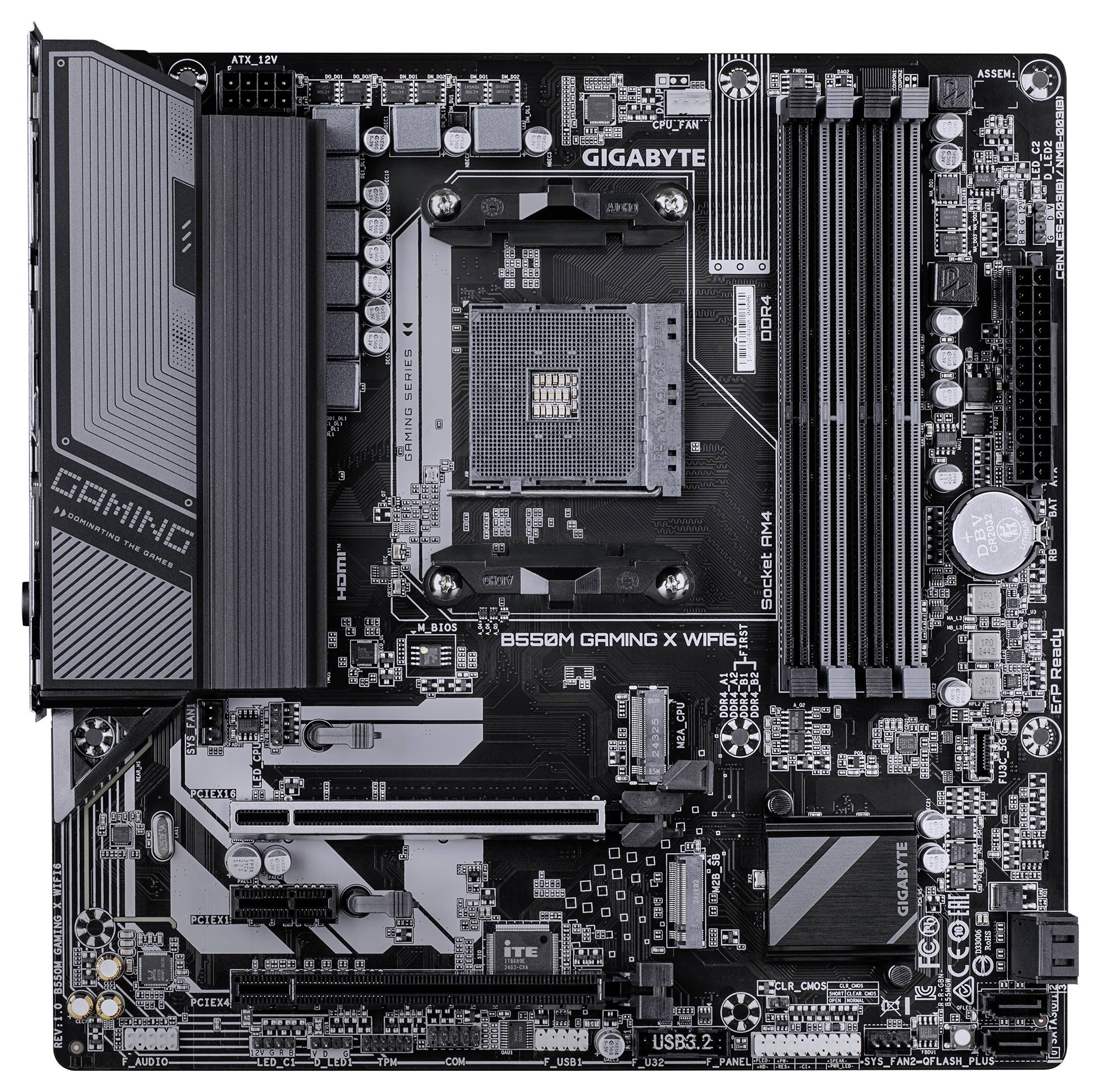

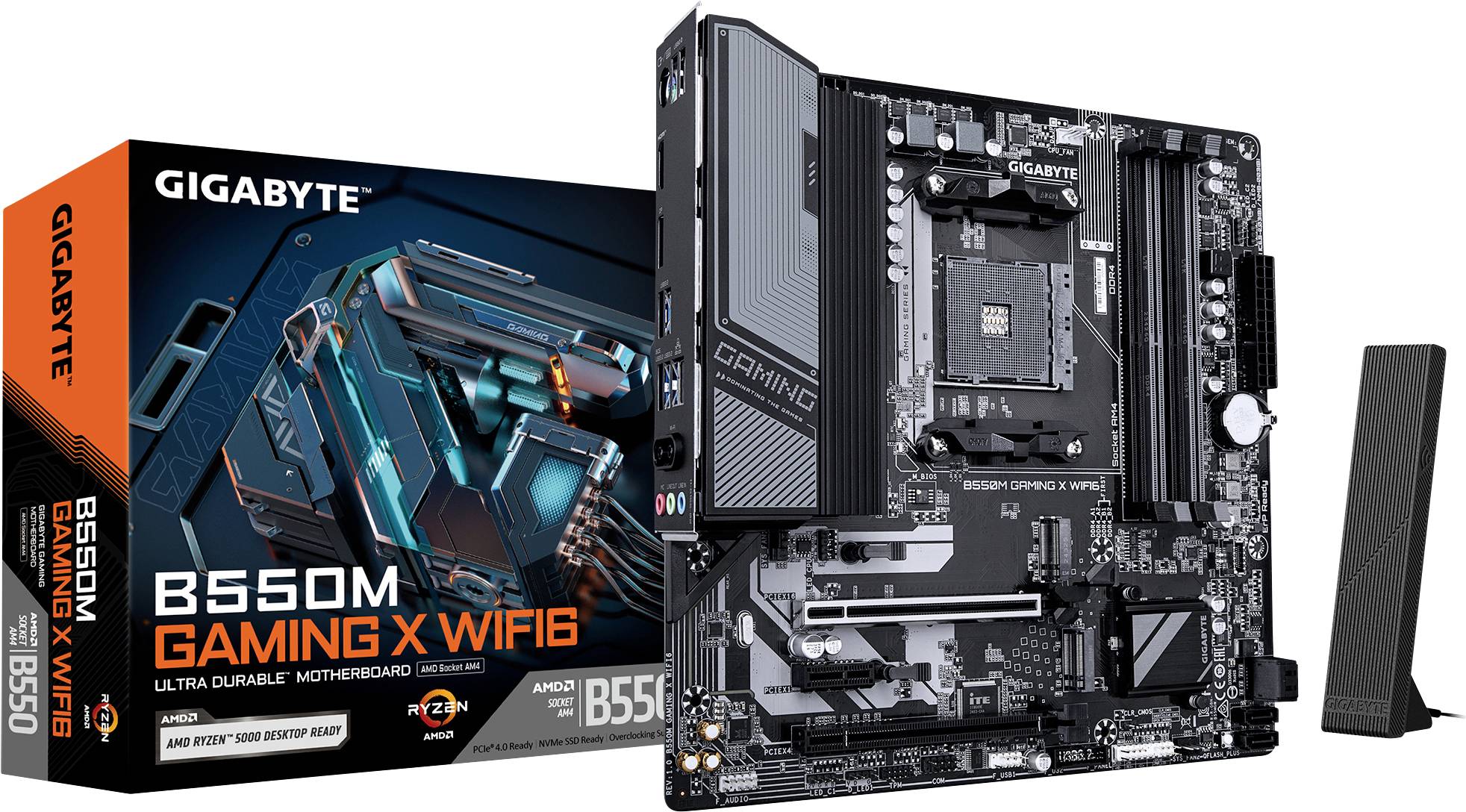

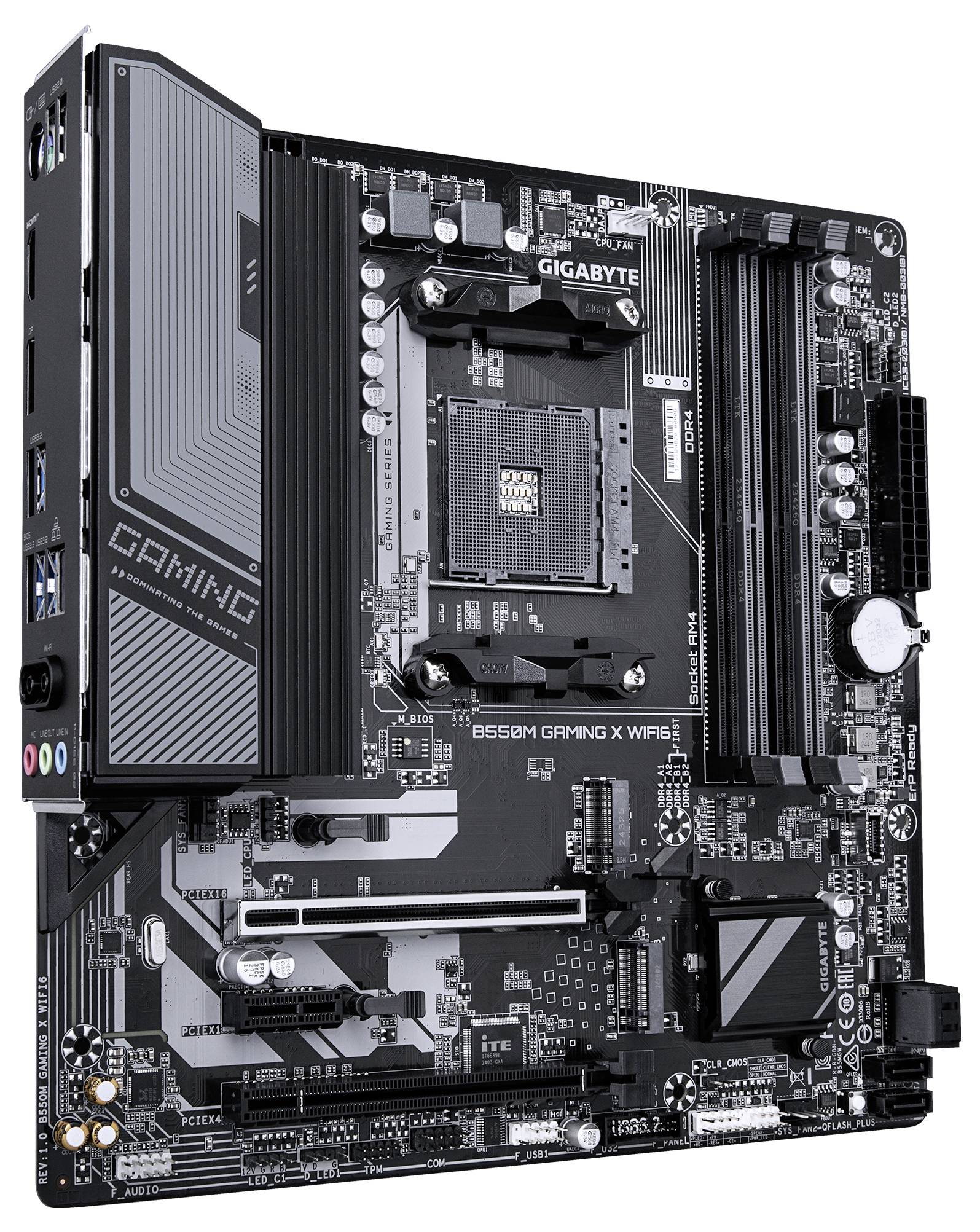

Gigabyte B550M GAMING X WIFI6 Motherboard
- AMD socket AM4 AMD Ryzen 3000 series, AMD Ryzen 4000 series, AMD Ryzen 5000 series
- PC micro ATX AMD B550 Realtek ALC1220-VB 7.1 channels
- DDR4 SDRAM 4 DIMM RAM maximum: 128 GB
- HDD & SSD M.2, PCI Express 3.0, PCI Express 4.0, SATA III RAID-support Number of supported storage drives: 6
- BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
- Gigabit Ethernet WLAN Wi-Fi 6 (802.11ax) Bluetooth 5.3
Technical specifications
- Socket AM4
- Supported processor slots: Socket AM4
- ECC compatibility: ECC and non-ECC
- Maximum internal memory per slot: 32 GB
- Number of CPU fan ports: 1
- Number of EPS power connections (4-pin): 1
- Number of RGB LED pin strips: 5
- HDMI version 2.1
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
- AMD B550 motherboard chipset
- Product color: Dark brown
- Motherboard form factor: Micro ATX
- 1. M.2 Largest key size: 2280
- 1. M.2 highest PCI Express generation: 4.0
- 2. M.2 Largest key size: 2280
- 2. M.2 highest PCI Express generation: 3.0
- Battery technology: Lithium-manganese dioxide (LiMnO2)
- Product type
Motherboard
- Chipset
AMD® B550
AMD AM4
- Form factor
Micro-ATX
- RAM type
DDR4 SDRAM
- RAM / Max. upgrade
128 GB

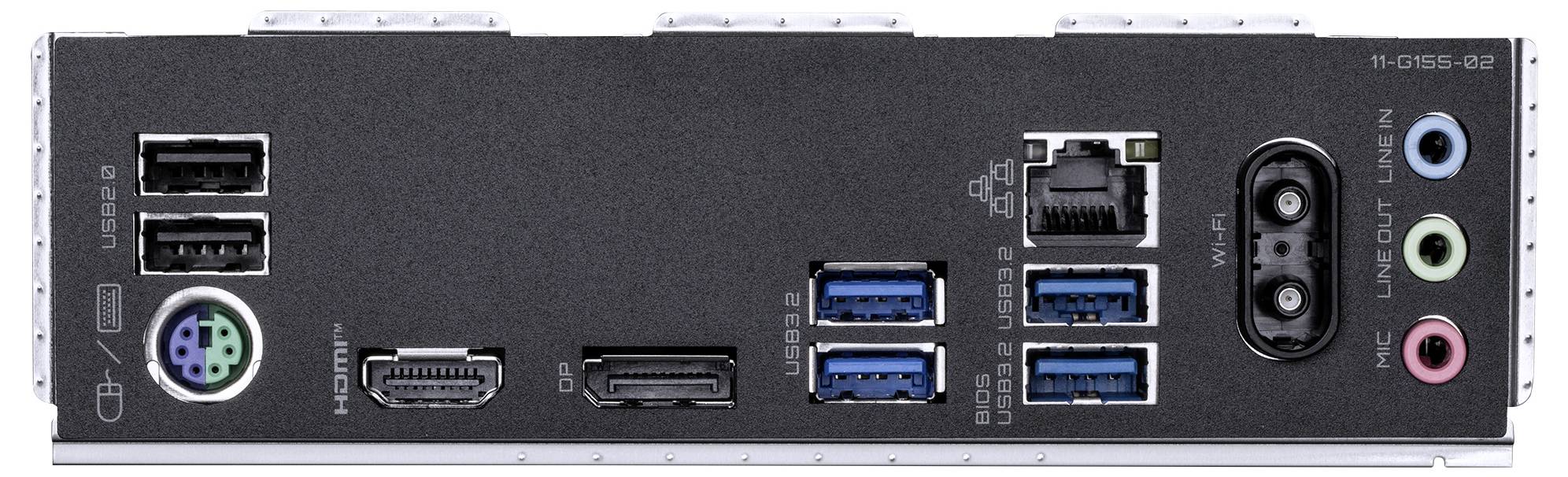

- Interfaces
DisplayPort
HDMI™
PCIe 3.0 x16
PCIe 4.0 x16
PS/2
SATA III
USB A (USB 2.0)
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
1 x
- No. of SATA III ports
4 x
- No. of PS/2 ports
1 x
- Bluetooth
5.3
- Bluetooth
Yes
- Factory colour
Multicolour
- Depth
244 mm
- Height
35 mm
- Width
244 mm
- Display resolution
5120 x 2880 Pixel
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
2 x
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Christmas lighting features
12.0
- Cooling
Passive
- 10/100/1000 Mbps ports
1 x
- Software included
Norton® Internet Security (OEM version)
LAN bandwidth management software
- Range of use
PC
- Weight
1.14 kg
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
128 Mbit
- Screws included
yes
- Line-in
yes
- Ethernet LAN
yes
- Antenna included
yes
- PCI Express x1 (Gen 3.x) slots
1
- Number of memory slots
4
- Number of M.2 (M) slots
2
- Products per shipping (inner) case
1 Stück(e)
- Headphone outputs
1
- Microphone in
yes
- Front panel connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Front panel audio connector
yes
- Number of HDDs supported
4
- WiFi-AP antenna jack
2
- TPM connector
yes
- RGB LED pin header
yes
- Supported memory clock speed (max)
3200 MHz
- Lithium weight per battery
0.07 g
- Battery weight
3 g
- Batteries included
yes
- HDCP
yes
- EPS power connector (8-pin)
yes
- RAID support
yes
- Package weight
1.24 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
- Unbuffered memory
yes
- Serial port headers
1
- Clear CMOS jumper
yes
- Number of storage drives supported
6
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3405628 Gigabyte B550M GAMING X WIFI6 Motherboard PC base AMD AM4 Form factor (details) Micro-ATX Motherboard chipset AMD® B550
Description
Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With thoughtful design and advanced features, these boards offer reliable performance and high stability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and convince by high processing quality and support of the latest technologies.
This text is machine translated.
This text is machine translated.
Features
- AMD socket AM4: Supports AMD Ryzen™ processors 5000 / 4000 / 3000 series, digital twin 5+3 phase VRM solution, Dual channel DDR4: 4 DIMMs,Wi-Fi EZ plug: Simple design for quick installation of the WLAN antenna,EZ-Latch: PCIe slots with quick-release mechanism,fast memory connection: 2 M.2 slots, including PCIe 4.0 x1,efficient thermal design: With VRM Thermal Advanced,Fast Ethernet connection: GbE LAN & Wi-Fi 6 Versatile connectivity: HDMI, DisplayPort, UD PCIe slots: PCIe 4.0 x16 with 10 times stability for graphics cards and improved heat dissipation
