Gigabyte B760M DS3H GEN5 Motherboard PC base #####Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel®

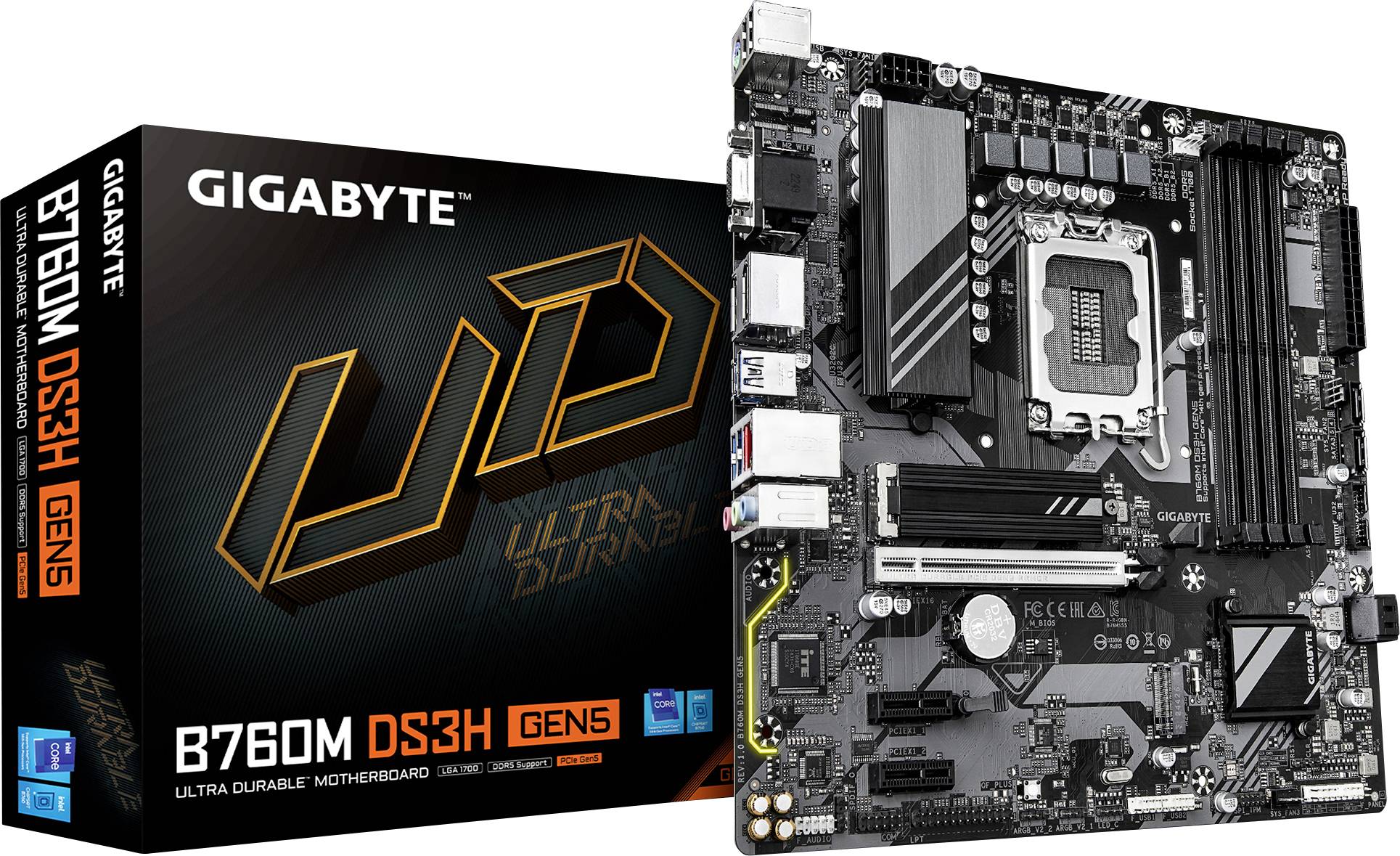

'GIGABYTE B760M DS3H Gen5 Ultra Durable Motherboard' shown in packaging and close-up view, highlighting ports and components.

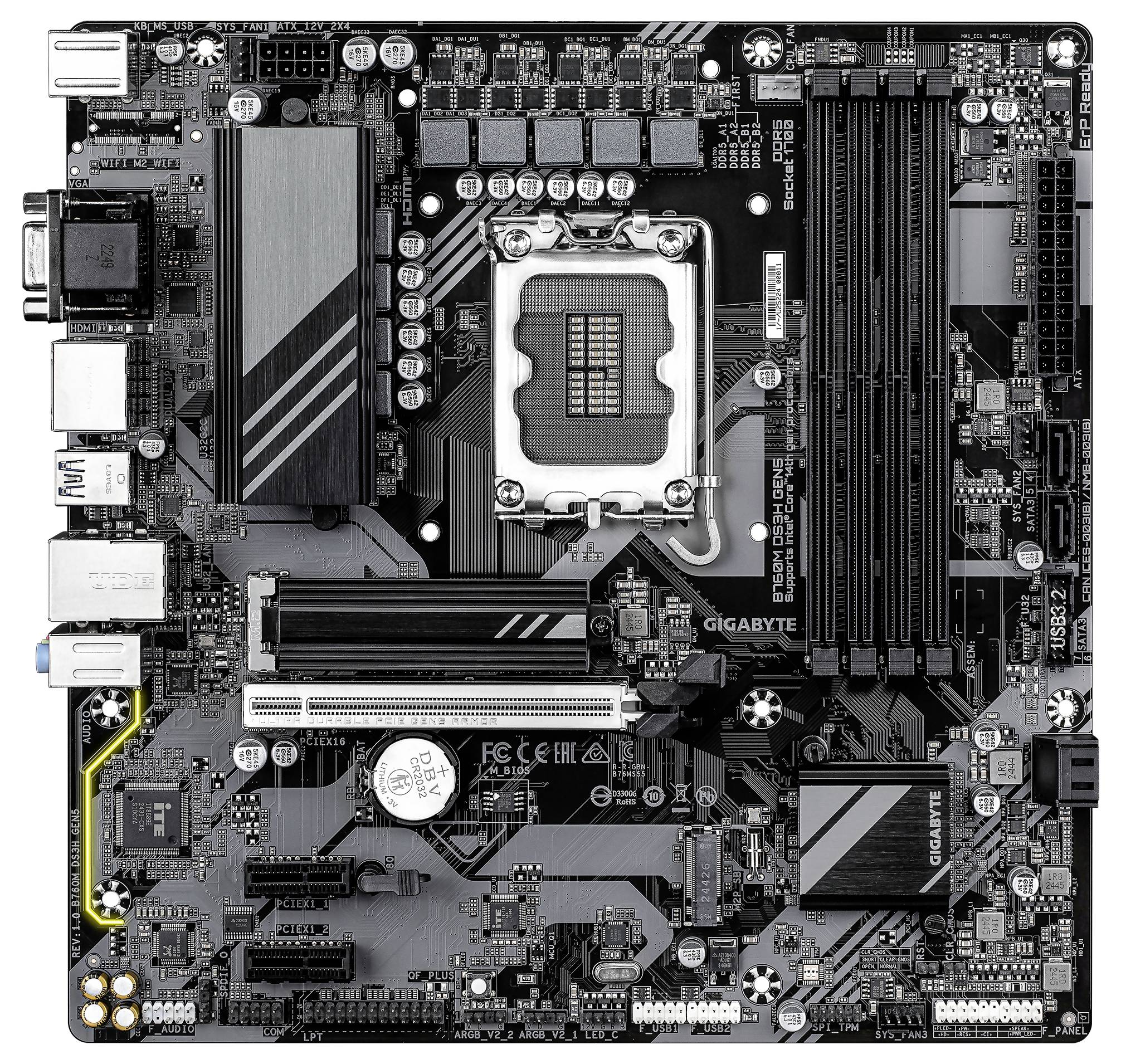

A computer motherboard with multiple slots for RAM, PCIe expansion, and integrated circuitry. Includes labels like 'GIGABYTE'.

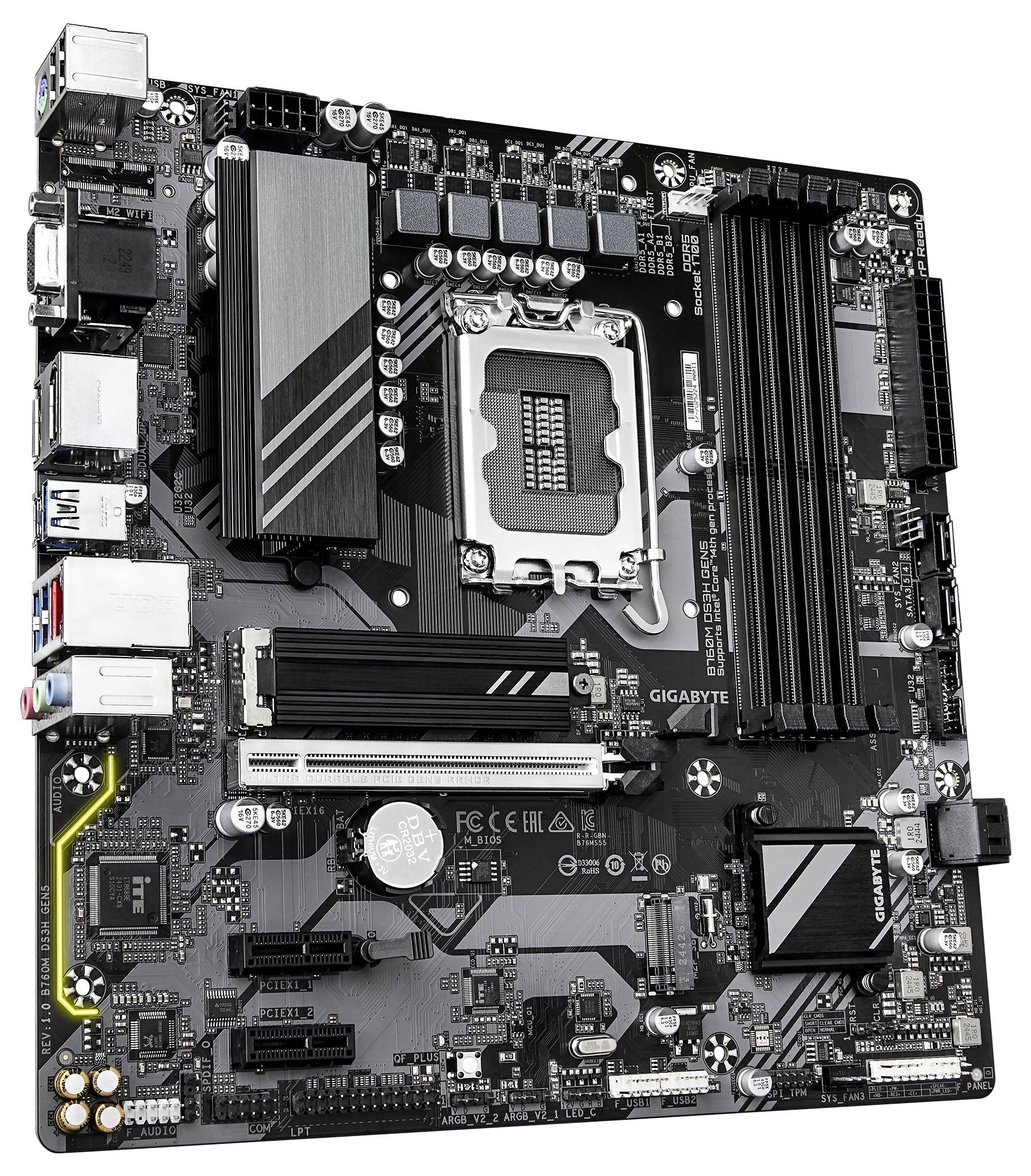

A computer motherboard displaying PCIe slots, RAM slots, and various connectors. Central CPU socket shown without a processor.

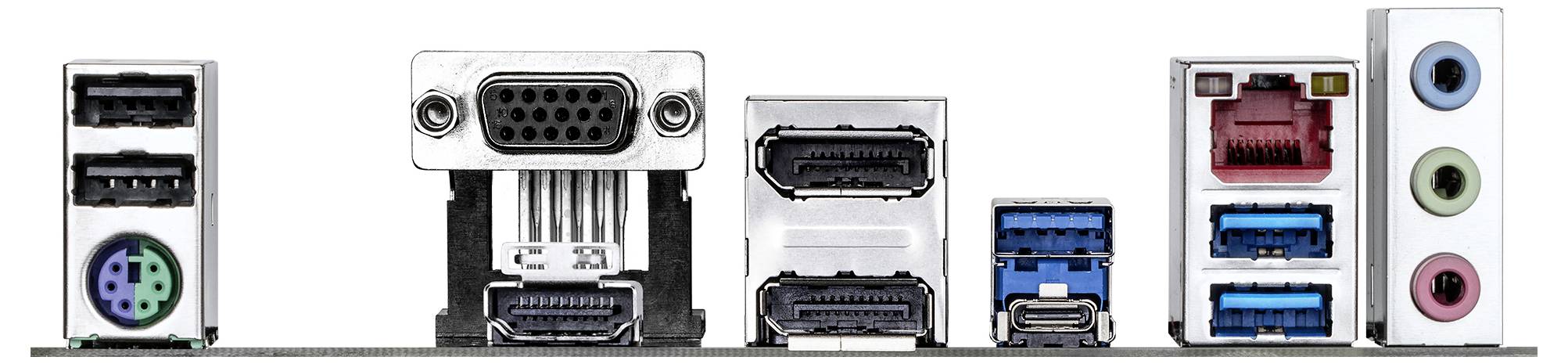

Various computer ports, including USB, VGA, HDMI, Ethernet, and audio jacks, in a row on the back of a computer motherboard.
1/4
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Gigabyte B760M DS3H GEN5 Motherboard

  • Intel LGA 1700 Intel® Celeron®, Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 14th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel core i9 14th Gen, Intel® Pentium® Gold
  • PC micro ATX Intel B760 Express Realtek ALC897 7.1 channels
  • DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
  • HDD & SSD M.2, PCI Express 4.0, SATA III RAID-support Number of supported storage drives: 6
  • BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
  • 2.5 Gigabit Ethernet

Technical specifications

  • LGA 1700 processor socket
  • Compatible processors: Intel® Celeron®, Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 14th Gen, Intel core i7 12th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel® Pentium Gold
  • Supported processor slots: LGA 1700
  • Supported memory: DDR5 SDRAM
  • ECC compatibility: ECC and non-ECC
  • Maximum internal memory per slot: 64 GB
  • Number of CPU fan ports: 1
  • Number of EPS power connections (4-pin): 1
  • Number of RGB LED pin strips: 3
  • HDMI version 2.1
  • Motherboard Intel B760 Express chipset
  • Product color: Dark brown
  • Motherboard form factor: Micro ATX
  • 1. M.2 Largest key size: 2280
  • 1. M.2 highest PCI Express generation: 4.0
  • 2. M.2 Largest key size: 2280
  • 2. M.2 highest PCI Express generation: 4.0
  • Battery technology: Lithium-manganese dioxide (LiMnO2)
Product type

Motherboard

Chipset

Intel® B760 Express

#####Intel® 1700

Form factor

Micro-ATX

RAM type

DIMM

RAM / Max. upgrade

256 GB

Interfaces

USB A (USB 2.0)

USB A (USB 3.1 2nd gen)

DisplayPort

HDMI™

PS/2

VGA

No. of Gigabit LANs

1 x

No. of PCIe 3.0 x16

1 x

No. of USB 2.0 ports

2 x

No. of USB 3.2 2nd Gen (USB 3.1)

1 x

No. of SATA III ports

4 x

No. of PS/2 ports

1 x

Depth

244 mm

Height

35 mm

Width

244 mm

Display resolution

4096 x 2304 Pixel

No. of DisplayPort

2 x

No. of HDMI ports

1 x

No. of VGA ports

1 x

No. of USB A 2.0 ports

2 x

No. of USB type A 3.1 / 3.2 1st Gen

3 x

Christmas lighting features

12.0

Cooling

Passive

Software included

Norton® Internet Security (OEM version)

Range of use

PC

Weight

960 g

Wi-Fi

No

UKCA

yes

BIOS memory size

128 Mbit

Screws included

yes

Line-in

yes

Ethernet LAN

yes

PCI Express x1 (Gen 3.x) slots

2

Number of memory slots

4

Number of M.2 (M) slots

2

Products per shipping (inner) case

1 Stück(e)

Headphone outputs

1

Microphone in

yes

Front panel connector

yes

12V power connector

yes

S/PDIF out connector

yes

CPU fan connector

yes

ATX Power connector (24-pin)

yes

Front panel audio connector

yes

Number of HDDs supported

4

TPM connector

yes

RGB LED pin header

yes

Supported memory clock speed (max)

5600 MHz

Lithium weight per battery

0.07 g

Battery weight

3 g

Batteries included

yes

HDCP

yes

EPS power connector (8-pin)

yes

RAID support

yes

Package weight

1.04 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Parallel connector

yes

Unbuffered memory

yes

Serial port headers

1

Clear CMOS jumper

yes

Number of storage drives supported

6

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3454958 Gigabyte B760M DS3H GEN5 Motherboard PC base #####Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel®

Description

Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With thoughtful design and advanced features, these boards offer reliable performance and high stability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and convince by high processing quality and support of the latest technologies.

This text is machine translated.

Features

  • PCIe Gen5 performance: Fast data transfer for responsive gaming
  • Supports Intel core processors of 14./13./12. Generation
  • EZ-Latch: PCIe 5.0 x16 slot with quick release design
  • PCIe UD slot: SMD PCIe 5.0 Armor for improved graphics card stability
  • Powerful hybrid VRM solution with 6+2+1 phases
  • Dual channel DDR5: 4 DIMMs supporting XMP memory modules
  • Fast network connection: 2.5 GbE LAN
  • Next generation memory connectivity: 2 M.2 slots with PCIe 4.0 x4
  • Extensive connectivity options: USB-C port with 10 GB/s at the rear side, DisplayPort, HDMI, D-Sub
  • Q-Flash Plus: BIOS update without installing the CPU, memory or graphics card
