Name: Gigabyte B840 EAGLE WF6E Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B840
Brand: Gigabyte
SKU: 3492150

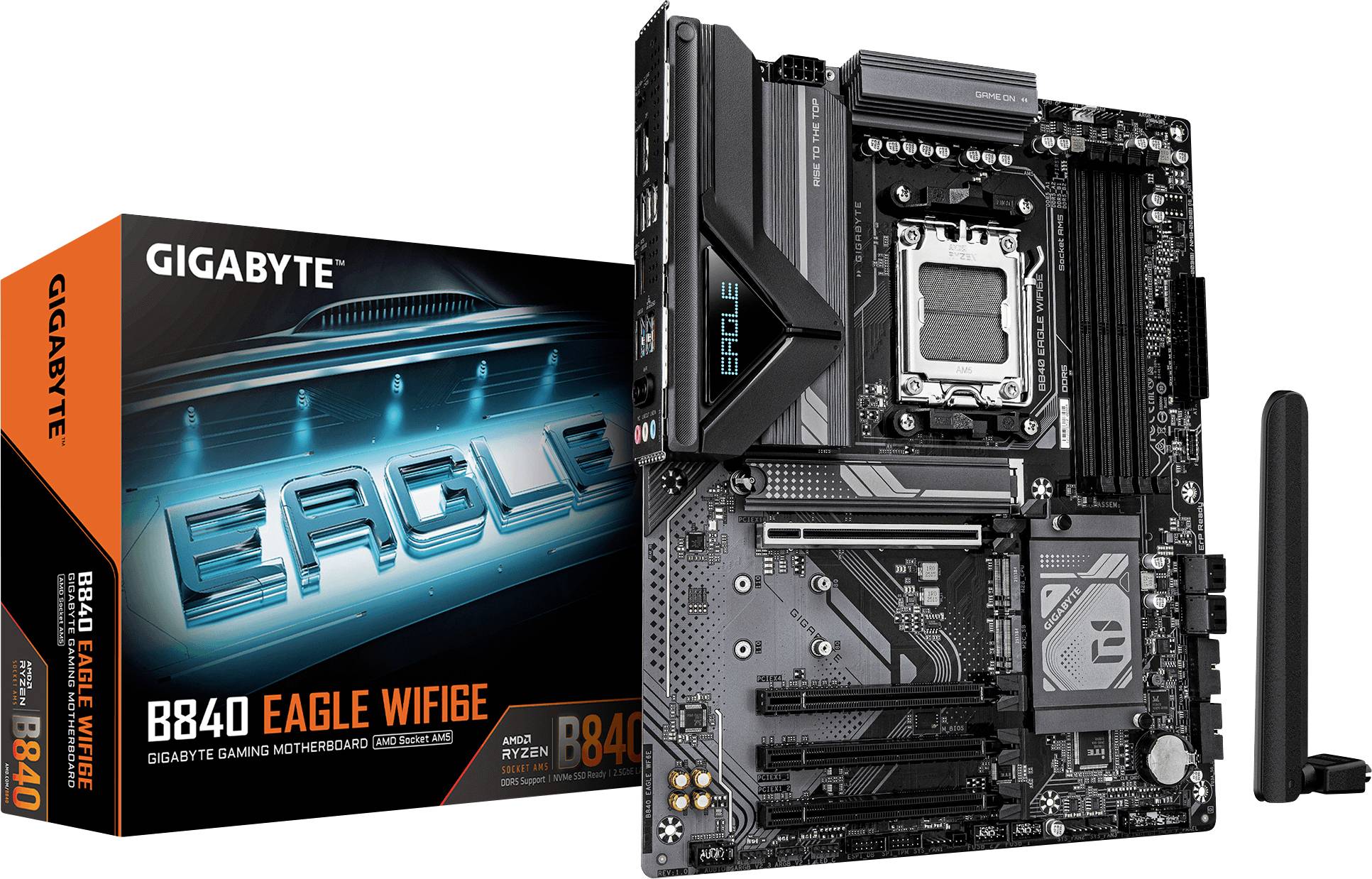

'GIGABYTE B840 Eagle WiFi motherboard showcased with box. Compatible with AMD Ryzen CPUs, highlighted features include WiFi and gaming design.'

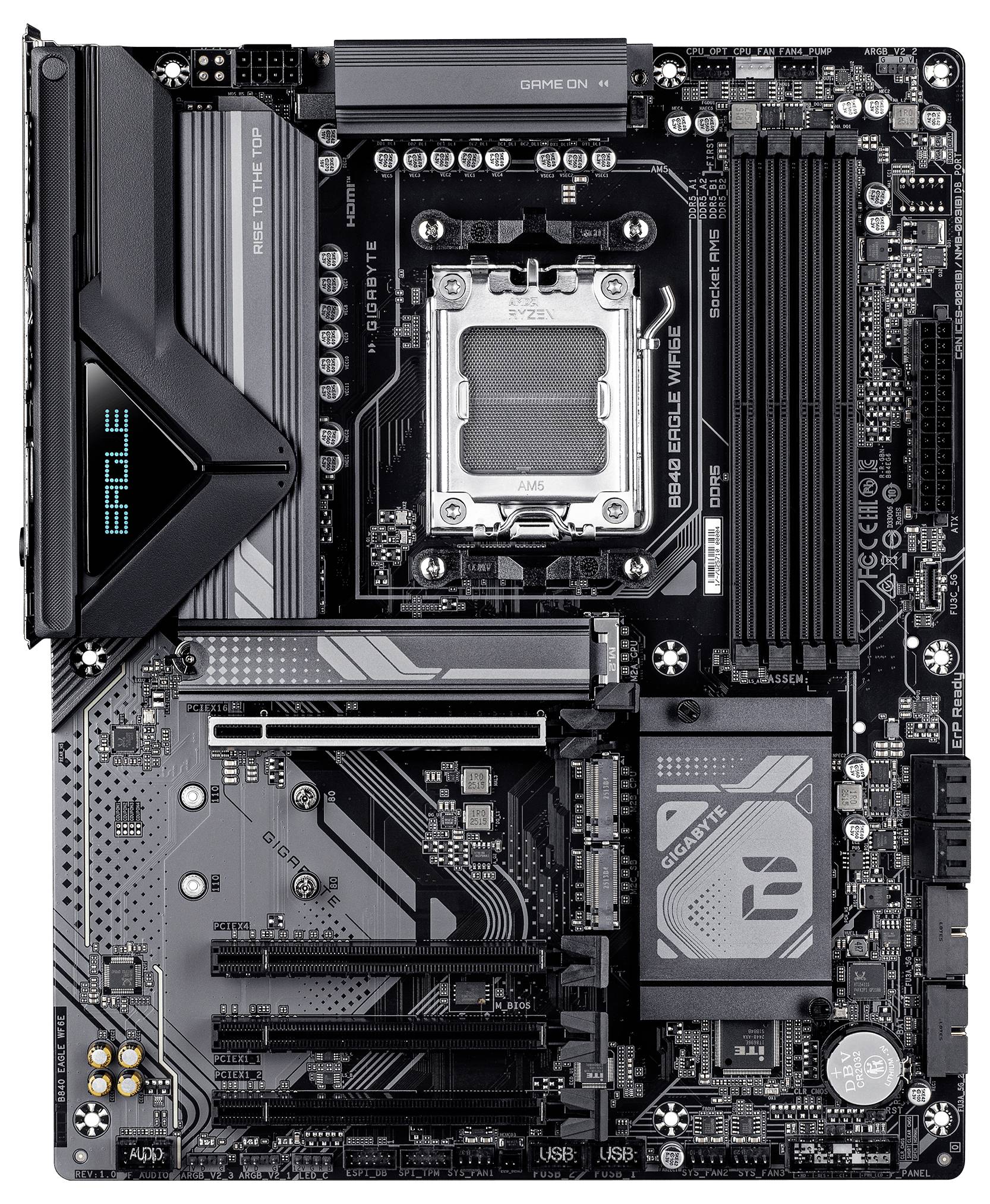

A black and silver computer motherboard with various slots and ports, designed for gaming and high-performance computing.

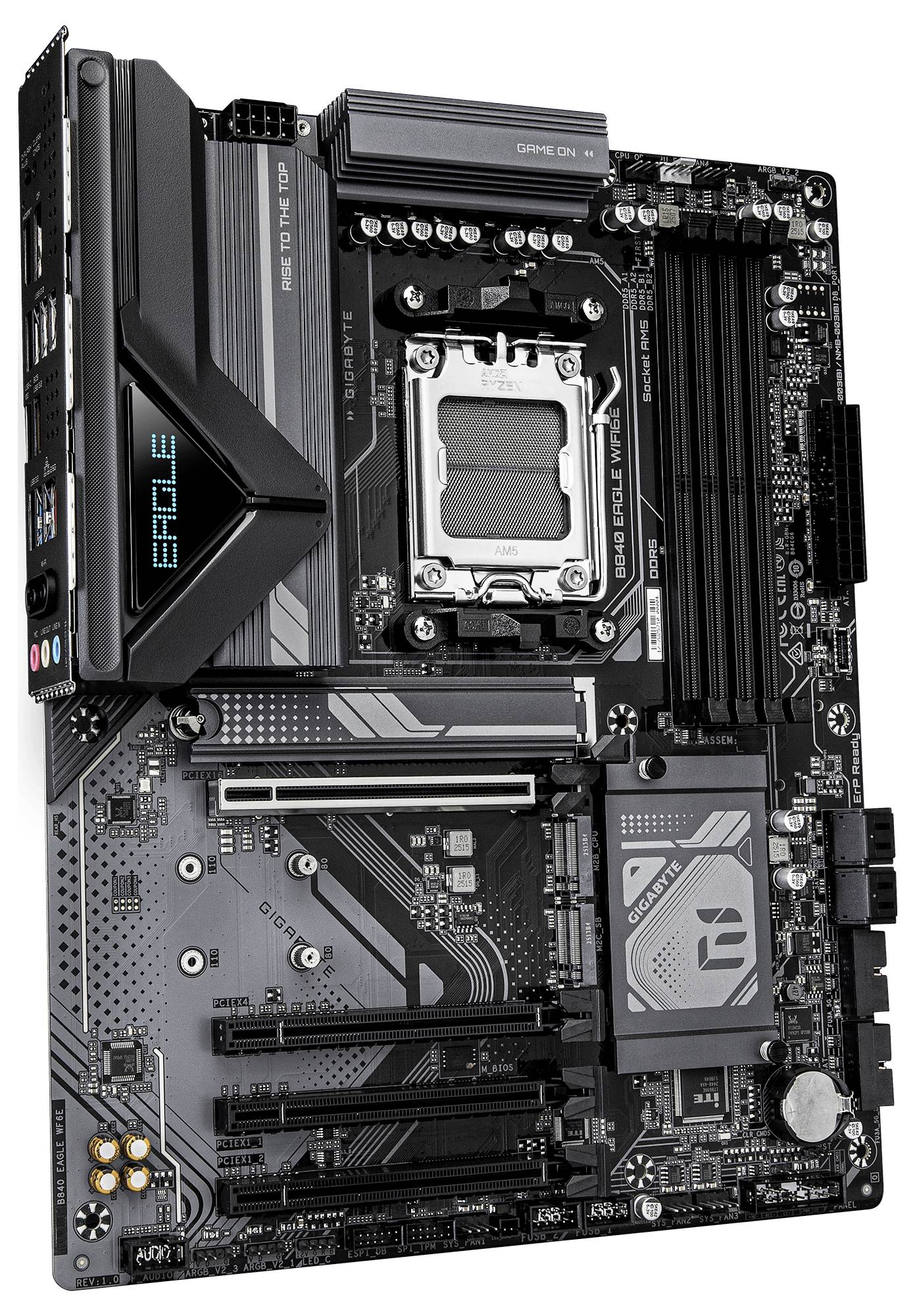

A black and gray computer motherboard with labeled slots for various components, including CPU, RAM, and other connectors.

1/3

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Gigabyte B840 EAGLE WF6E Motherboard

AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
PC ATX AMD B840 Realtek ALC897 7.1 channels
DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
HDD & SSD M.2, PCI Express 3.0, PCI Express 4.0, SATA III RAID-support Number of supported storage drives: 7
BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
2.5 Gigabit Ethernet WLAN Wi-Fi 6E (802.11ax) Bluetooth 5.3

Technical specifications

Socket AM5
Supported processor slots: Socket AM5
Supported memory: DDR5 SDRAM
ECC compatibility: Non-ECC
Maximum internal memory per slot: 64 GB
Number of CPU fan ports: 2
Number of EPS power connections (4-pin): 1
Number of water pump connections: 2
Number of RGB LED pin strips: 4
HDMI version 2.1
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax)
AMD B840 motherboard chipset
Product color: Dark brown
1. M.2 Largest key size: 25110
1. M.2 highest PCI Express generation: 4.0
2. M.2 Largest key size: 25110
2. M.2 highest PCI Express generation: 4.0
3. M.2 Largest key size: 25110
3. M.2 highest PCI Express generation: 3.0
Battery technology: Lithium-manganese dioxide (LiMnO2)

Product type: Motherboard

Chipset: AMD® B840

: #####AMD AM5

Form factor: ATX

RAM type: DIMM

RAM / Max. upgrade: 256 GB

Interfaces: Gigabit LAN (1 Gbps)
USB A (USB 2.0)
USB A (USB 3.1 1st gen)
USB A (USB 3.2 2nd gen)
HDMI™
DisplayPort

No. of PCIe 3.0 x16: 3 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of USB 3.2 2nd Gen (USB 3.1): 1 x

No. of SATA III ports: 4 x

Bluetooth: 5.3

Bluetooth: Yes

Depth: 244 mm

Height: 35 mm

Width: 305 mm

Display resolution: 4096 x 2160 Pixel

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 4 x

No. of USB type A 3.1 / 3.2 1st Gen: 2 x

No of. USB type A 3.1 /3.2 2nd gen: 1 x

Christmas lighting features: 12.0

Cooling: Passive

10/100/1000 Mbps ports: 1 x

Software included: Norton® Internet Security (OEM version)

Range of use: PC

Weight: 1.64 kg

Wi-Fi: Yes

UKCA: yes

BIOS memory size: 256 Mbit

Screws included: yes

Line-in: yes

Ethernet LAN: yes

Antenna included: yes

Number of memory slots: 4

Number of M.2 (M) slots: 3

Products per shipping (inner) case: 1 Stück(e)

Headphone outputs: 1

Microphone in: yes

Front panel connector: yes

12V power connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

WiFi-AP antenna jack: 2

TPM connector: yes

RGB LED pin header: yes

Supported memory clock speed (max): 8200 MHz

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Batteries included: yes

HDCP: yes

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 1.87 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

Unbuffered memory: yes

Clear CMOS button: yes

Clear CMOS jumper: yes

Number of storage drives supported: 7

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3492150 Gigabyte B840 EAGLE WF6E Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B840

Description

Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With thoughtful design and advanced features, these boards offer reliable performance and high stability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and convince by high processing quality and support of the latest technologies.

This text is machine translated.
