Name: Gigabyte B860 DS3H LGA1851 MB 4xDDR5 Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset
Brand: Gigabyte
SKU: 3376526

Gigabyte B860 DS3H LGA1851 MB 4xDDR5 Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset -0

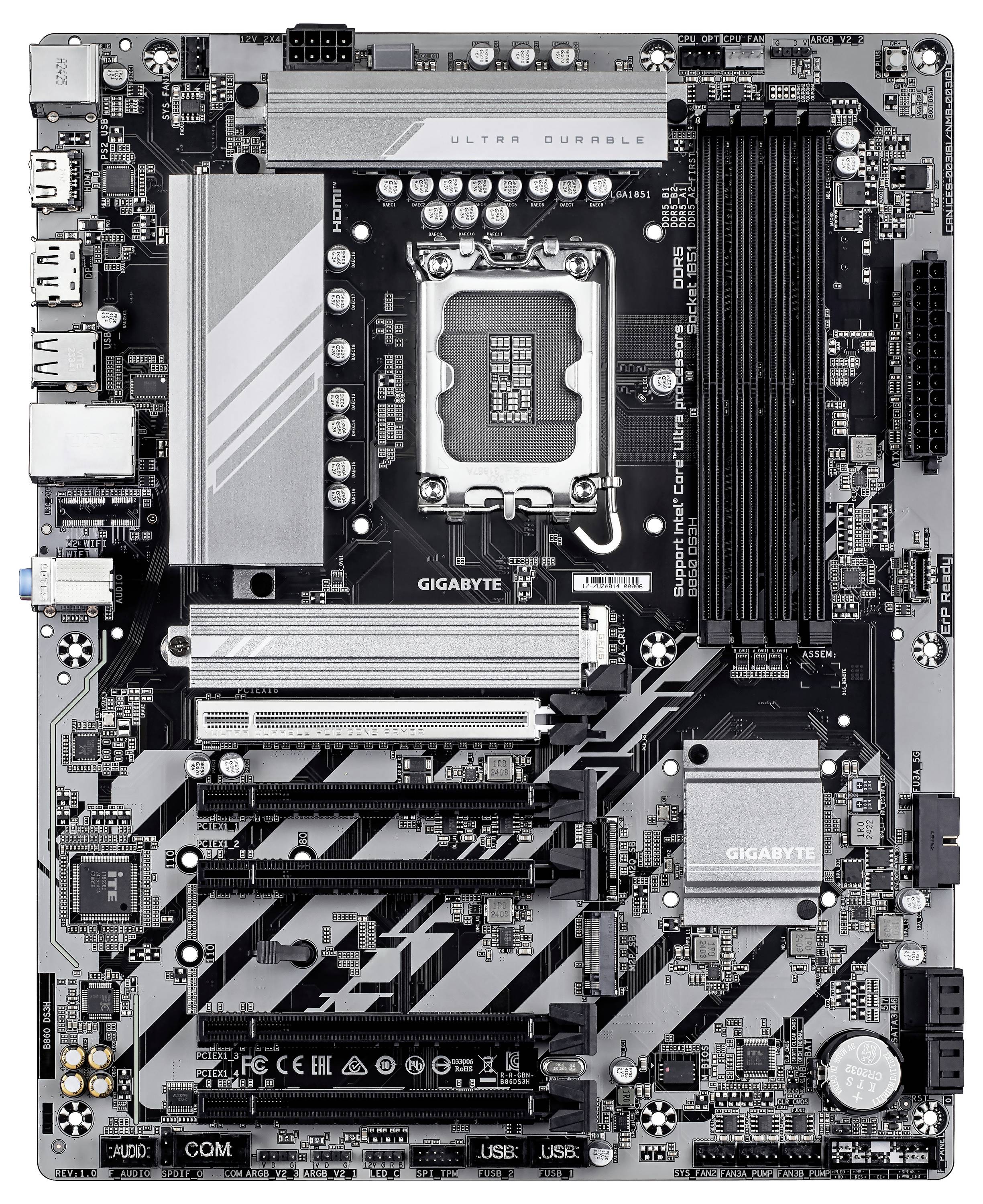

A computer motherboard featuring multiple slots for RAM, a CPU socket, PCI Express slots, and various connectors, designed for assembly in a PC.

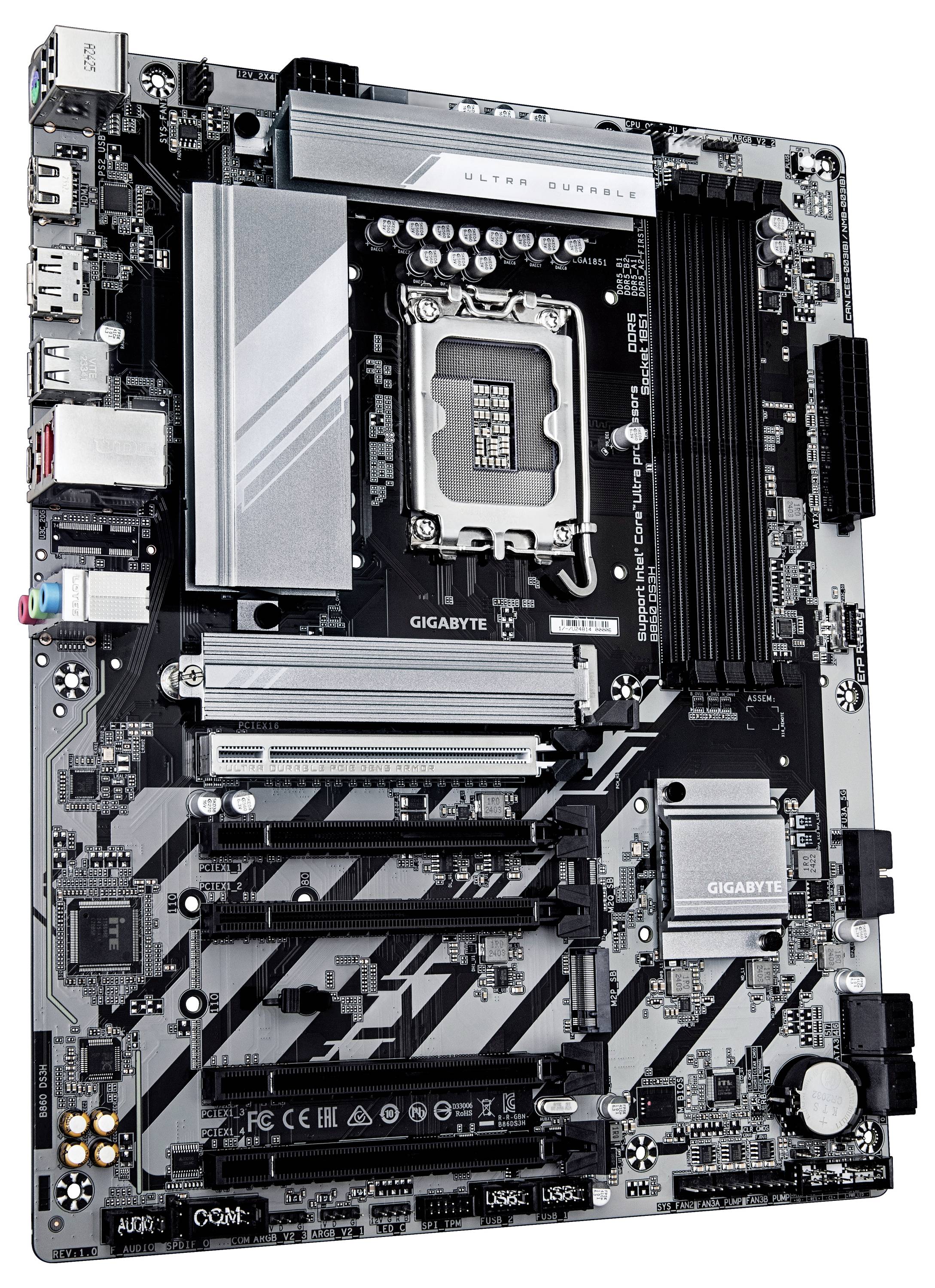

The image shows a Gigabyte motherboard with multiple slots and ports. It features a CPU socket, RAM slots, and heat sinks, along with various connectors for peripherals.

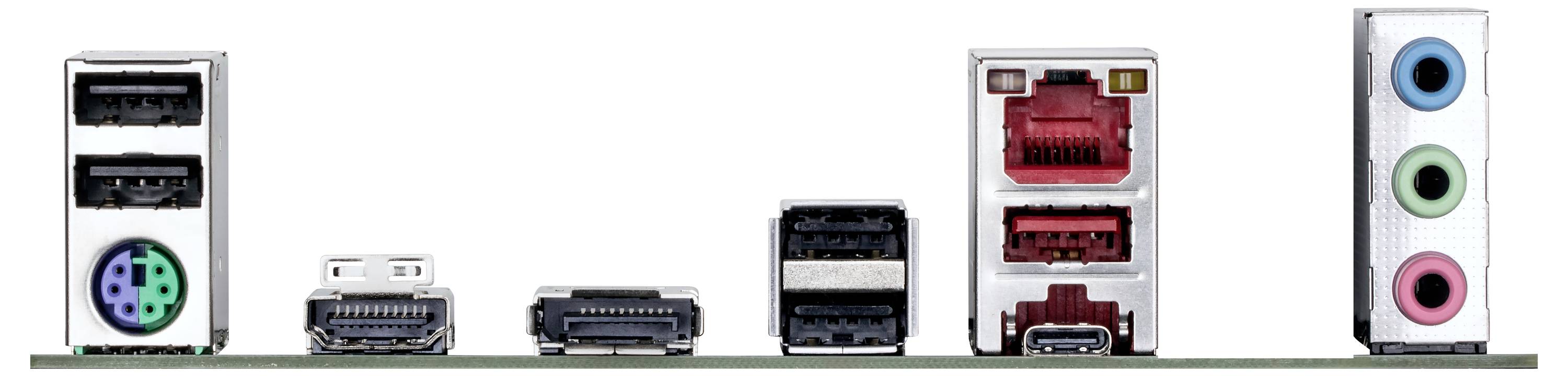

A series of computer ports on a motherboard, including USB, HDMI, Ethernet, and audio jacks, showing connections for various devices.

1/4

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Gigabyte B860 DS3H LGA1851 MB 4xDDR5 Motherboard

Intel LGA 1851 (socket V1) Intel core ultra (series 1), Intel core ultra (series 2)
PC ATX Intel B860 Realtek ALC897 7.1 channels
DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 6
BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
2.5 Gigabit Ethernet

Technical specifications

LGA 1851 (socket V1)
Supported processor slots: LGA 1851
ECC compatibility: ECC and non-ECC
Maximum internal memory per slot: 64 GB
Number of CPU fan ports: 2
Number of EPS power connections (4-pin): 1
Number of water pump connections: 3
Number of RGB LED pin strips: 4
HDMI version 2.1
Intel B860 motherboard chipset
1. M.2 Largest key size: 25110
1. M.2 highest PCI Express generation: 5.0
2. M.2 Largest key size: 25110
2. M.2 highest PCI Express generation: 4.0
Battery technology: Lithium-manganese dioxide (LiMnO2)

Product type: Motherboard

Chipset: Intel® B860

: #####Intel® 1851

Form factor: ATX

RAM type: DDR5 RAM

RAM / Max. upgrade: 256 GB

Interfaces: USB A (USB 2.0)
USB A (USB 3.1 2nd gen)
DisplayPort
HDMI™
PS/2
USB C®

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 4 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of USB 3.0 ports: 1 x

No. of SATA III ports: 4 x

No. of PS/2 ports: 1 x

Factory colour: Brown

Depth: 244 mm

Height: 35 mm

Width: 305 mm

Display resolution: 4096 x 2160 Pixel

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 4 x

No of. USB type A 3.1 /3.2 2nd gen: 1 x

Christmas lighting features: 12.0

Cooling: Passive

Software included: Norton® Internet Security (OEM version)
LAN bandwidth management software

Range of use: PC

Weight: 2 kg

Wi-Fi: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3376526 Gigabyte B860 DS3H LGA1851 MB 4xDDR5 Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset

Description

Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With innovative Design and most modern functions, these boards impress with their excellent performance and reliability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and guarantee excellent quality and the latest technologies.

This text is machine translated.
