Gigabyte Gigabyte GA-X870E AERO X3D DARK WOOD (AM Motherboard Form factor (details) ATX

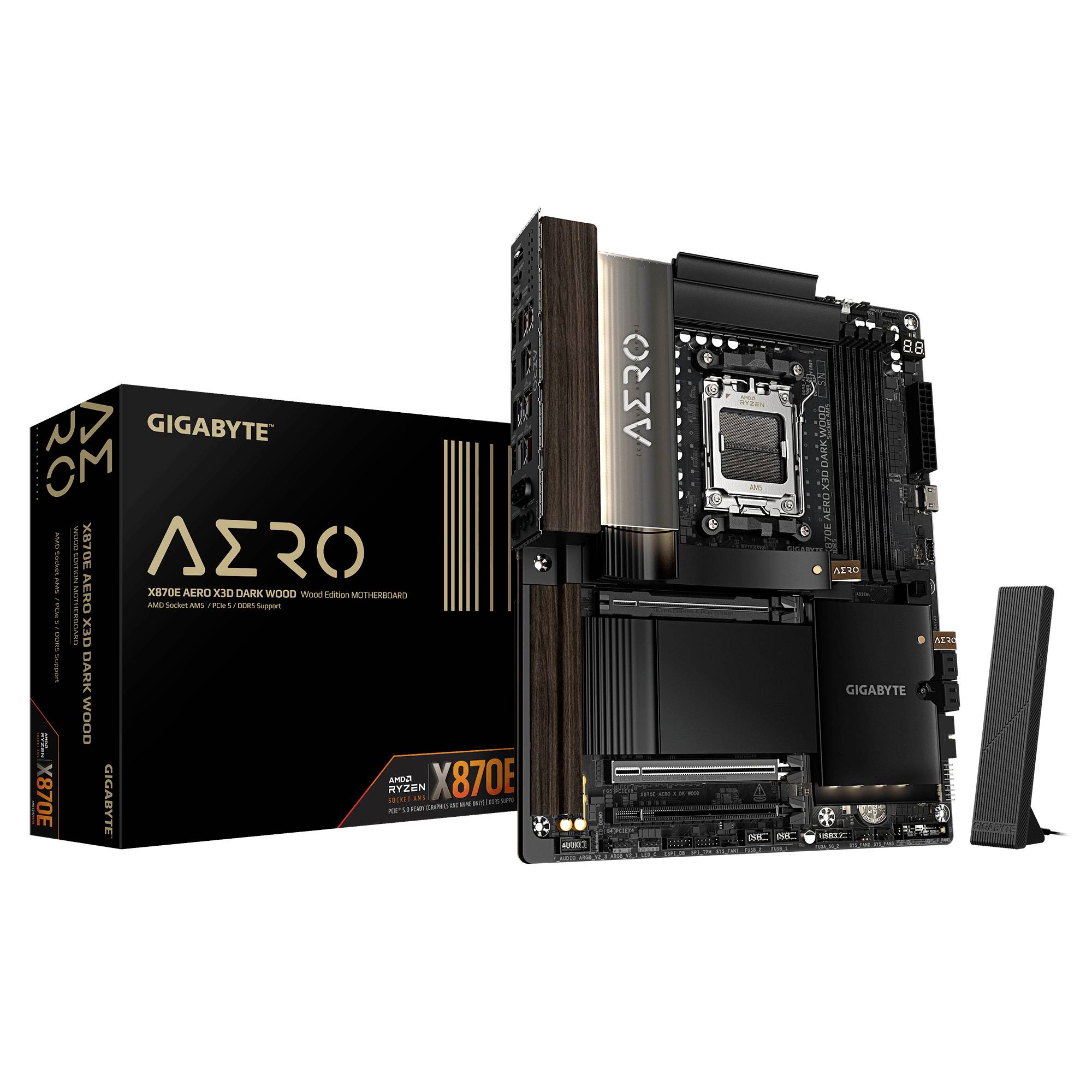

Gigabyte AERO X870E AORUS motherboard shown with retail box and Wi‑Fi antenna, featuring an exposed CPU socket and dark wood-accented heatsink.

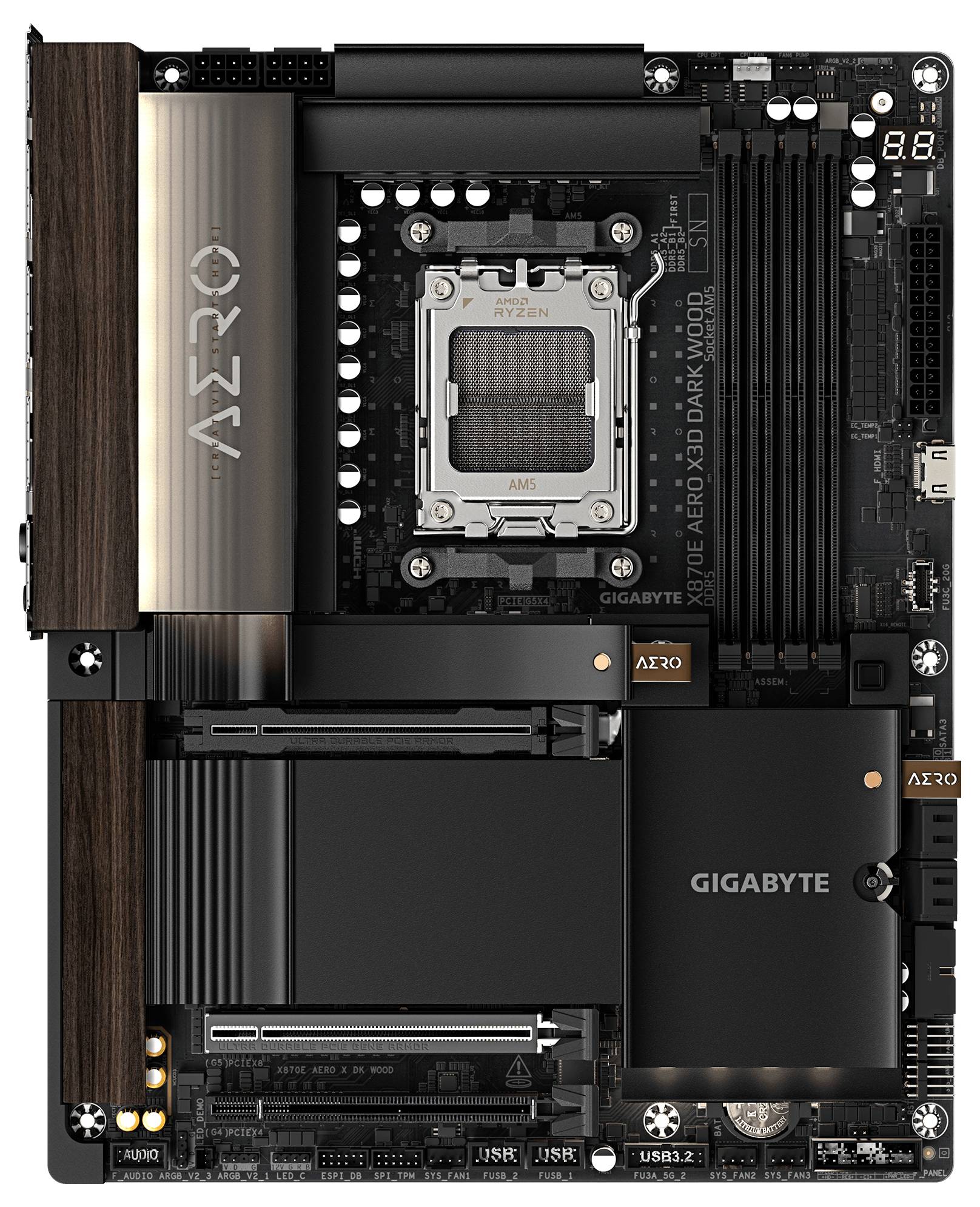

Gigabyte AERO motherboard with AMD Ryzen AM5 CPU socket, four RAM slots, PCIe slots, M.2 heatsinks, and rear I/O ports.<br>

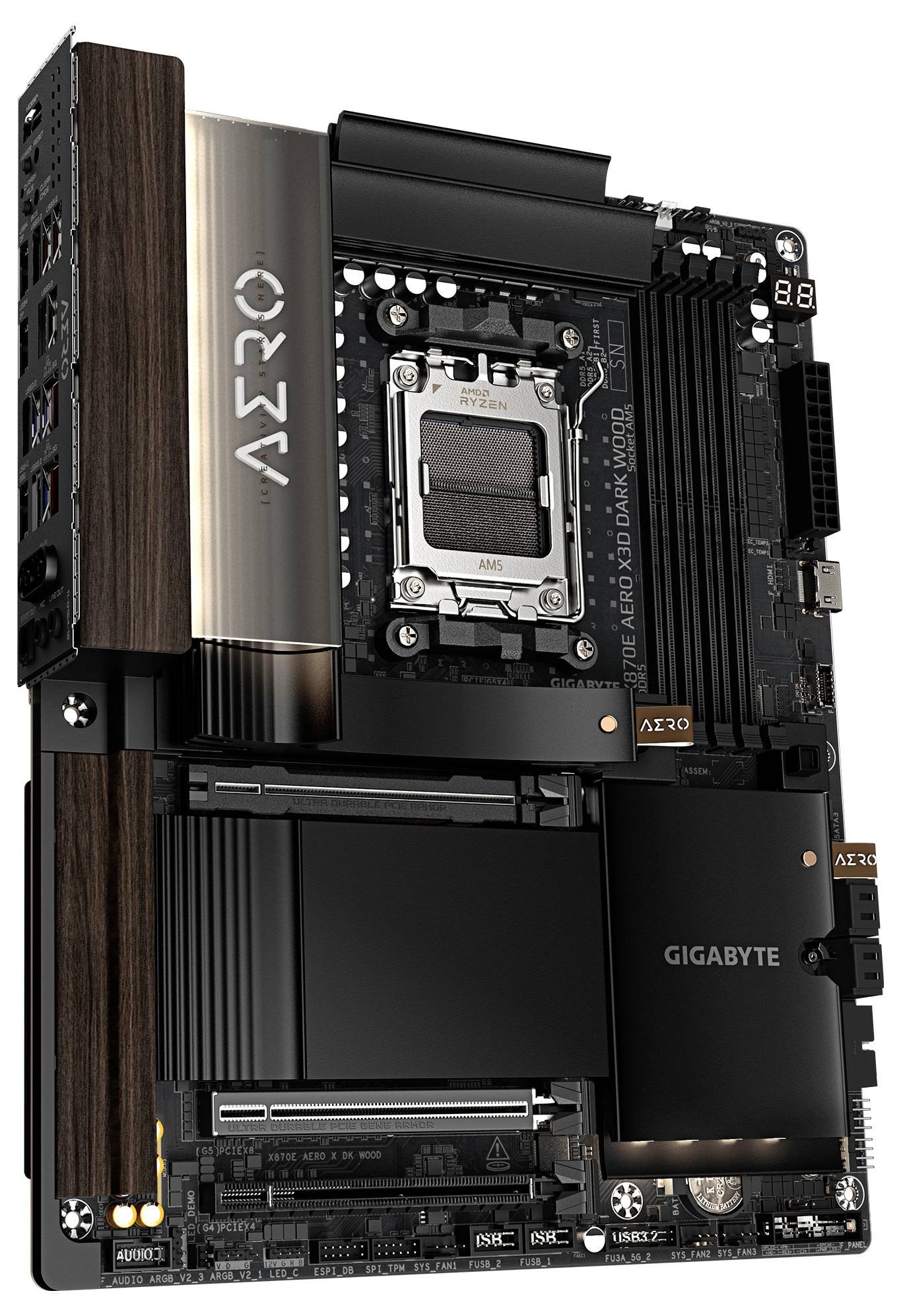

GIGABYTE AERO motherboard with AMD Ryzen CPU socket, black heatsinks, wood-accented vertical cover, and M.2/PCIe expansion slots<br>
Close-up of a GIGABYTE AERO motherboard with AMD Ryzen CPU socket, heatsinks, RAM slots, expansion slots, and an LED diagnostic display.<br>

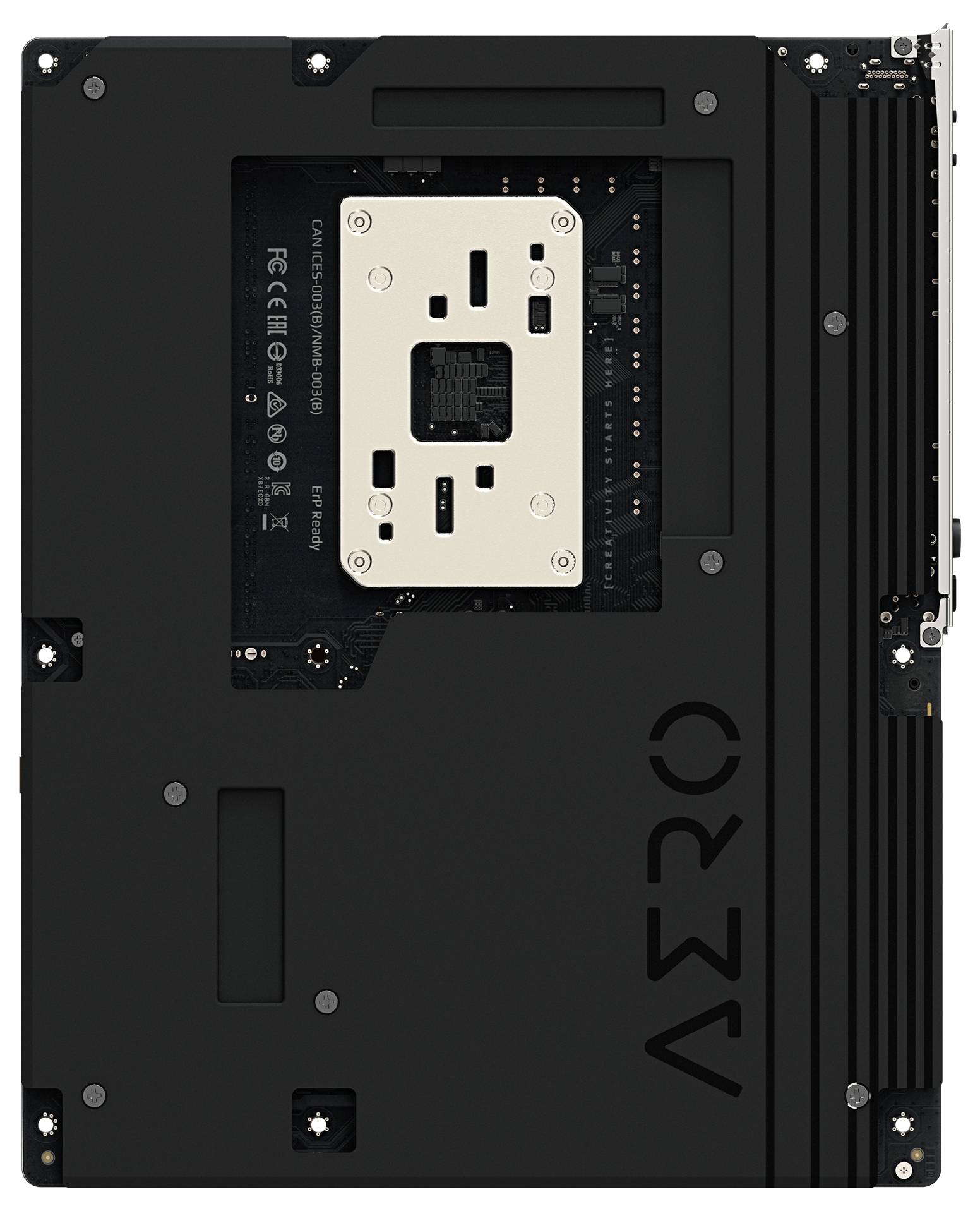

Rear view of an AERO-branded device panel with a central mounting plate and exposed electronics, showing screws and ventilation slots.
Rear I/O panel of an ASRock motherboard with HDMI, USB 3.2 and USB-C ports, Ethernet, Wi‑Fi antenna connectors, audio jacks, clear CMOS and BIOS reset buttons.

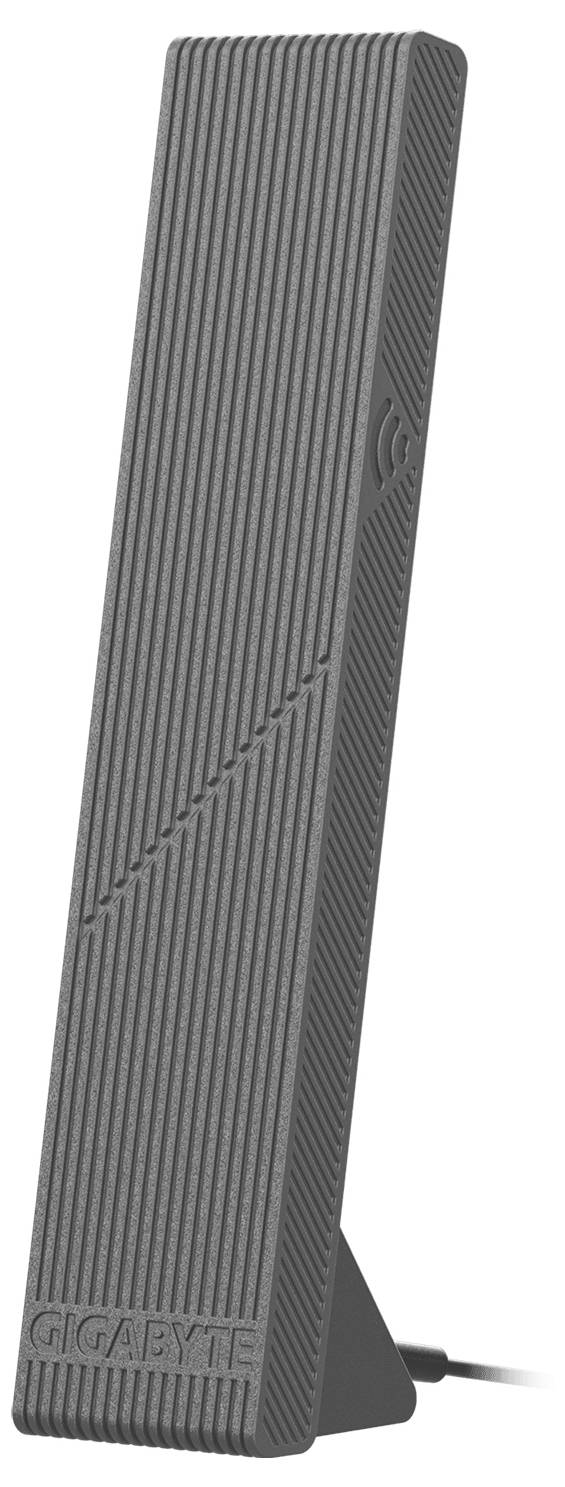

Tall gray ribbed GIGABYTE computer accessory, likely an external antenna or signal booster, standing upright with a cable attached at the base.
1/7
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Gigabyte Gigabyte GA-X870E AERO X3D DARK WOOD (AM Motherboard

  • AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
  • PC ATX AMD X870E Realtek ALC1220-VB 7.1 channels
  • DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
  • HDD & SSD M.2, PCI Express 5.0, SATA III RAID-support Number of supported storage drives: 8
  • BIOS type: UEFI AMI 512 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
  • 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4

Technical specifications

  • Socket AM5
  • Supported processor slots: Socket AM5
  • Supported memory: DDR5 SDRAM
  • HDMI Version 2.1
  • WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
  • AMD X870E motherboard chipset
  • Battery technology: Lithium-manganese dioxide (LiMnO2)
Product type

Motherboard

Form factor

ATX

RAM type

DIMM

RAM / Max. upgrade

256 GB

No. of PCIe 3.0 x16

1 x

No. of PCIe 3.0 x16

2 x

No. of USB 2.0 ports

2 x

No. of USB 3.0 ports

1 x

No. of SATA III ports

4 x

Bluetooth

5.4

Bluetooth

Yes

Factory colour

Black

Depth

244 mm

Height

35 mm

Width

305 mm

Display resolution

4096 x 2160 Pixel

No. of HDMI ports

1 x

No. of USB type A 3.1 / 3.2 1st Gen

3 x

No of. USB type A 3.1 /3.2 2nd gen

5 x

Christmas lighting features

12.0

Cooling

Passive

HDCP

Yes

Battery capacity

220 mAh

10/100/1000 Mbps ports

2 x

Software included

Norton® Internet Security (OEM version)

Range of use

PC

Weight

3.17 kg

Wi-Fi

Yes

UKCA

yes

BIOS memory size

512 Mbit

Screws included

yes

Ethernet LAN

yes

Antenna included

yes

Number of memory slots

4

Number of M.2 (M) slots

4

Products per shipping (inner) case

1 Stück(e)

Headphone outputs

1

Microphone in

yes

S/PDIF out port

yes

Front panel connector

yes

12V power connector

yes

CPU fan connector

yes

ATX Power connector (24-pin)

yes

Digital audio optical out

1

Front panel audio connector

yes

Number of HDDs supported

4

WiFi-AP antenna jack

2

TPM connector

yes

RGB LED pin header

yes

USB4 Gen 2x2 ports quantity

2

Supported memory clock speed (max)

9000 MHz

USB 3.2 Gen 2x2 connectors

1

Lithium weight per battery

0.07 g

4

2

3

2

64 GB

2

1

Battery weight

3 g

Batteries included

yes

EPS power connector (8-pin)

yes

RAID support

yes

Package weight

3.67 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Unbuffered memory

yes

Clear CMOS button

yes

Clear CMOS jumper

yes

Number of storage drives supported

8

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3818464 Gigabyte Gigabyte GA-X870E AERO X3D DARK WOOD (AM Motherboard Form factor (details) ATX

Description

Increase the performance of your computer with Gigabyte-proven motherboard series: AORUS, AERO and Gigabyte. With innovative design and modern functions, these boards offer reliable performance and high stability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and convince by high processing quality and support of the latest technologies.

This text is machine translated.

Features

  • Raw material structures lend a timeless elegance
  • X3D Turbo Mode 2.0: Outstanding X3D performance unleashed by AI
  • Dual channel DDR5: 4DIMMs with AMD EXPO memory module support. DDR5 OC up to 9000MT/s
  • AMD socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 series processors
  • Digital 16+2+2-Phase VRM Solution (Digital Twin)
  • M.2 EZ-Latch Click & Plus: Quick lock and screwless design at M.2-slots and heatsinks
  • PCB heat plate: 14% thermal improvement and enhanced mainboard stability
  • Ultra-fast memory: 4*M.2 slots, including PCIe 5.0 x4
  • High-speed network: Dual 5 GbE LAN & Wi-Fi 6E with adjustable ultra high gain antenna
  • Advanced connectivity: HDMI, Dual USB4 Type-C with DP Alt
