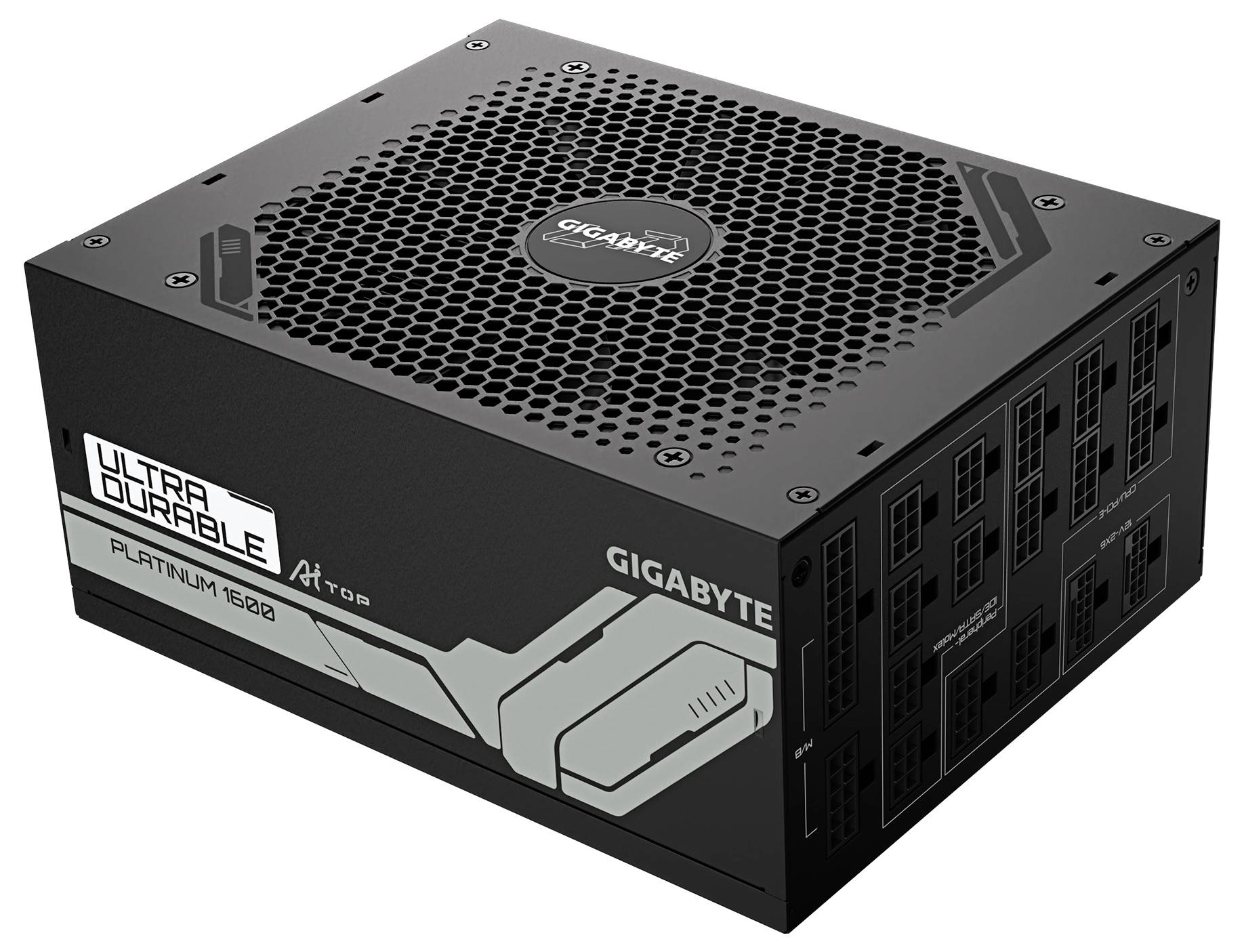

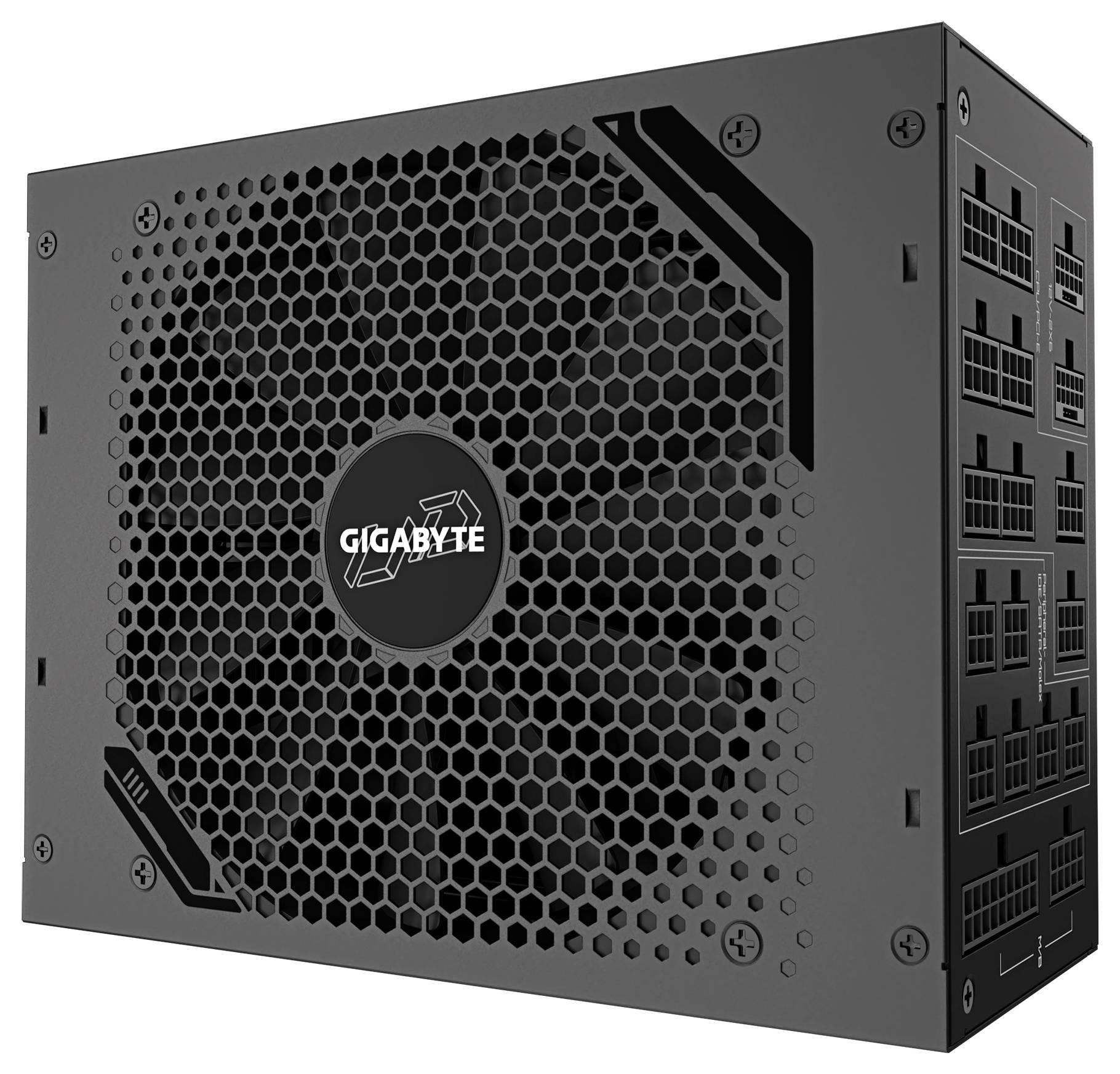

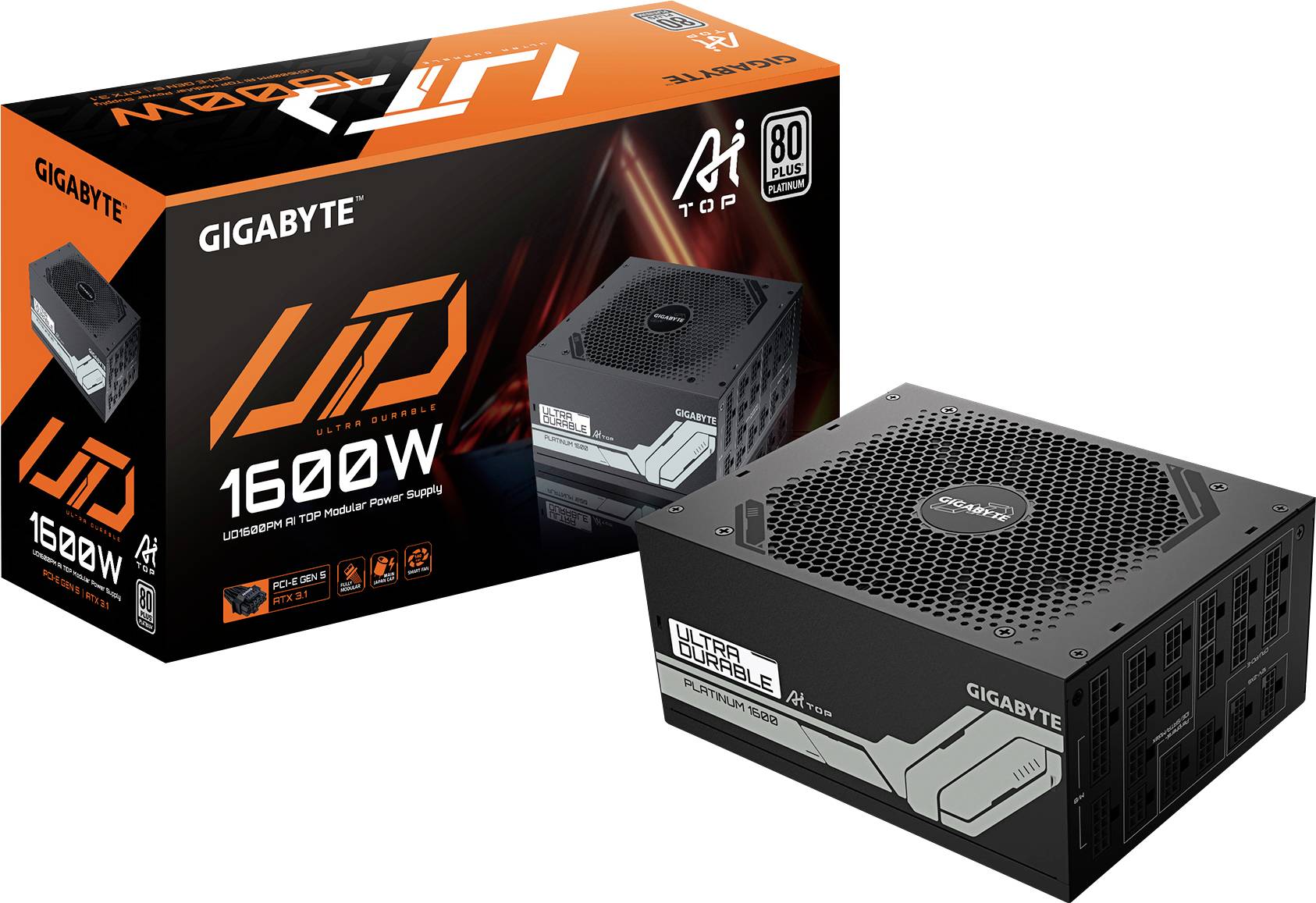

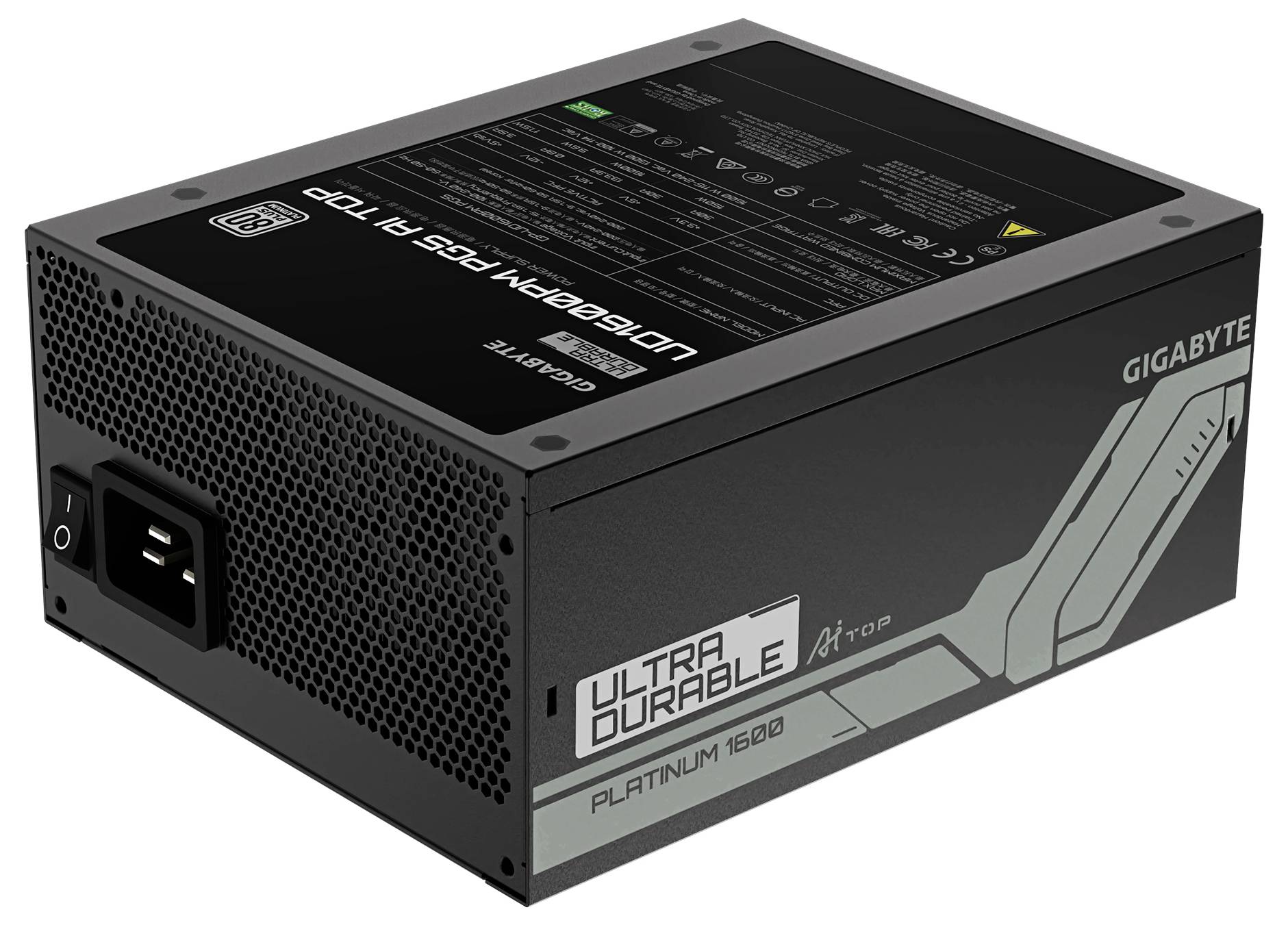

Gigabyte GP-UD1600PM PG5 Power supply unit 1600 W ATX 80 PLUS Platinum
Product type
Power supply unit
PSU output power
1600 W
Modular
Yes
Certification
80 PLUS Platinum
Form factor
ATX
EAN:
Part number:
Item no:
Highlights & Details
Gigabyte GP-UD1600PM PG5 Power supply unit
- Power supply unit output 1600 W
- PCI-Express (6+2-Pin) 8x
- Cable management Yes
- 80 PLUS Platinum
Technical specifications
- Power good signal Delay range 100 - 150 ms
- 80 Plus certification: 80 PLUS Platinum

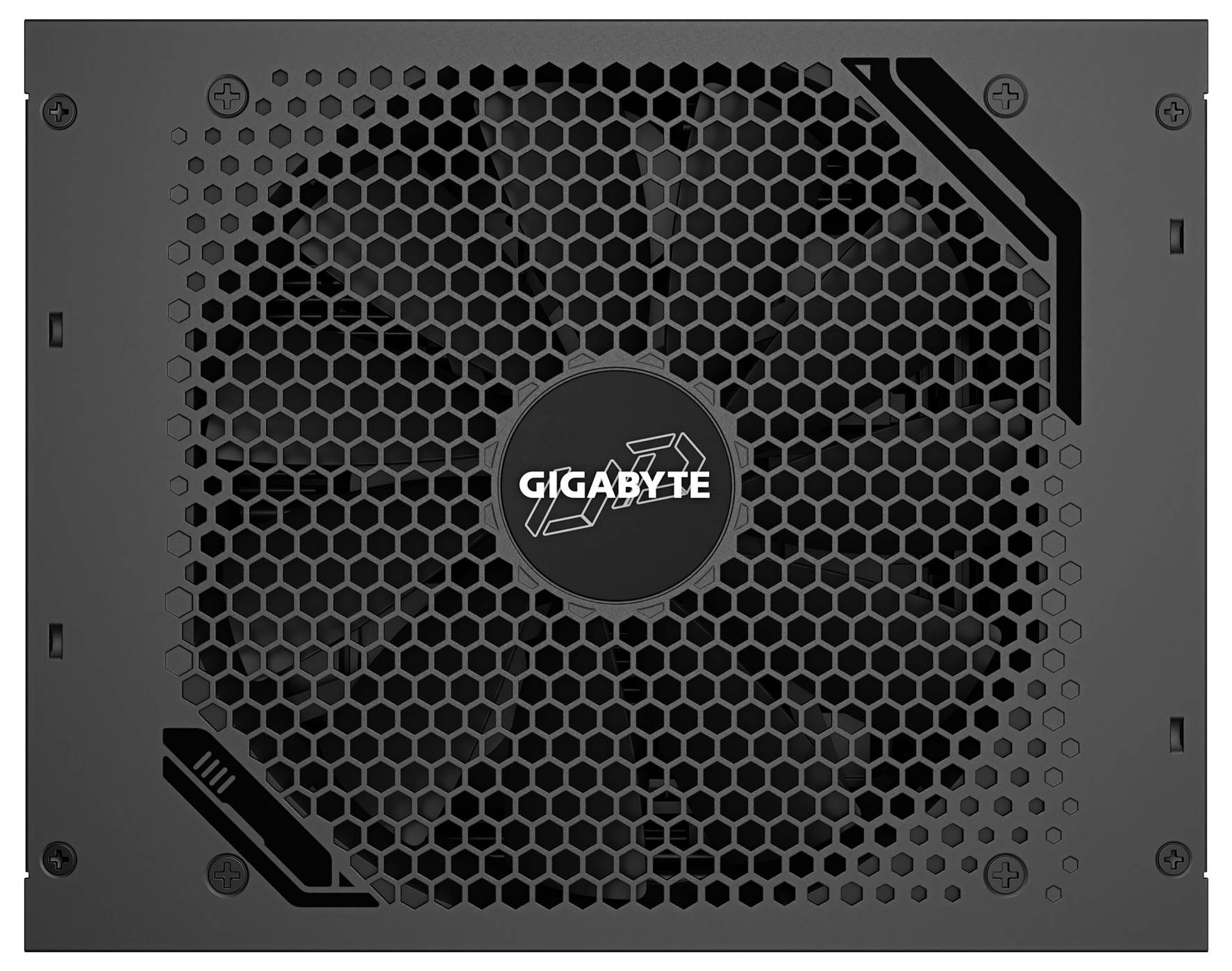

- Fan diameter 12 cm
- Number of fans: 1 fans
- Product type
Power supply unit
- PSU output power
1600 W
- Modular
Yes
- Certification
80 PLUS Platinum
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 150 x 86 x 190 mm
- Depth
190 mm
- Height
86 mm
- Width
150 mm
- Weight
5.3 kg

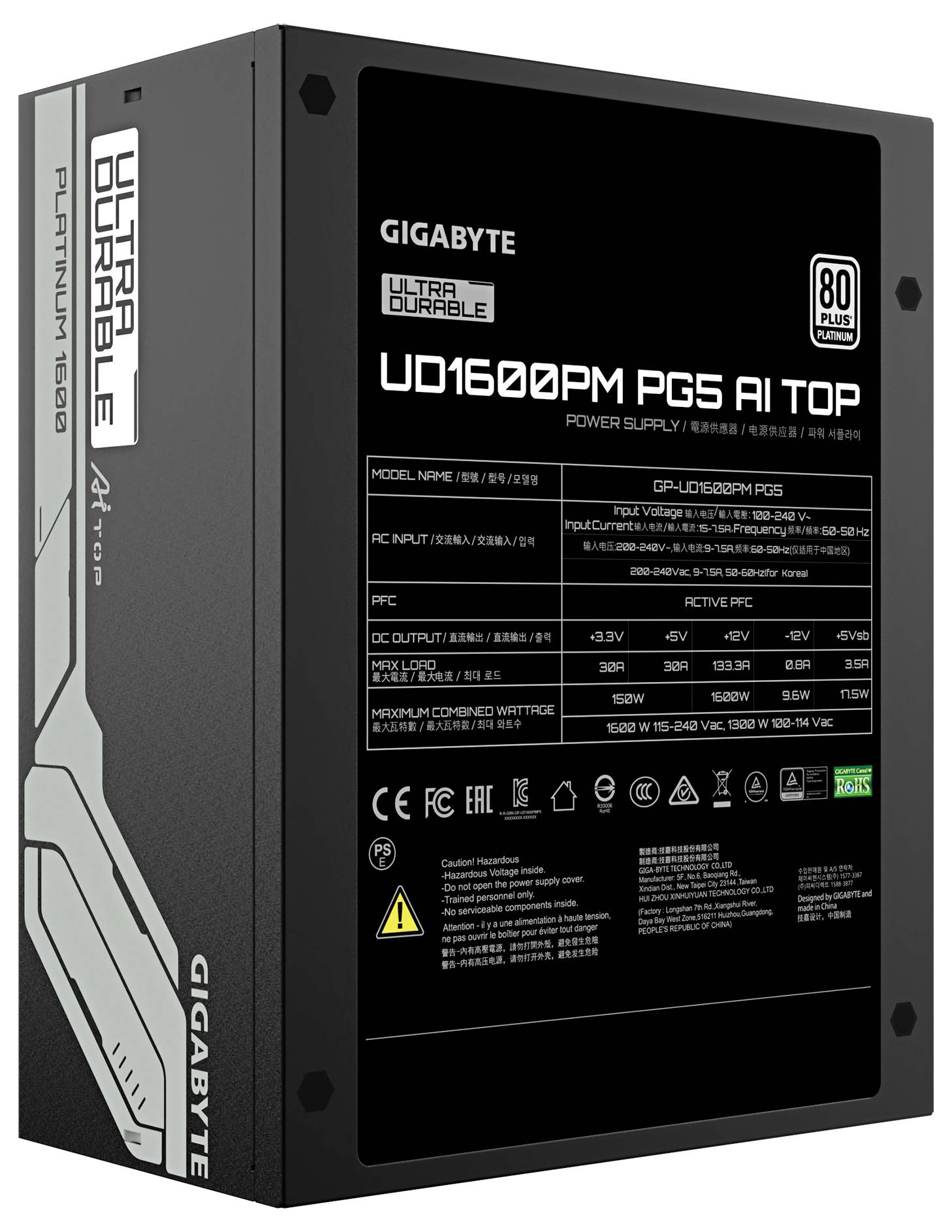

- -12V / DC
0.8 A
- +12 V/DC (1)
133.3 A
- 5 V DC
30 A
- +5V / DC SB
3.5 A
- 4-pin Molex
6
- 6-pin PCIe
8
- 5-pin SATA
16
- Power rating
751 W -
- Cooling
Active
- 3.3V DC
30 A
- Power supply (details)
100 - 240 V
- Operating voltage
230 V / AC
- UKCA
yes
- Motherboard power cable length
61 cm
- PCI Express connector
yes
- EPS power connector (4+4 pin)
yes
- Mean time between failures (MTBF)
100000 h
- Efficiency
92 %
- Hold time
16 ms
- On/off switch
yes
- ATX power connector (20+4 pin)
yes
- CPU power connector (4+4 pin)
yes
- Power factor
0.9
- Package weight
5.58 kg
- Combined power (+3.3V)
150 W
- Combined power (+12V)
1600 W
- Combined power (+5V)
150 W
- Combined power (-12V)
9.6 W
- Combined power (+5Vsb)
17.5 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3369644 Gigabyte GP-UD1600PM PG5 Power supply unit 1600 W ATX 80 PLUS Platinum
Description
Ensure a reliable and efficient power supply with Gigabyte power supplies. Designed for maximum performance and durability, our power supplies provide stable and consistent energy to operate your high performance systems. With advanced protection measures and high-quality components, Gigabyte power supplies offer the confidence you need for a seamless, uninterrupted computer experience.
This text is machine translated.
This text is machine translated.
Features

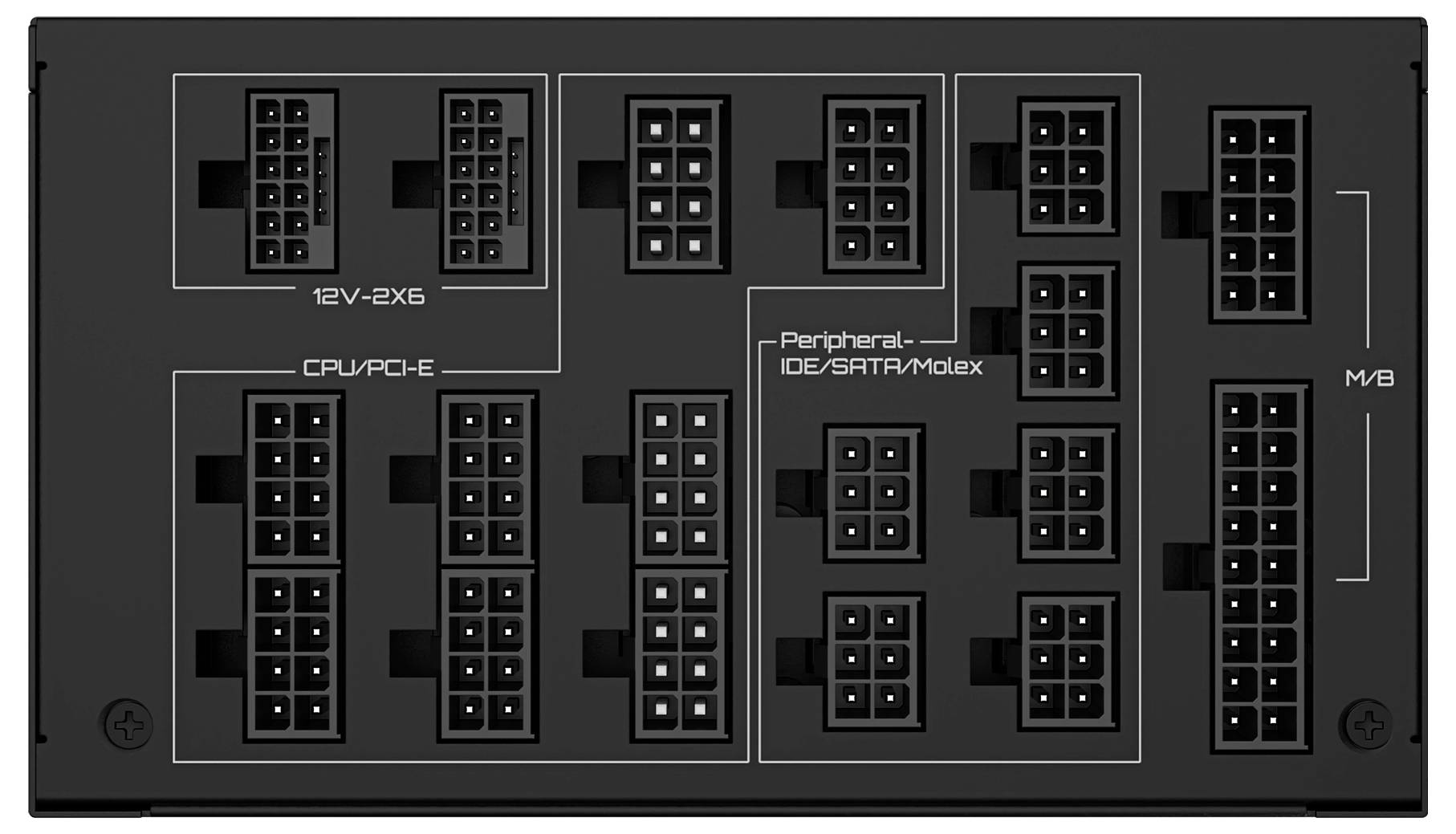

- 16-pin PCIe cable (4x) supporting PCIe Gen 5.0 graphics cards,ATX 3.1 and PCIe Gen 5.0 ready,Server Grade Ultra Durable: High quality Japanese capacitors, optimized heat dissipation, 140 mm Smart double ball bearing fan, protection features: OVP / OPP / SCP / UVP / OCP / OTP,80 PLUS Platinum certified,Fully modular design,Powerful single +12V rail
