Technical specifications

KNX bus system: Yes
KNX-RF bus system (radio): No.
Bus system wireless bus: No.
Bus system LON: No.
Bus system Powernet: No.
Other bus systems: Without
With bus connection: No.
Wireless bidirectional: No
Temperature controller with integrated continuous control: No.
Buttons for manual operation on the drive: No.
Temperature and lift indicator: No.
Master/slave function: No.
Bus power supply: No.

Product type: Actuator

Content: 1 pc(s)

: IP20

Mounting type: Radiator valve

Nominal voltage: 24 V

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3820967 GIRA 217900 Actuator

Description

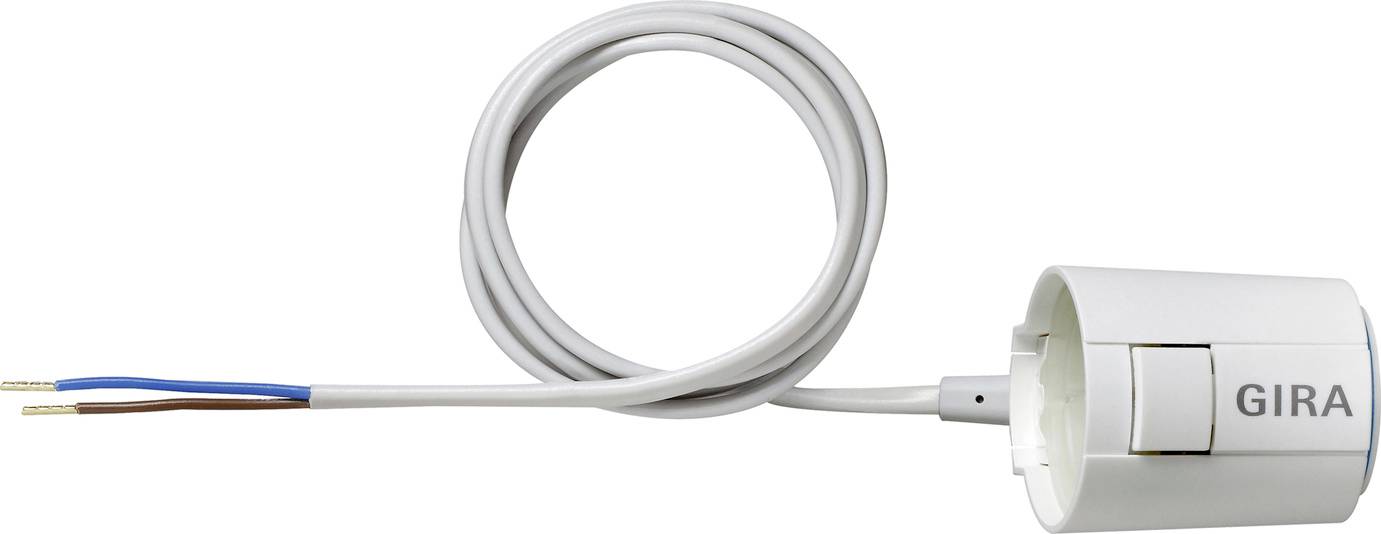

Thermal actuator 24 V~ Features: - Thermal actuator for operation of radiator valves for single room control. - Compatible with the valve adaptor system and the connecting cable of the predecessor. - Status display open or closed. - First-open function for easy installation and commissioning. - Closed without current. Delivery: - Valve adapter VA 80 for the following corner valves included in delivery. Heimeier, MNG (from 1998), Oventrop M30x1.5 (from 1997), Oventrop Coco Q, Onda, Locks (from 1993), Comap M30x1.5, Tour & Andersson (from 1999), IVAR, Strava (from 2003 new mounting), Taco (for Alpha drive from 2005), Emmeti, Caleffi distribution board series 670, Bianchi 4-way valve, Nereus corner valve DN 10.

This text is machine translated.
