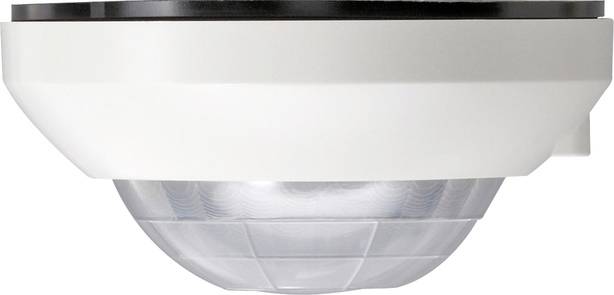

GIRA 537702 Occupancy sensor
EAN:
Part number:
Item no:
Technical specifications
- Material: Other
- Material quality: Other
- Low-level creep protection: No.
- Operating mode switch: No.
- Animal slope: No.
- Staircase lighting timer: No.
- Response brightness adjustable: Yes
- Teach-Function for Response Brightness: No.
- Switch-off delay, self-learning: No.
- Network-compatible: No.
- Response sensitivity adjustable: Yes
- Dimming function with dimming insert: Yes
- Halogen-free: Yes
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With motion detector: No.
- HVAC activation: No.
- Motion detector/button combination: No.
- With orientation light: No.
- Constant light control: Yes
- Suitable for wireless transmission: No.
- With presence detector: Yes
- With light sensor: No.
- Supports protocol for ZigBee: No.
- Product type
Occupancy sensor
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3821467 GIRA 537702 Occupancy sensor
Description
SYSTEM 3000 Presence and motion detector 360° attachment BT Features: - Automatic switching of lighting, depending upon heat movement and ambient brightness. - Operation with System 3000 Switch, DIMM or Extension Insert 3-wire. - Extension of the detection area in combination with extension insert 3-wire. - Operation with extension insert 2-wire, 3-wire or mechanical button. - Clip-on panel for limiting the detection area. - Ceiling mounting on System 3000 flush-mounted use. With System 3000 switch insert - short-term operation With System 3000 Dimmer insert - constant light control - Switch on with the last brightness set or saved switching-on brightness. - The turn-on brightness can only be permanently stored via System 3000 extension panel with control panel and the GIRA System 3000 APP. - Basic light function. - Night light function. Functions with GIRA System 3000 APP - Setting the device as a presence detector or motion detector. - Adjust the brightness threshold. - Adjust the sensitivity of the three PIR sensors. - Set the follow-up time. - Forced functions: Automatic mode, duration on/off, time limited on/off for 0.5 to 5 hours. - Presence simulation. - Day operation. - Walk test. - Switch-off pre-warning. - Time switch function. - Alarm function.
