Glen Dimplex WPHKV 1220053 Heat pump inside module WPHKV 1220053 White
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Wall-mounting
- Suitable for heating: Yes
- Suitable for cooling: Yes
- With separate batteries: No.
- Sound pressure level high 39 dB(A)
- Medium sound pressure level 30 dB(A)
- Low sound pressure level 26 dB(A)
- With electric heating element: No.
- Standard color: No.
- Colour: white
- Nominal diameter of cooling: 1/2 in. (15)
- Nominal diameter of heating: 1/2 in. (15)
- Exhaust air at front: No.
- With fresh air connection: No.
- Water connections left: Yes
- With grid: Yes
- Material grid: Steel
- Grid color: White
- With adjustment switch: Yes
- With inbuilt adjustment controller: Yes
- With filter: No.
- With drain valve: No.
- With air vents: No.
- With feet: No.
- With drip tray: No.
- Connection voltage 230 V
- Frequency: 50 Hz
- Width 530 mm
- Height: 2000 mm
- Depth: 132 mm
- Installation depth adjustable: No.
- Surface protection grid: Painted
- Product type
Heat pump inside module
- Operating voltage
0 V
- Switching stages
3
- Max. operating noise
39 dB
- Heater features
built-in fan
- Factory colour
White
- Dim
(W x H x D) 530.00 x 2000.00 x 132.00 mm
Doesn't apply
- Width
530.00 mm
- Height
2000.00 mm
- Depth
132.00 mm
- Material
Steel
- Nominal voltage
0 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159788 Glen Dimplex WPHKV 1220053 Heat pump inside module WPHKV 1220053 White
Description

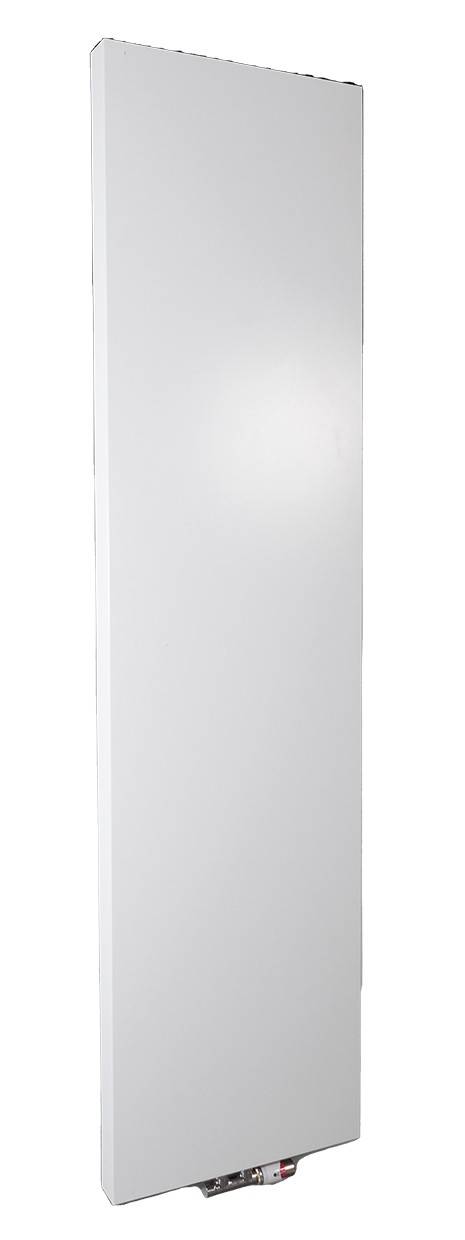

Heat pump radiator vertical design with low installation depth for heating and silent cooling. Completely pre-assembled with vertical fan grating on the left and right and punched suction openings at the top and bottom. Casing made of zinc-plated steel sheet Two dynamic high power heat exchangers for low flow temperatures and maximum heat output. Includes fans for a higher air outlet temperature and ultra-fast shielding of the cold radiation. Surface temperature of the panel max. 43 °C at 90 °C lead. The radiator is operated and adjusted via 3 buttons that can be mounted variably on the outside of the casing. Operation modes heating, cooling and ventilation can be set individually. 3 speed settings. Operating pressure of heat exchanger 10 bar, color white
Operating voltage 12 V, delivery package: Heat pump heater complete with electronics and fan unit, control, operating panel and mains connection 230 V. Universal central connection MM, G 1/2 internal thread. Forward/reverse axle distance 50 mm Forward left or right, connection with or without radiator valve with thermostat head.
This text is machine translated.
Operating voltage 12 V, delivery package: Heat pump heater complete with electronics and fan unit, control, operating panel and mains connection 230 V. Universal central connection MM, G 1/2 internal thread. Forward/reverse axle distance 50 mm Forward left or right, connection with or without radiator valve with thermostat head.
This text is machine translated.
