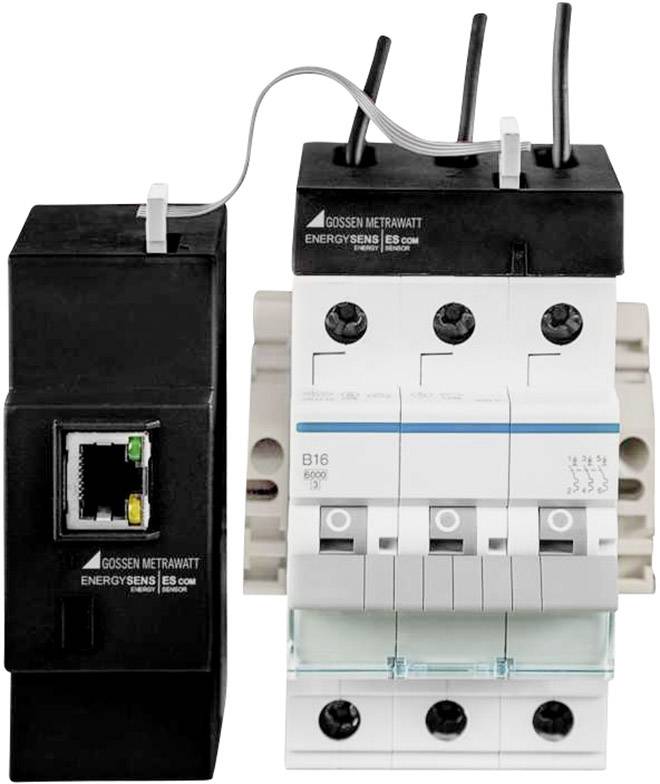

Gossen Metrawatt ENERGYSENS-EScom U100A Electricity meter (3-phase) Piece 1 pc(s)

Basic model for the connection of
Up to 10 ENERGY SENS-sensors.

With the intelligent sensor system ENERGY SENS measure performance, energy, current, voltage and frequency of individual consumers in the low voltage systems. Energy consumption can be more detail localised, monitored and transparent. This helps to avoid unnecessary costs and a contribution to sustainable company development.
Not only helps you save energy SENS energy costs, it is supported by the monitoring of the phase load in the field of preventive maintenance and the minimization of downtimes.
Energy Sens-your block for Industry 4.0
The measurement is carried out on lines in low-voltage distribution panels, for example, of fuses in the control cabinet. Thanks to the compact design is the installation of ENERGY SENS especially easy - no matter whether in new plants, or in the event that the Energieer-fassung in existing systems can be upgraded. The minimum power consumption guarantees you an optimum cost-benefit ratio.
Product Highlights
Universally
Various sensor variants with 3 or 12 points. The rated current is 40 A or 80 A
Interfaces
Thanks to universal Modbus interface (TCP/RTU) is the integration in any systems is possible.
The retrofitting
Energy acquisition can easily upgrade, directly in existing plants in even the tightest of spaces
Minimal space required
All measurement technology are combined in the smallest room, especially important is the very low height
Transparency
Basis for any efficiency improvement and warning against overload even before greater damage.
Own consumption
Very low power consumption as compared to other measuring systems
Your advantages
Scalable - for high flexibility in system design
The modular system consists of the base module ENERGY SENS COM and up to 10 sensors for example Energy SENS IT 4003.
These sensors have several measuring points, with which the performance of individual consumers can be measured.
The system can be extended or modified at any time. Can be up to 120 measuring points via a communication unit in the system integration.
Real POWER MEASUREMENT - for effective and targeted energy management
The fast bus system enables an individual assignment of voltage to each current measuring point to determine the performance values.
Time-saving installation - the fehlerfei works from a standing position.
With a few simple steps, the sensors are mounted.
A variety of fast installation of the basic module in any mounting position on 35 mm DIN rail.
Perfect for fast communication with different systems can be integrated -
Flexible communication and remote reading via integrated interface.
Versatile connection via Modbus TCP or Modbus RTU.
Free configuration tool for fast integration into any system environment - also without programming knowledge.

This text is machine translated.
