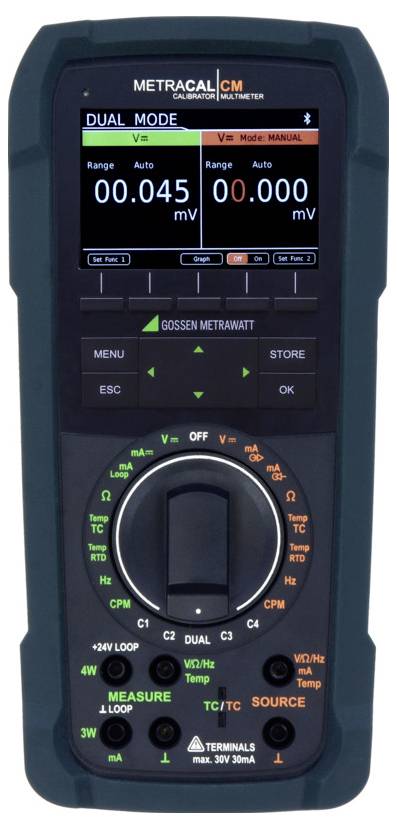

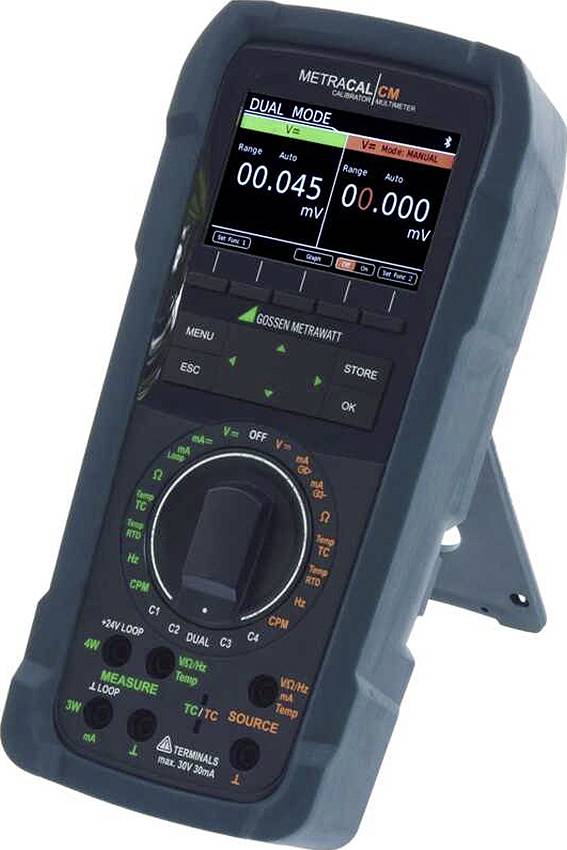

Gossen Metrawatt METRACAL CM PRO Multifunction calibrator Calibrated to (DAkkS standards) Voltage, Amperage, Temperature
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
High-precision multimeter and process calibrator for measuring and simulating electrical quantities with integrated mA-loop function
- Universal process calibrator for simulation and measurement of mA, mV, V, Ω Hz, CPM and temperature signals (TC/RTD) for service, maintenance and start-up.
- Integrated mA loop function with 24 V loop supply for supplying and testing 2-conductor transmitters.
- Dual mode for simultaneous sending and measuring as well as high-resolution color graphics display for structured calibration processes.
- Four freely configurable quick accesses for frequently used measuring and/or calibration functions
- Can be extended by software upgrade in the field – future-proof through optional activation of additional functions.
- "Made in Germany" quality – including DAkkS calibration certificate
Technical specifications
- Dual mode: Simultaneous simulation and measurement
- Voltage and current measurement, voltage and resistance simulation
- RTD and TC measurement (Pt100 … Pt1000, Ni100 … Ni1000)
- Frequency and pulse generator (1 Hz – 50 kHz / 6 – 3000 CPM)
- 4 -, 3 - and 2-conductor resistance measurement
- 0.015% basic accuracy at VDC
- Integrated Data logger with real-time clock and automatic Storage of Measuring values
- Robust design with quick-change battery and IP52-protection.
DAkkS standards
- Product type
Multifunction calibrator
- Unit of measurement
Voltage
Amperage
Temperature
Resistance
Frequency
- Resolution
0.001 mA
- Calibration range (thermometer)
-200.0°C...2500.0 °C
- Temperature accuarcy (details)
0.2°C.. 2.5 °C.
- Dim
(L x W x H) 56 x 235 x 105 mm
- Weight
700 g
- Operating voltage
3.7 V DC
- Reading category
Ohne Messkategorie
- Width
235 mm
- Height
105 mm
- Length
56 mm
- Power supply
Li-ion rechargeable battery (built-in)
PSU (included)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3720860 Gossen Metrawatt METRACAL CM PRO Multifunction calibrator Calibrated to (DAkkS standards) Voltage, Amperage, Temperature
User & Safety Instructions
User & Safety Instructions 3720860 Gossen Metrawatt METRACAL CM PRO Multifunction calibrator Calibrated to (DAkkS standards) Voltage, Amperage, Temperature
Description
The METRACAL CM series redefines the standard for mobile calibration technology. As multi-functional process calibrators for electrical values they combine the highest measurement precision with practical operation and the latest communication.
With Dual mode, programmable operations, integrated data logger and Bluetooth® connectivity, the devices are ready for documented and efficient calibration processes in the laboratory, production and field service.
The METRACAL CM PRO is the universal model of the series – a highly precise hand-calibrator for electrical quantities with integrated 24 V loop-Power supply. It combines measuring and simulation functions in one compact device and covers all the common signal types of process and laboratory measurement technology. A real all-rounder for the daily use in the industrial environment.
Your advantages
- Measures and simulates all common electrical signals in one device
- Saves time and equipment through integrated 24 V supply for current loops
- Provides accurate and stable measurement values for reliable calibration/calibration
- Simple operation via clearly structured menus and graphic display
- High operational safety in field operation thanks to robust housing and the possibility of subsequent function extension
Applications
- Calibration and testing of process transmitters and display units
- Maintenance and troubleshooting of 4-20 mA signal paths and transmitters
- Laboratory, workshop and service applications in process and energy technology
- Reference measurements during commissioning and regular inspections
This text is machine translated.
With Dual mode, programmable operations, integrated data logger and Bluetooth® connectivity, the devices are ready for documented and efficient calibration processes in the laboratory, production and field service.
The METRACAL CM PRO is the universal model of the series – a highly precise hand-calibrator for electrical quantities with integrated 24 V loop-Power supply. It combines measuring and simulation functions in one compact device and covers all the common signal types of process and laboratory measurement technology. A real all-rounder for the daily use in the industrial environment.
Your advantages
- Measures and simulates all common electrical signals in one device
- Saves time and equipment through integrated 24 V supply for current loops
- Provides accurate and stable measurement values for reliable calibration/calibration
- Simple operation via clearly structured menus and graphic display
- High operational safety in field operation thanks to robust housing and the possibility of subsequent function extension
Applications
- Calibration and testing of process transmitters and display units
- Maintenance and troubleshooting of 4-20 mA signal paths and transmitters
- Laboratory, workshop and service applications in process and energy technology
- Reference measurements during commissioning and regular inspections
This text is machine translated.
Scope of delivery
- 1x Hand calibrator METRACAL CM
- 1x cable set KS25-4
- 1x Lithium-Polymer quick release battery with Micro-USB charging socket
- 1x plug power supply USB Power delivery 1 x USB-C & 1 x USB-A, 65W with removable primary connection for EU, UK, US, Asia
- 1x USB cable with USB-A and USB-B connectors, 1 m long
- 1x short instruction manual German/English
- 1x DAkkS calibration certificate
- 1x hard-shell case for holding the device with accessories
