Name: Gossen Metrawatt SC40-B 125/1A 0,2VA Kl.1 18 mm U118I Cable current transformer Primary current 125 A Secondary current
Brand: Gossen Metrawatt
SKU: 1344450

A black sensor with a cable, used for measuring electrical currents. It has a square shape with an opening.

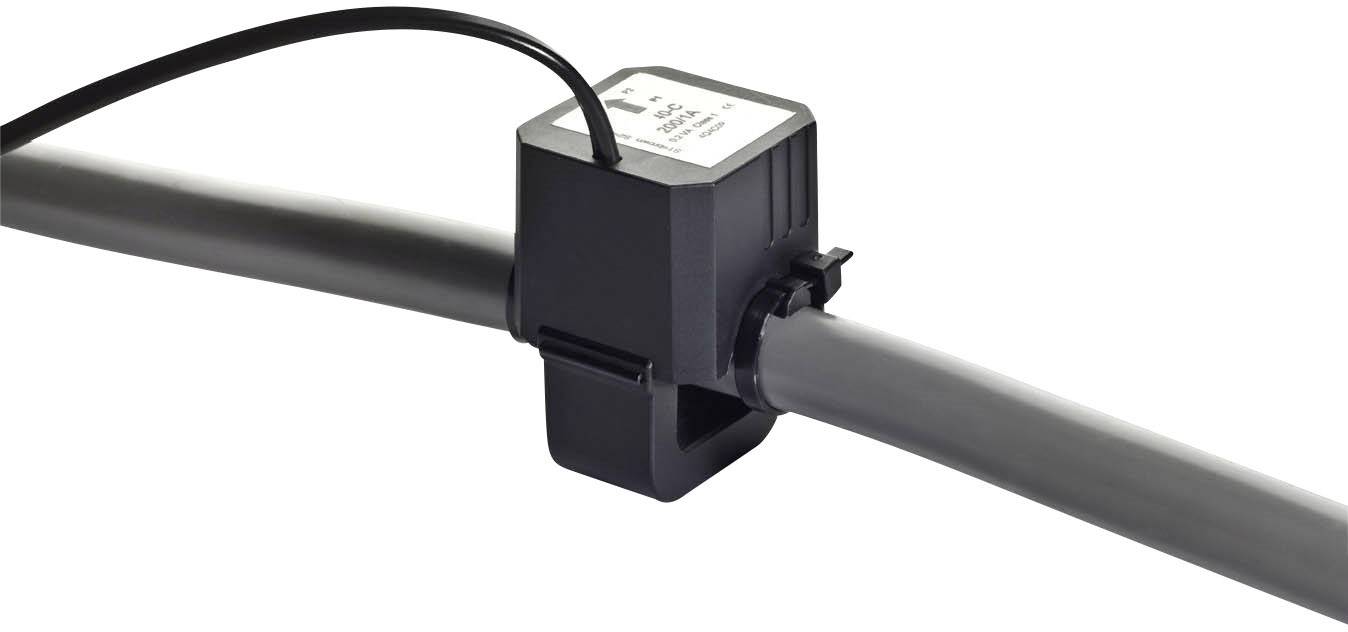

'Cable contact sensor mounted on a pipe, monitors flow rate or pipeline temperature.'

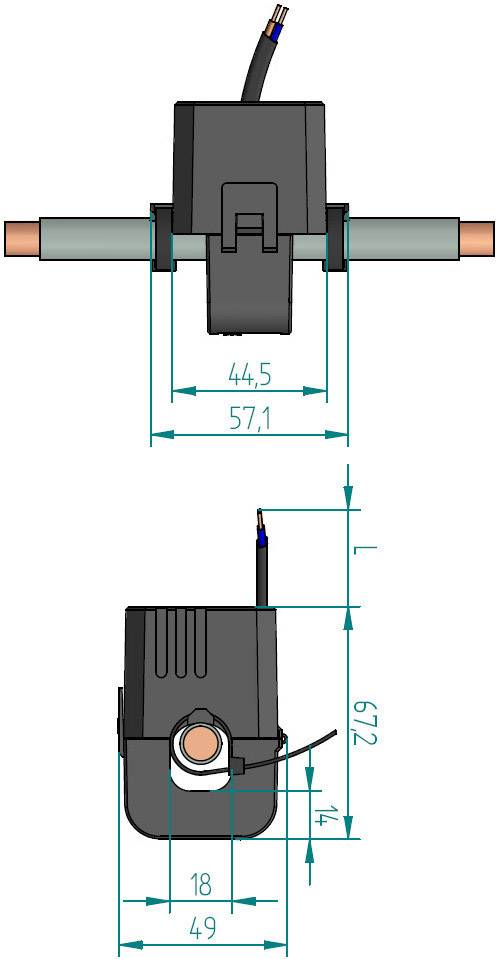

Technical drawing of an electrical component with dimensions in millimetres: width 57.1 mm, height 49 mm, depth 44.5 mm.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

13 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Current transformer SC40-B 125/1 A 0,2VA Class 1 18 mm incl. cable

Line feed-through diameter 18 mm

Technical specifications

125/1 A
Primary current 125 A
Secondary current 1 A
Output 0.2 VA
Connection cable connection
Accuracy class 1
Type SC40-B 125/1 A 0,2VA Cl. 1
Weight 360 g.
Width 44.5 mm
Height 67.2 mm
Line feed-Ø 18 mm

Product type: Cable current transformer

Primary current: 125 A

Secondary current: 1 A

: 0.2 VA

Line feed-through diameter: 18 mm

Type: SC40-B 125/1A 0,2VA Kl.1 18 mm

Dim: (L x W x H) 49 x 44.5 x 67.2 mm

Weight: 360 g

Width: 44.5 mm

Height: 67.2 mm

Length: 49 mm

Variants(All information is without VAT, plus shipping costs)

Line feed-through diameter

Power

Primary current

Product type

Secondary current

Gossen Metrawatt SC40-B 125/1A 0,2VA Kl.1 18 mm U118I Cable current transformer Primary current 125 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344450

Unavailable

13 Piece(s)Conrad Electronic

This article

18 mm

0.2 VA

125 A

Cable current transformer

1 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Gossen Metrawatt SC30 100/1A 0,2VA Kl.3 18 mm U118C Cable current transformer Primary current 100 A Secondary current 1 A Line feed-through diameter:18 mm Flip mount 1 pc(s)

Item no:1344444

Unavailable

18 Piece(s)Conrad Electronic

18 mm

0.2 VA

100 A

Cable current transformer

1 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Gossen Metrawatt SC30 125/1A 0,2VA Kl.3 18 mm U118D Cable current transformer Primary current 125 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344445

Unavailable

6 Piece(s)Conrad Electronic

18 mm

0.2 VA

125 A

Cable current transformer

1 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Gossen Metrawatt SC30 150/1A 0,2VA Kl.3 18 mm U118E Cable current transformer Primary current 150 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344446

Unavailable

Conrad Electronic

18 mm

0.2 VA

150 A

Cable current transformer

1 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Gossen Metrawatt SC30 200/1A 0,2VA Kl.1 18 mm U118F Cable current transformer Primary current 200 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344447

Unavailable

Conrad Electronic

18 mm

0.2 VA

200 A

Cable current transformer

1 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Gossen Metrawatt SC30 250/1A 0,2VA Kl.1 18 mm U118G Cable current transformer Primary current 250 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344448

Unavailable

9 Piece(s)Conrad Electronic

18 mm

0.2 VA

250 A

Cable current transformer

1 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Gossen Metrawatt SC30 60/1A 0,2VA Kl.3 18 mm U118A Cable current transformer Primary current 60 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344442

Unavailable

3 Piece(s)Conrad Electronic

18 mm

0.2 VA

60 A

Cable current transformer

1 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Gossen Metrawatt SC30 75/1A 0,2VA Kl.3 18 mm U118B Cable current transformer Primary current 75 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344443

Unavailable

Conrad Electronic

18 mm

0.2 VA

75 A

Cable current transformer

1 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Gossen Metrawatt SC40-B 100/1A 0,2VA Kl.1 18 mm U118H Cable current transformer Primary current 100 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344449

Unavailable

10 Piece(s)Conrad Electronic

18 mm

0.2 VA

100 A

Cable current transformer

1 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Gossen Metrawatt SC40-B 150/1A 0,2VA Kl.1 18 mm U118J Cable current transformer Primary current 150 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344451

Unavailable

1 Piece(s)Conrad Electronic

18 mm

0.2 VA

150 A

Cable current transformer

1 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 1344450 Gossen Metrawatt SC40-B 125/1A 0,2VA Kl.1 18 mm U118I Cable current transformer Primary current 125 A Secondary current

User & Safety Instructions

User & Safety Instructions 1344450 Gossen Metrawatt SC40-B 125/1A 0,2VA Kl.1 18 mm U118I Cable current transformer Primary current 125 A Secondary current

Description

Thanks to its compact design, the cable conversion current transformer particularly suitable for use in hard to reach places and with limited available space. The divisible core halves also make it easier to install at the cable or on the rail. Everywhere, where an interruption of the current path is problematic or a measuring device easily retrofitted, are cable conversion converter is the right choice. The safe installation of the primary cable in the current transformer is ensured by a clearly audible "click" confirmed. Two enclosed UV resistant cable ties to fix the converter in addition.
Environments
Installation in indoor areas.
Ambient temperatures - 10° C ... 55 °C
Bearing temperatures - 20 °C ... 70 °C
Relative humidity 5%... 85%, dew is excluded.
Pollution degree 2
Protection type IP20
Conditions of Use
Standard IEC 61869-2:2012
Thermal rated short-time current (Ith) 60 x Ipr/1s
Thermal rated continuous current (Icth) 100%
Rated insulation level 0,72/3/kV
Rated frequency 50/60 Hz
Insulation class E (120°C)
Housing Material PA 6.6, UL94: V2

This text is machine translated.

Scope of delivery

User manual
2x UV resistant cable ties for fastening

Description

Scope of delivery

User manual
2x UV resistant cable ties for fastening
