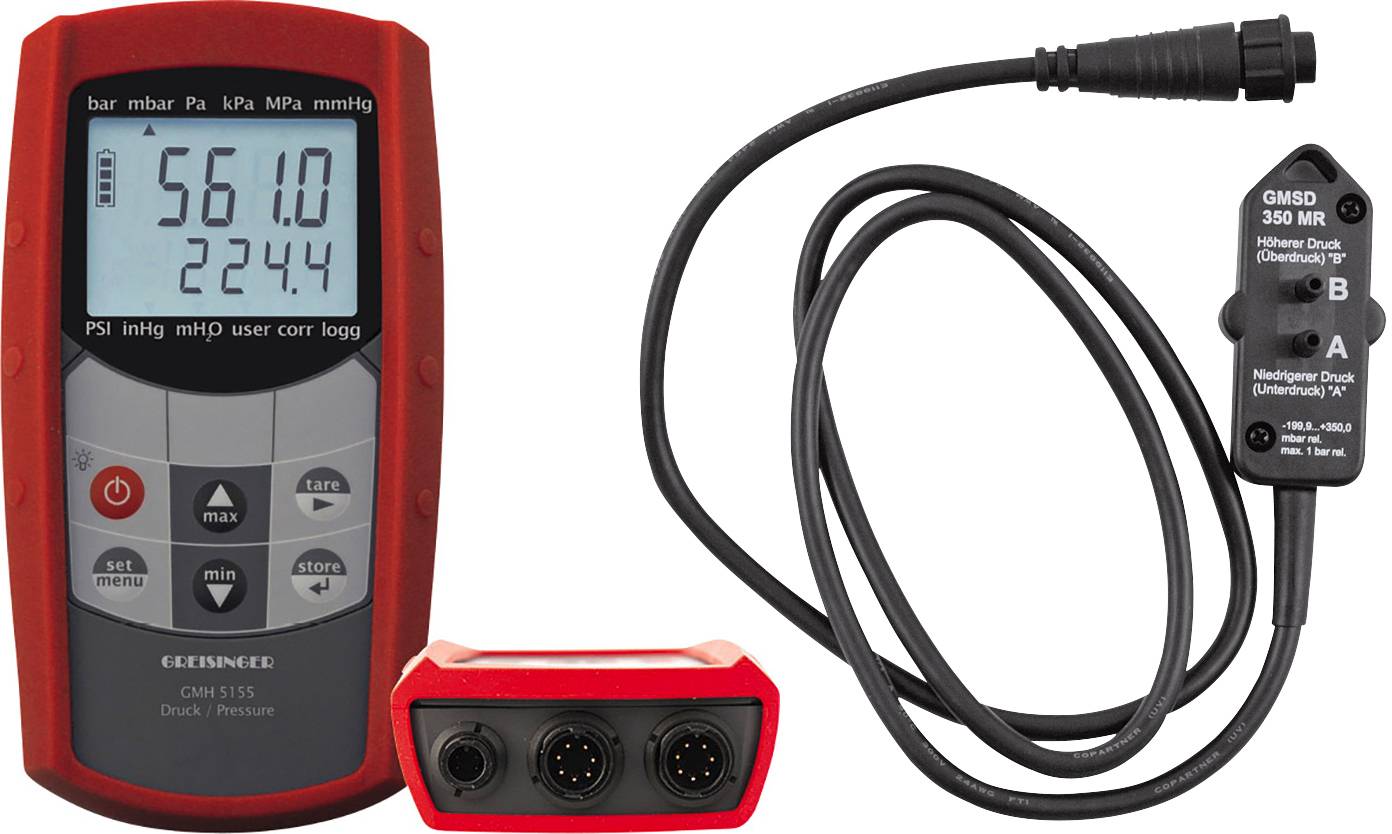

Greisinger GMH5155+GMSD-350MR-K51 Pressure gauge Calibrated to (ISO standards) Air pressure 0 - 1000 bar Datalogger func
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Greisinger 603930-5 Pressure gauge 1 pc(s)
- 2 sensor connections
- Analogue output.
- Data Loggers
Technical specifications
- Sensor connections: 2
- Usable sensors: GMSD / MSD sensors, available measuring ranges (resolution) from -1.999 … 2,500 mbar (0.001 mbar) to 0 … 1000 bar (1 bar)
- Max. Display range: -19999 ... +19999 digit
- Display units: * depending on the measurement range selection (sensor dependant): Mbar, bar, Pa, kPa, MPa, mmHg, inHg, PSI, mH2O
- Measurement frequency: 4 measurements / s or 1000 measurements / s.
- Mean value filter: Adjustable: 1 ... 120 sec.
- Accuracy: ± 0.1 % FS ± 1 digit
- Sensor connection: 1x 7-pin Bayonet connection
- Output: 4-pin Bayonet connection for serial interface
- Display: 4 ½ digit 7-segment, illuminated (white)
- Working conditions: -25 ... 50 °C, 0 ... 95% RH (not dew)
- Storage temperature: -25 ... 70 °C
- Power supply: 2 x AAA batteries, battery life 500 h (without lighting, 4 measurements / s)
- Housing: Shock-resistant ABS, with installation/suspension bracket
- Protection class IP65/IP67
- Dimensions 160 x 86 x 37 mm (H x W x D) incl. silicone protective cover (red)
- Data logger: Yes
- Analogue output: Yes
- Power supply (details)
2x AAA battery
- Product type
Pressure gauge
- Reading range
0 - 1000 bar
- Unit of measurement
Air pressure
- Pneumatic connection
External Sensor
- Reading range
-1.999 mbar up to 1000 bar
ISO standards
- Print resolution
0.001 mbar
- Sensor
7-pin. Bayonet connection
IP65/67
- Dim
(L x W x H) 37 x 86 x 160 mm
- Weight
370 g
- Features
Datalogger function
- Accuracy
0.1 %
- Calibration service
3 suitable calibration values in the measuring range of the respective device
- Reading range (max.)
1000 bar
- Reading range (min.)
0 bar
- Width
86 mm
- Height
160 mm
- Length
37 mm
Documents & Downloads
Datasheet
Datasheet 2176652 Greisinger GMH5155+GMSD-350MR-K51 Pressure gauge Calibrated to (ISO standards) Air pressure 0 - 1000 bar Datalogger func
User & Safety Instructions
User & Safety Instructions 2176652 Greisinger GMH5155+GMSD-350MR-K51 Pressure gauge Calibrated to (ISO standards) Air pressure 0 - 1000 bar Datalogger func
Information
Information 2176652 Greisinger GMH5155+GMSD-350MR-K51 Pressure gauge Calibrated to (ISO standards) Air pressure 0 - 1000 bar Datalogger func
Description
The hand-held measuring device for changing sensors supports you with demanding pressure measurement tasks. Extremely robust plug connections, the silicone protection cover, background lighting and the waterproof construction also permit the use in harsh industrial and field conditions.
This text is machine translated.
This text is machine translated.
Features
- Auto-Off-Function
- Battery status indicator
- Hold function
- Min./max. value memory
- Tare function
- Peak-detect (peak value memory)
- Offset/slope correction
- Min/max alarm
- Logger function
- Summation function
- Real-time clock
Scope of delivery
- Batteries
- Operating instructions
- Protective sleeve
- PRESSURE SENSOR GMSD-350MR-K51
Hints
Please note the sample calibration certificate stored under "Downloads" for the scope of the calibration. Your right to cancel does not apply to this product.
