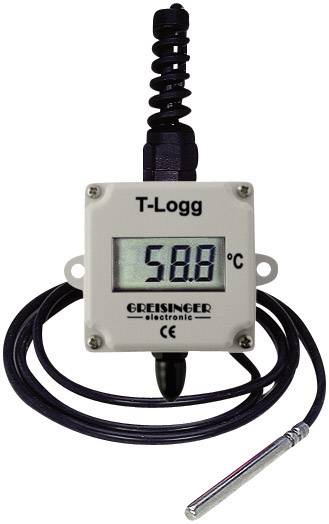

Greisinger T-Logg 100 E Temperature Data Logger
EAN:
Part number:
Item no:
Total (€ 259.00 / piece)
€ 259.00
incl. VAT
14-day return policy included
Highlights & Details
Greisinger Temperature Logger T-LOGG100-E.
- Temperature range -20 to +120 °C
- External sensor with VA-pipe
- Storage for 16000 measurement values
Technical specifications
- Product type
Temperature data logger
- Unit of measurement
Temperature
- Temperature resolution
0.1 °C
- Temperature reading range (min.)
-25 °C
- Temperature reading range (max.)
120 °C
- Sampling interval
2 s - 5 h
- Memory
16000
Manufacturer's standards (no certificate)
- Power supply (details)
Button cell (CR2032)
- Battery life
>3 years (with a 15 min. recording rate)
- Sensor
External
- Dim
(L x W x H) 49 x 49 x 36 mm
- Casing
ABS
- Temperature reading range
-25 up to 120 °C
- Air pressure accuracy
-
- Temperature accuarcy (details)
± 0.5°C
- Sample rate (max.)
5 h
- Sample rate (min.)
2 s
- Width
49 mm
- Height
36 mm
- Length
49 mm
IP65
- Memory (readings)
16000
- Power supply
CR 2032 button cell (1x)
- Reading accuracy temperature
0.5 °C
- Type
T-Logg 100 E
- Temperature
-25.0 to +120.0 °C
- Humidity reading range
-
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 102375 Greisinger T-Logg 100 E Temperature Data Logger
Description
The Logger T-Logg 100 is designed as a cost-efficient solution for monitoring temperatures. It enables an individual programming of the recording time. The last 16,000 measuring values can be stored in the memory. In addition, the LCD-display indicates both the temperature measured at the moment and the operating status of the logger.
Features
- Measurement interval: 2 s - 5 h
- Alarm limits and alarm delay can be programmed via the interface
- 1 m silicone sensor line
- Storage modes: Fill/endless.
Scope of delivery
- Battery
- User manual.
System requirements
- The USB interface of your PC is used to program, start and read out the T-Logg.
For this following accessory is required:
- Interface converter USB 100 or USB 100 SL for direct connection to the USB port of the PC,cable length approx. 1m.
- MINISOFT software (version 7.18 or later / free of charge) to start the logger and read out the logger data. Notice: It’s also possible to use the T-Logg with the comprehensive software GSOFT 40K (version 7.18 or later).
